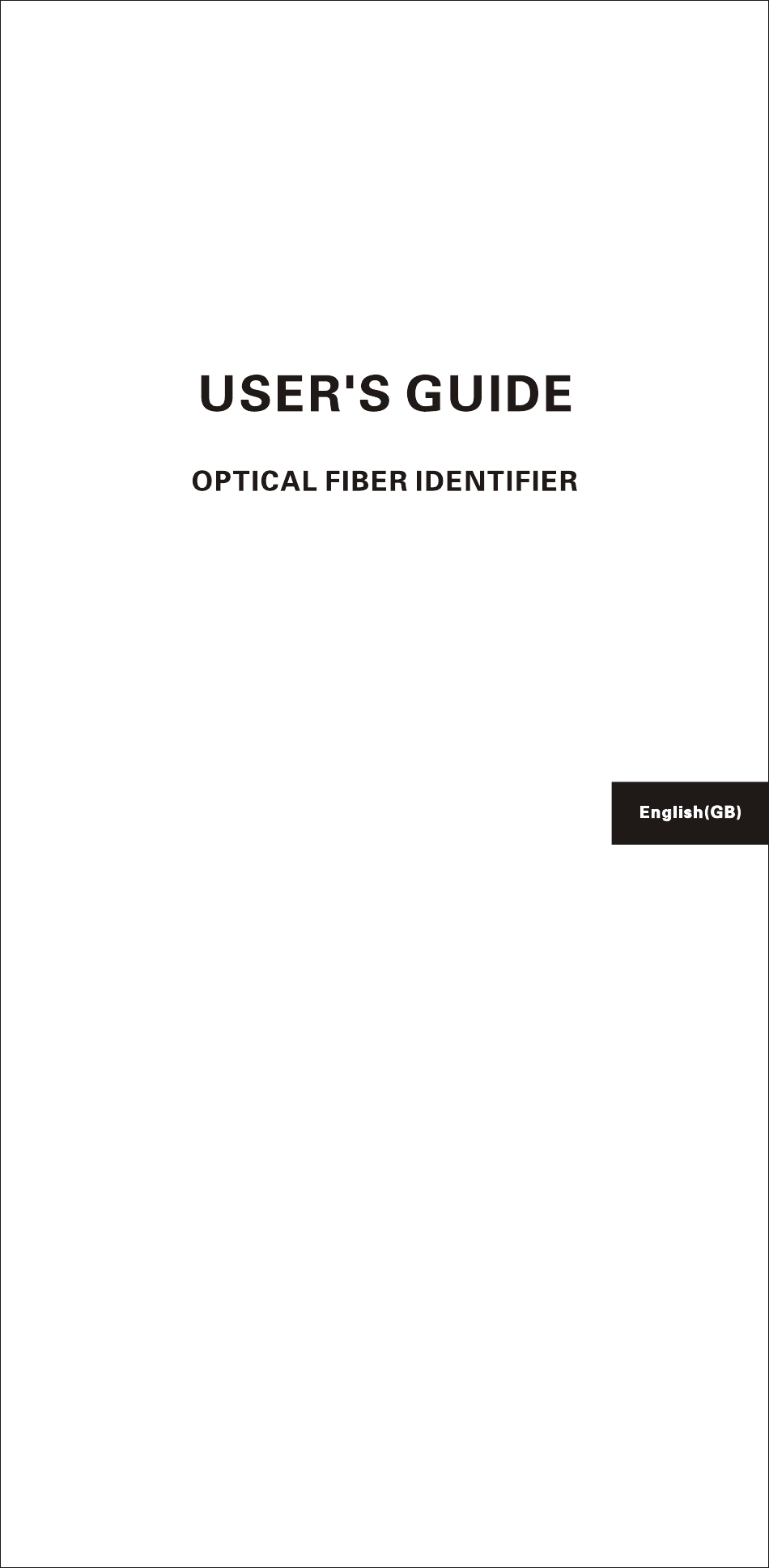

Summary of Contents for TriBrer AFI430
- Page 2 WARNING WARNING You are cautioned that changes or modifications not espressly approved in this document could void yout authority to operate this equipment. To reduce the risk of fire or electric shock,do not expose this apparatus to rain or moisture. To avoid electrical shock, do not open the cabinet.
- Page 3 Description 1-Fiber location 2-Left indicative led 3-Power key of visual fault locator and optical power meter 4-Trigger of the fiber identifier 5-Right indicative led 6-Power indicative led 7-Calibration button 8-Connector of OPM/VFL ( optional )
- Page 4 Battery set Warning:At the same time, can not use different style and different capacitance batteries. 1.Push the tip 2.Open the battery slot 3.Replace the batteries 4.Close the battery slot...
- Page 5 Availaber for different Fiber 1.Available for 800nm~1700nm laser signal 2 Based on non-destructive technology 3 No need to replace the clamp block for different fiber 250um bare fiber 900um fiber 2.5mm patch cord 3mm patch cord Availaber for different Fiber Silver indicative line When testing 2.5mm and 3.5mm patch cord, the silver indicative line need to be seen to ensure a correct...
- Page 6 Fiber Identifier with OPM mode with VFL mode AFI430 serial has three models, include standard Optical Fiber Identifier, Optical Fiber Identifier with OPM mode and Optical Fiber Identifier with VFL mode. Different models with different buttons, which shown in the pictures above.
- Page 7 Environment Light Calibration Calibration button Push down the trigger of the fiber identifier and hold, then long press the button. Until the beep be on and the the screen shows "CAL", the environment light calibration is finished.
-
Page 8: Operation
Operation Put the fiber into the fiber location and push down the trigger to begin testing. After 1~3 seconds, it output the results. The data in the LCD means the signal intensity, if the power value is over +5dBm, it will be "HI", if the value is less than -40dBm, it will be "LO". -
Page 9: Signal Direction
Signal Direction Right to left Left to right It is the main function to test the direction of the signal in the fiber. When signal is transporting in the fiber, the corresponding indicative led will be on. -
Page 10: Optical Power Meter
Optical Power Meter Power key Laser source wavelength switch key When the optical fiber identifier has OPM mode, press key to turn on the device, short press ON/OFF ON/OFF to select the laser source wavelength. Open the cap in the bottom of the device and connect the fiber correctly, the device will calculate the power value automatically. -
Page 11: Visual Fault Locator
Visual Fault Locator GLINT >2s SAVE >2s SAVE Power key Glint key When the optical fiber identifier has VFL mode,press key to turn on the device, press again to shut ON/OFF down. Open the cap in the bottom of the device, and press the key to open or close the flash laser. -
Page 12: Power Saving
Power saving Optical Fiber Identifier >2s SAVE >2s SAVE Power key Press to turn on the optical power meter or visual ON/OFF ON/OFF fault locator with auto power off( After 10 minutes no key pressed, it will auto power off. Press the key for 2 seconds when turn on the ON/OFF... - Page 13 Low power detecting Optical Fiber Identifier >2s SAVE >2s SAVE Low power indicative led When the power indicative led turns to red, it means low battery energy, please replace the batteries, otherwise the device will auto power off.
-
Page 14: Maintenance And Calibration
Maintenance and calibration Routine attention 1.Fiber-optical adapter should keep clean. 2.Please store the device in dry and ventilated place. 3.The long period no use , please take out the batteries. Common malfunction Handle way Handle way Described Described Malfunction cause Malfunction cause No battery Check battery setting... - Page 15 Detailed parameter 250um fiber@1550nm=-35dBm 250um fiber@1310nm=-30dBm Accuracy-CW 900um fiber@1550nm=-35dBm 900um fiber@1310nm=-30dBm 2.5mm fiber@1550nm=-30dBm 2.5mm fiber@1310nm=-25dBm Max. Input +5dBm Detector Type InGaAs Wave respond 800nm~1700nm <2.5dB typical value Insertion Loss Frequency Identify 270Hz/1KHz/2KHz Fiber Type 250um/900um/2.5mm/3mm fiber Sound Warn Optical Power Meter 850nm,1300nm,1310nm,1490nm,1550nm,1625nm Calibration Wave Accuracy...
