Focus HDS-Plus Assembly Instructions

FOODSER VICE, LLC
Two people required for assembly. Read All Instructions & Tips before assembly.
2

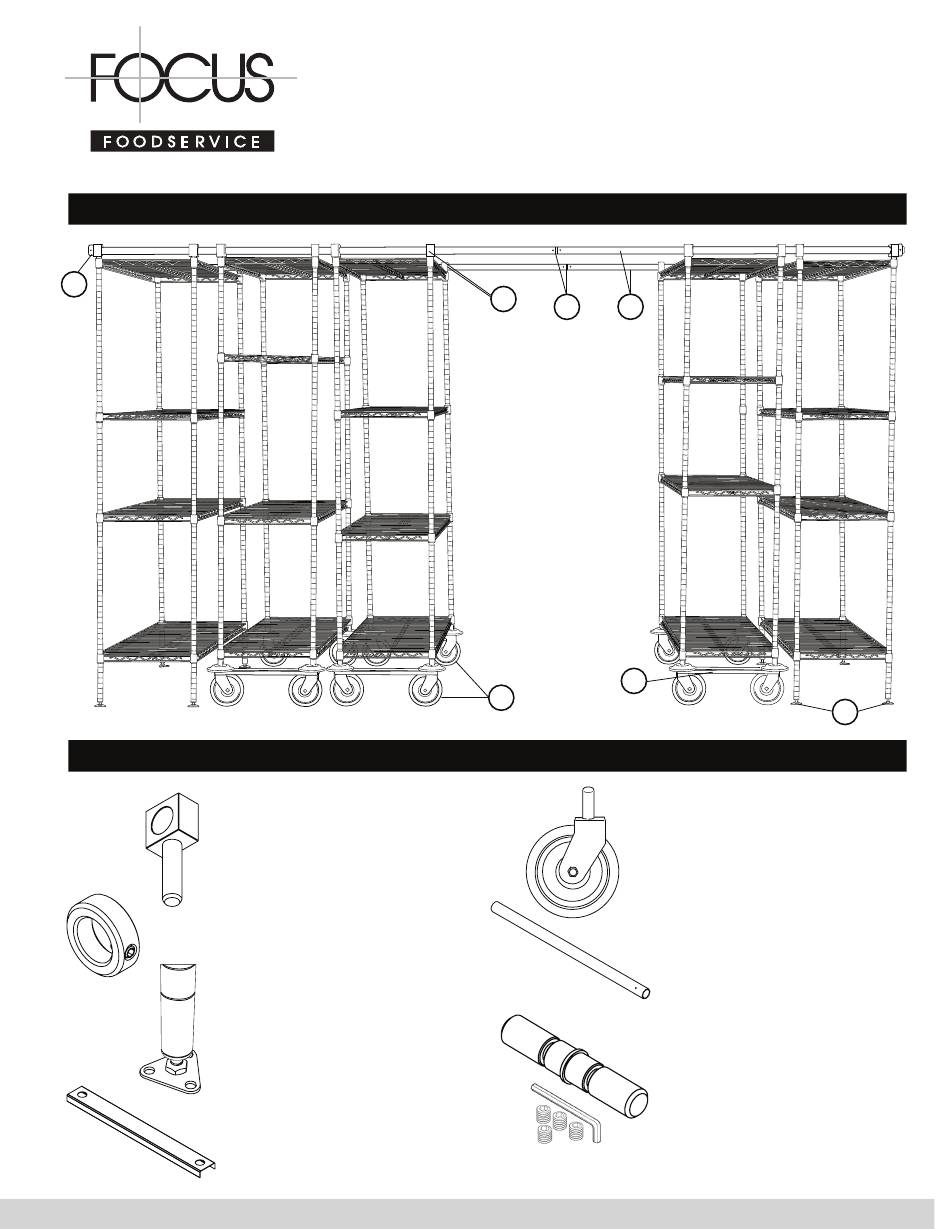

Core HDS-Plus™ System Components (Full Component Checklist located at end of document)
FTSGB
1.
tops of posts to guide mobile units
on track.
FTSLC
2.
Used on stationary units to lock in
track position. Each set of collars
includes (1) allen wrench
FTSFZ
3.
Used to anchor stationary units to
the floor.
FTSU18, FTSU21,
4.
FTSU42
Aligns casters on mobile units.
HDS-Plus™ High Density Storage System
(Guide Blocks) Used at
(Locking Collars)
(Triangular Security Feet)
(Caster Channels)
ASSEMBLY
INSTRUCTIONS
1
7 6
4
5
5.
6.
7.
3
FTSC6
(6" Casters w/ Bumpers) -
Smooth rolling casters for
mobile units. Bumpers prevent
collision of units.
FTST2, FTST3, FTST5
(Stainless Steel Track Tubing)
Used at tops of units to allow
movement of mobile units on track.
FTSJ2
(Track Joiner Connectors)
Each set includes (2) Track Joiner
Connectors, (1) allen wrench and
(2) sets of (4) stainless steel hexhead
set screws to be used to connect
each track tube. {FTST2, FTST3, FTST5}.
