EXTRUSION UNIT 12-20 KG / PUMPLYFT 12-20 KG
PART NO. / ART.NR. 26742
TECHNICAL DATA / TEKNISKA DATA
TECHNICAL DATA
Maximum Air pressure
Minimum air pressure
Maximum grease delivery
Air inlet thread
Grease outlet thread
Pump tube diameter
Overall height
Overall width
Overall depth
General

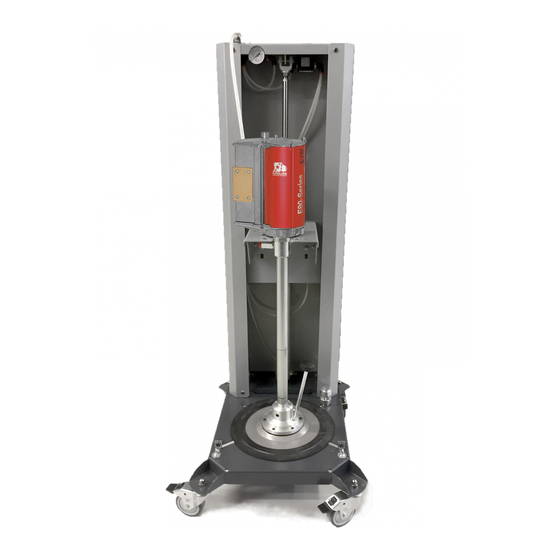

Low pressure air powered portable grease pump unit. This machine, supplied with all the components needed for its
operation, has been designed to be as mobile as possible and due to its pneumatic operated follower plate, keeps
always the pump primed, making use of the compatible pails, diameter between 260 - 298 mm (10,2 - 11,7 inches),
and a maximum of 400 mm (15.75") height (12-20 kg).
The included pump is a 60:1 ratio. This piston reciprocating pump allows pumping all types of greases, and it is
suitable for facilities with long length piping and several simultaneous grease outlets.
In case of having acquired the unit (18200), it includes a 3 m length high pressure grease hose, a grease control gun
with rigid stem, 3 jaw connector and a Z swivel.
The recommended use of this equipment under normal conditions is with greases up to NLGI-3.
Allmänt
Lågtryck luftdriven mobil fettpumpenhet. Denna maskin, som levereras med alla komponenter som behövs för driften,
har konstruerats så att den är så mobil som möjligt och tack vare sin pneumatiska styrplatta, hålls pumpen alltid
primad, med användning av de kompatibla hinkarna, diameter mellan 260 - 298 mm (10,2 - 11,7 tum) och högst 400 mm
(15,75 tum) höjd (12-20 kg).
Den medföljande pumpen har förhållandet 60:1. Denna kolv-pump möjliggör pumpning av alla typer av smörjmedel,
och den är lämplig för anläggningar med långa rörledningar och flera fettutlopp.
Vid förvärv av enheten (18200) ingår en 3m högtrycksfettslang, en fettventil med fast utloppsrör, 3-backschuck och en
Z-svivel.
Den rekommenderade användningen av denna utrustning under normala förhållanden är med smörjmedel upp till
NLGI-3.
TEKNISKA DATA
Maximalt lufttryck
Minimalt lufttryck
Maximal fettleverans
Inloppsluft gänga
Fett utlopp gänga
Pump slang diameter
Höjd
Bredd
Djup
www.eurolube.com
10 bar (140 psi)
4 bar (58 psi)
1000 gr/min (@ 7 bar)
1/2" BSP (F)
3/8" BSP (F)
30 mm
1202 mm
448 mm
613 mm
1
205139
EUROLUBE EQUIPMENT
