Janome MC11000 Quick Start Manual

Hide thumbs Also See for MC11000:

1, 2

Updating to Jump Thread Trim Mechanism

Brush

Connector

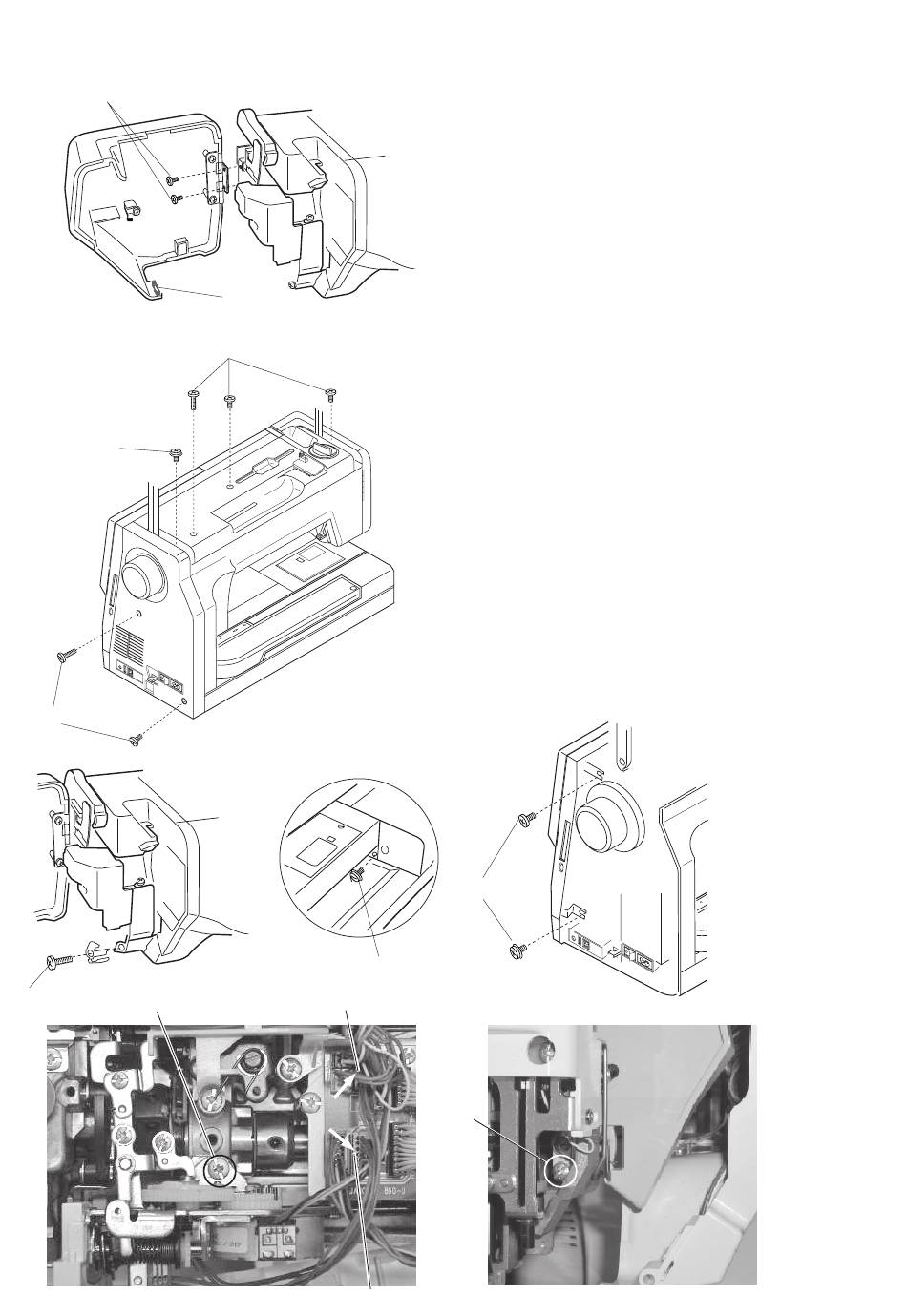

1. Remove the 2 setscrews (A) and remove the face plate.

2. Attach the new face plate (with a brush) and secure it with

the setscrews.

1. Remove the 3 setscrews (B) and remove the top cover.

2. Remove the 2 setscrews (C) and loosen the setscrew (D),

Remove the belt cover.

3. Remove the setscrew (E) and loosen the 3 setscrews (F) to

loosen the front cover for easy removal of the tension unit.

4. Disconnect the 2 connectors from the board-U. Remove the

2 setscrews (G) and remove the tension unit.

Table of Contents

Do you have a question about the MC11000 and is the answer not in the manual?

Page 1 Updating to Jump Thread Trim Mechanism Replacing the face plate 1. Remove the 2 setscrews (A) and remove the face plate. 2. Attach the new face plate (with a brush) and secure it with the setscrews. Brush Removing the tension unit 1, 2 1.
Page 2 Replacing the thread guard Remove the setscrew (H) and remove the thread guard. Attach the new thread guard plate and secure it with the setscrew (H). Thread guard New thread guard plate Replacing the tension guide cover 1. Remove the 2 setscrews (J) and remove the tension guide cover.
