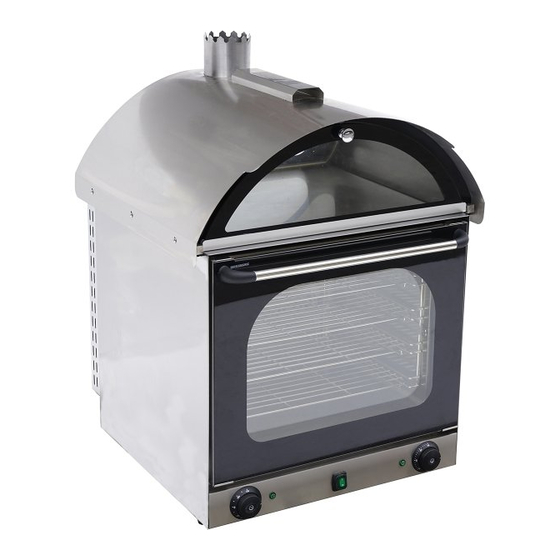

- Page 1 YSD-1A-TD Potato Oven User’s Manual Thank you for purchasing this range of appliance of our company. To ensure proper operation, please read this manual carefully before...
- Page 2 using. After reading, keep this manual in a convenient place for further reference. This user’s manual is not applicable to persons who are mentally handicapped, or lack of related experience and knowledge (including children). Warning! ! This appliance is not designed for people who are mentally disordered (including children), unless the operation is supervised or helped by people who are responsible for the safety of the operator.
- Page 3 A． Structure，Function，Application B． Product parameters C． Installation requirements D． Operation E． Maintenance F． Circuit diagram G． Product Trouble Shooting Method A. Structure，Function，Application a. Structure （a）The outer structure of this appliance is made up of the upper thermal retardation and lower heated air circulation electric oven.
-
Page 4: Product Parameters
b. Function (a) Thermostat “A” controls the lower part temperature. (Note: This appliance possesses heated air circulation function; the cooked food could be evenly heated). (b) Thermostat indicator light “B” shows the working situation of the lower part. (c) Switch “C” controls the power of the upper part heat lamp. (d) Timer indicator “D”... -
Page 5: Installation Requirements
Voltage 220V~240V Power 2.67kW+0.2kW Frequency 50/60Hz Interior dimension 460×380×360H(㎜) Outer dimension 652×640×895H（㎜） Weight 42kg Temperature range of 50℃~300℃ lower interior Time control range of 0~120 Minutes lower part C. Installation requirements All the electrical and circuit installation should be operated by qualified electrician according to safety standards. -
Page 6: Operation
(c) Please install a double-pole switch between appliance and power cord, during ±10%. operating, the voltage error should not beyond Note: The appliance must be earthed well The connection of power cord (a) Use a proper screwdriver to fix the electric cable (b) Connect the power cord according to the connecting picture (c) Warning: 1. - Page 7 (b) The lower automatic thermostatic controller could be regulated between 0~300℃. (c) Rotate the knob clock wisely to the required temperature, the temperature indicator lights up. (d) After reaching the required temperature, the indicator lights out, the work started (this process is automatic cycled). (e) Turn on the switch on the control panel, to start the upper warmer cabinet heating lamp.
-
Page 8: Maintenance
！When initially operating the appliance, it may have smoke due to the humidity of the appliance or oil; you can rotate the knob to the position of 200°C (400°F) and let the appliance run without any food for 1 hour. And then it can be normally used after smoke and odor dissipated. -
Page 9: Circuit Diagram
To ensure the good heating ventilation, there should be distance at least 4cm between each tray, and there should not be too much food in the tray. Attention: ！Do not use water jet to clean this appliance! F. Circuit diagram θ... - Page 10 Check whether the over-temperature protector disconnected or not.( This appliance has a over-temperature protector) 330℃ e. Heating lamp does not function: Check if the heating lamp has burning-out. In case the above methods could not solve the problems, contact and call us to consult and report for repair.
