8000 BTU 4-IN-1 PORTABLE AIR CONDITIONER
ITEM: 99913
OWNER'S MANUAL AND SAFETY INSTRUCTIONS
SAVE THIS MANUAL: KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY,
OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT'S
SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM (OR MONTH
AND YEAR OF PURCHASE IF PRODUCT HAS NO NUMBER).
FOR QUESTIONS PLEASE CALL OUR CUSTOMER SUPPORT: (909) 628 0880 MON-FRI 9AM TO 3PM PST

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8000 BTU and is the answer not in the manual?

Questions and answers

Summary of Contents for Barton 8000 BTU

  • Page 1 8000 BTU 4-IN-1 PORTABLE AIR CONDITIONER ITEM: 99913 OWNER’S MANUAL AND SAFETY INSTRUCTIONS SAVE THIS MANUAL: KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY, OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT’S SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM (OR MONTH AND YEAR OF PURCHASE IF PRODUCT HAS NO NUMBER).
  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION GENERAL SAFETY WARNINGS Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. SAFETY The warnings, precautions, and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur.
  • Page 3 IMPORTANT SAFETY INFORMATION NEVER hit or shake the unit to prevent damage. NEVER spray water or place the unit near water to prevent electric shock. NEVER place the unit near gas appliances, fire or flammable liquids. Two or more people to move or install air conditioner. DO NOT let children play near the unit.
  • Page 4: Product Features

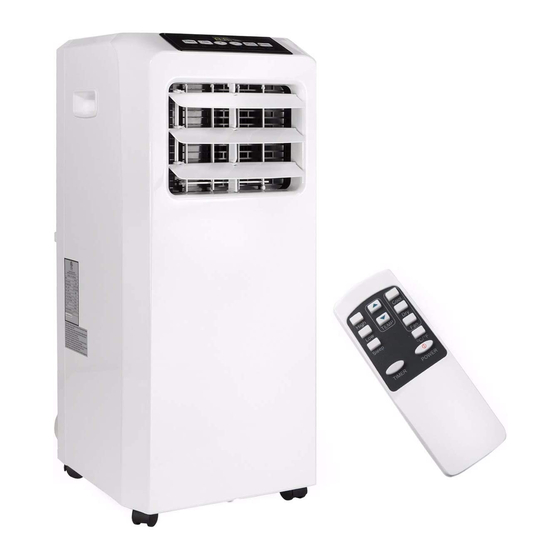

    PRODUCT FEATURES The Barton Portable 8,000 BTU Air Conditioner cools, circulates, and dehumidifies the air in your home. With 3 speed settings, you can adjust the settings to personalize your comfort. This portable air conditioner is designed to cool a single room up to 250 square feet. It is self-evaporating, so you empty the water less often and has a washable permanent mesh filter, so you won’t be running out to buy more.
  • Page 5 DIAGRAM...
  • Page 6: Operation

    OPERATION ON/OFF TIMER MODE UP BUTTON DOWN FAN SPEED BUTTON BUTTON BUTTON BUTTON SLEEP WATER-FULL TIMER FAN SPEED DEHUMIDIFY COOL FAN MODE MODE INDICATOR INDICATOR INDICATOR MODE MODE INDICATOR INDICATOR TIMER POWER INDICATOR CELSIUS/ REMOTE INDICATOR DISPLAY FAHRENHEIT CONTROL WINDOW TEMPERATURE SIGNAL INDICATOR...
  • Page 7 OPERATION 5. Adjust temperature: The temperature can be set within a range of 62.6-86°F (17-30°C) under cooling mode. Press “+” or “-” buttons to increase or decrease the temperature 1.8°F (1°C) by pressing once. Press buttons together to convert Celsius degrees and Fahrenheit degrees and corresponding indicator will light up.
  • Page 8: Multiple Protection Functions

    OPERATION Remote Control Operation: Power Button: Press this button to start unit when it is energized or stop the unit when it is in operation. Timer Button: Press this button to set unit automatic on and off time. High Button: Press this button to select high speed of fan running (except dry and sleep modes).
  • Page 9: Installation

    INSTALLATION Handling and Transportation: 1. Handle and move the unit Hold handles on side panels to move the unit in upright position. Make the unit in the upright position whatever handling or moving it. Drain the water in the unit completely to prevent water leakage and wet the floor or carpet before handling or moving the unit.
  • Page 10 INSTALLATION 1. Take two ends of exhaust hose and its adapter assembly. 2. Put front end of exhaust hose assembly onto jugged position of exhaust outlet of back panel. 3. Keep the right direction of slant side A of adapter, for ease installation of window seal-plate. 4.
  • Page 11: Drainage Instruction

    INSTALLATION Slide the adapter downwards and assure the adapter installed in good position. Lock the screw tightly to avoid fall off. Exhaust hose can’t be bent or with flexure higher than 45 degrees, in order to keep good ventilation of exhaust hose. NOTE: The exhaust hose is 280mm-1500mm long and which is determined by the specification of the air- conditioner (s).
  • Page 12: Maintenance

    MAINTENANCE Continuous drain: 1. Screw off the drain cover and unplug the water stopper. 2. Connect drain-hole with φ13mm PVC drain hose, as deep as possible to avoid leakage. 3. Pull the drain hose to bathroom or outdoor. Drain hose must be installed before unit starts working. Keep the drain cover and its stopper properly installed when continuous drainage is adopted.
  • Page 13 MAINTENANCE Maintenance and Service: Turn off the unit and pull out the plug before maintain or send the unit to service center. 1. Surface cleaning: Clean the unit surface with wet and soft cloth, but do not use chemical solvents such as alcohol and gasoline to avoid any damage to unit.
  • Page 14: Troubleshooting

    TROUBLESHOOTING SCHEMATIC DIAGRAM FUSE PARAMETERS Model: FSD or 50F Voltage: 250V Current: 3.15A This marking indicates that the product should not be disposed with other household wastes throughout the world. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.
  • Page 15: Parts List

    PARTS LIST...
  • Page 16 PARTS LIST...
  • Page 17: Warranty

    WARRANTY PLEASE READ THE FOLLOWING CAREFULLY THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT.
