  • Page 1 www.rtsradio.co.za +27 (0) 61 015 0000...

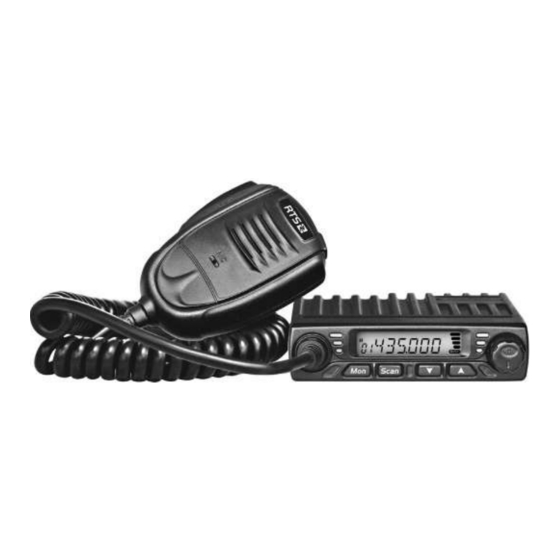

  • Page 2 DV 2066S/2135S/2400S Series Mobile Radio...

  • Page 4: Table Of Contents

    INHOUD FUNKSIES EN KENMERKE ..........1 BYBEHORE ................2 VOORAF INSTALLASIE ............3 RAAK VERTROUD ..............10 BASIESE UITVOERINGS ............12 KORTPAD UITVOERINGS ............13 PROBLEEM OPLOSSING .............15 SPESIFIKASIES ..............16...

  • Page 5: Funksies En Kenmerke

    1. FUNKSIES EN KENMERKE DV2135S/2400S Mobiele Radio het ‘n geharde omhulsel en het stabiliteit, gevorderde en betroubare funksies, perfek en waardevol. Hierdie kommersiële mobiele radio is veral ontwerp vir bestuurders en dit streef na die maatskappy se filosofie van innovasie en praktiese gebruik.

  • Page 6: Bybehore

    2. BYBEHORE 2.1 Standaard Bybehore Mikrofoon Hakkie Monteringsraam Sekering(5A 250V) Verstelbare skroewe Wassers Skroewe Handleiding 2.2 Optionele Bybehore Kragbron Programmeringskabel Antenna 8 Ohm luidspreker...

  • Page 7: Vooraf Installasie

    3. AANVANKLIKE INSTALLASIE 3.1 Mobiele Installasie Om  die   radio te installeer,     kies   veilige en     gerieflike   plek   binne u     voertuig wat gevaar vir u passasiers en uself verminder terwyl die voertuig in beweging is. Oorweeg dit om die eenheid op 'n gepaste plek te installeer sodat knieë...
  • Page 8 3.2 Installeer Mikrofoon Hakkie 1. Kies die ideale plek en maak 'n merk vir 'n skroef punt. 2. Sit die hakkie vas d.m.v die skroewe in die bykomstighede-sakkie. 3.3 KRAG KONNEKTASIE » Koppel die kragtoevoer aansluiting so naby as moontlik aan die radio .
  • Page 9 Om die risiko van 'n kortsluiting te vermy, konnekteer die kabels op die batteryterminale heel laaste. Bevestig die korrekte polariteit van die konneksies, konnekteer dan die kragkabel op die battery terminale; die rooi draad op die positiewe (+) terminaal en die swart draad op die negatiewe (-) terminaal •...
  • Page 10 Basis stasie operasie Om die radio vir 'n basis stasie te gebruik, benodig u 'n afsonderlike 13.8VDC kragbron (POW-106BB - nie ingesluit nie) . Kontak asb u naaste handelaar. Ons beveel aan dat die stroom kapasiteit van u kragbron minstens 10A is. Koppel die kragkabel op die gereguleerde kragbron en maak seker dat die polariteite korrek is.
  • Page 11 3.4 Sekering Vervanging Hierdie radio benodig minstens 'n 5A, 250V sekering. Indien die sekering blaas, bepaal die oorsaak, herstel die probleem en vervang die sekering. Indien 'n nuwe radio installasie heeltyd sekerings blaas, ontkoppel die kragkabel en kontak u naaste goedgekeurde handelaar of dienssentrum.
  • Page 12 3.5 Antenna Konnektasie Voordat die radio gebruik kan word, installeer eers 'n doeltreffende, goed ingeskakelde antenna. Die sukses van u installasie sal grootliks afhang van die tipe antenna en sy korrekte installasie. Die radio sal uitstekend werk indien die installasie van  ...
  • Page 13 »Die eksterne spreker benodig 'n dubbele BTL poort, wees asseblief versigtig met die verbindingsweg . Die spreker kan nie met die grond verbind word nie, anders sal die spreker foutief wees. Beskou die volgende prentjie as 'n voorbeeld om NIE die eksterne spreker te koppel NIE. Fout SP-01 Grond...

  • Page 14: Raak Vertroud

    4. RAAK VERTROUD 4.1 Voorste paneel Scan Basiese Funksies Knop Funksie Monitor knop Scan Skandeer knop Kanaal verhoog Kanaal verminder Aan/af skakelaar en volume knop RX indikator Liggie aan as squelch reg is TX indikator Liggie aan gedurende TX LCD vertoning Vertoon kanaal / frekwensie / funksie Spreker Luister na inkomende oproepe...
  • Page 15 4.2 Agterste Paneel Knop Funksie Antenna Konnekteer  ’n  50Ω  antenna    konnektasie Eksterne Spreker Konnekteer opsionele SP01 eksterne spreker prop Konnekteer ‘n standard DC kragkabel Kragkabel...

  • Page 16: Basiese Uitvoerings

    5. BASIESE OPERASIONELE FUNKSIES 5.1 Skakel Radio Aan/af Wanneer die radio aan 'n kragbron gekoppel is, druk die VOL knop in om die radio aan te skakel. Hou die VOL knop ingedruk vir 2 sekondes om die radio weer af te skakel. 5.2 Krag spanning vertonings funksie Wanneer die radio aangeskakel is, druk die VOL knop eenmali g om die huidige stroomspanning op die LCD-skerm te vertoon.

  • Page 17: Kortpad Uitvoerings

    5.5 Ontvangs Wanneer die aktiewe kanaal 'n sein ontvang, dan vertoon die LCD- skerm die inkomende seinsterkte en 'n BUSY-ikoon . Die groen RX-aanduiding verlig en dan is die inkomende sein hoorbaar. » Indien die radio se squelch-vlak te hoog gestel is, dan kan dit veroorsaak dat inkomende seine nie opgetel word nie.
  • Page 18 6.2 Opstel van Squelch-vlak Hierdie funksie word gebruik om RX seinsterkte te stel, die inkomende sein sal slegs hoorbaar wees wanneer die ingestelde seinvlak bereik is, anders sal die radio stil bly. 1.Terwyl die [MON] knop ingehou word, druk die [UP] / [DN] knoppe of draai die VOL knop en die LCD-skerm sal die squelch-vlak vertoon.

  • Page 19: Probleem Oplossing

    7. PROBLEEM OPLOSSING Moontlike Oorsake en Potensiale NO. Probleem Oplossings + En - polariteite van kragaansluiting Krag is aan, niks dalk omgekeer. Verbind rooi lood tot vertoon op skerm plus terminaal en swart lei tot minus terminaal van DC kragbron. Kontroleer en los die probleem op wat Sekering is geblaas die sekering laat blaas het en vervang...

  • Page 20: Spesifikasies

    8. SPESIFIKASIES ALGEMEEN Frekwensiewydte VHF:136-174MHz; UHF:400-490MHz Hoeveelheid kanale 199 kanale Kanaal Spasiering 25KHz(Wye Band); 12.5KHz(Noue Band) Phase-locked Step 2.5K,5K,6.25K,10K,12.5K,20K,25K,30K,50K 13.8V DC ±15% Werkbare Volts Squelch Draer/CTCSS/DCS Frekwensiestabiliteit ±2.5ppm Werkbare Temperatuur -20~+60C Dimensies 104x109x25mm Gewig 0.43kg SENDER Wye Band Noue Band Sensitiwiteit (12dB SINAD) ≤0.25μV ≤0.35μV...
  • Page 22 CONTENTS FUNCTIONS & FEATURES ...........1 ACCESSORIES ..............2 INITIAL INSTALLATION ............3 GETTING ACQUAINTED ............10 BASIC OPERATION ..............12 SHORTCUT OPERATION .............13 TROUBLE SHOOTING ............15 SPECIFICATIONS ..............16...

  • Page 23: Functions & Features

    1. FUNCTIONS & FEATURES DV2135S / 2400S Mobile Radio has a hardened casing and stability, advanced and reliable features, perfect and valuable. This commercial mobile radio is especially designed for drivers and it strives for the company's philosophy of innovation and practical use. More functions as follows: • ...

  • Page 24: Accessories

    2. ACCESSORIES 2.1 Standard Accessories Fuse(5A 250V) Install bracket Radio User Manual Microphone Hanger non-slip mat Pads Screws Adjusting screws 2.2 Optional Accessories Regulated Power PC cable Car Antenna 8 ohm speaker...

  • Page 25: Initial Installation

    3. INITIAL INSTALLATION 3.1 Mobile Installation To install the transceiver, select a safe, convenient location inside your vehicle that minimizes danger to your passengers and yourself while the vehicle is in motion. Consider installing the unit at an appropriate position so that knees or legs will not strike it during sudden braking of your vehicle.
  • Page 26 3.2 Install Microphone Hanger 1. Choose the ideal location and mark for screw points. 2. Fix the hanger by the screws in accessory list. 3.3 Power Connection » Locate the power input connector as close to the transceiver as possible. Mobile Operation The vehicle battery must have a nominal rating of 12VDC.
  • Page 27 In order to avoid the risk of short circuit, please cut down connection with negative (-) of battery, then connect with radio. Confirm the correct polarity of the connections, then attach the power cable to the battery terminals; red connects to the positive (+) terminal and black connects to the negative (-) terminal.
  • Page 28 Fixed Station Operation In order to use this transceiver for fixed station operation, you will need a separate 13.8V DC power supply (not included), power supply (POW -106 BB ) as optional accessories . Please contact local dealer to require. The recommended current capacity of your power supply is 10A.
  • Page 29 3.4 Fuse Replacement This radio needs at least 5A, 250V fuse. If the fuse blows, determine the cause, then correct the problem. After the problem is resolved, replace the fuse. If newly installed fuses continue to blow, disconnect the power cable and contact your autho- rized dealer or an authorized servicecenter for...
  • Page 30 3.5 Antenna Connection Before operating, install an efficient, well-tuned antenna. The success  of your installation will depend largely on the type of antenna and its correct installation. The transceiver will give excellent results if the antenna system and its installation are given careful attention. Use  a  50Ω  impedance  antenna  and  low-loss  coaxial  feed-line  that  has ...
  • Page 31 » External speaker uses a double port BTL. The speaker can not be connected to the ground as the speaker will not work in this way. Below is an example of how NOT TO connect an external speaker. Error SP-01 Ground...

  • Page 32: Getting Acquainted

    4. GETTING ACQUAINTED 4.1 Front Panel Scan Basic Function Knob Function Monitor key Scan Scan key Channel increase Channel decrease Power on/off and volume key RX indicator Light on when RX TX indicator Light on when TX LCD display Display channel / frequency / function setting Speaker Listen to calls Keep Pressing Follow Key...
  • Page 33 4.2 Rear Panel Knob Function Antenna Connect a 50Ω antenna   connector External Connect optional SP01 external speaker Speaker jack Power cable Connect a standard DC power cable...

  • Page 34: Basic Operation

    5. BASIC OPERATION 5.1 Switching The Power On/Off When the transceiver is switched off, press the VOL key to power on the transceiver. By holding the VOL key for 2 seconds, the transceiver powers off. 5.2 Power voltage display function When the transceiver is switched on, press the VOL button to  ...

  • Page 35: Shortcut Operation

    5.5 Receiving When the channel you are operating on is being called, the screen shows a BUSY       icon as well as           strength.           the receiving signal's green indicator lights and you will hear the incoming call.
  • Page 36 6.2 Squelch level Setup This function is used to set the RX signal strength, the incoming signal will only be audible when the set signal level is reached, otherwise the radio will remain silent. In standby, hold the [MON] key, then press [UP]/[DN] or turn the VOL knob, the LCD displays current squelch level.

  • Page 37: Trouble Shooting

    7. TROUBLE SHOOTING Possible Causes and Potential NO. Problem Solutions + and - polarities of power connection Power is on, nothing are reversed. Connect red lead to appears on Display plus terminal and black lead to minus terminal of DC power supply. Check and solve problem resulting in Fuse is blown the blown fuse and replace fuse with...

  • Page 38: Specifications

    8. SPECIFICATIONS GENERAL Frequency Range VHF:136-174MHz; UHF:400-490MHz Number of Channels 199 channels Channel Spacing 25KHz(Wide Band); 12.5KHz(Narrow Band) Phase-locked Step 2.5K,5K,6.25K,10K,12.5K,20K,25K,30K,50K Operating Voltage 13.8V DC ±15% Squelch Carrier/CTCSS/DCS Frequency Stability ±2.5ppm Operating Temperature -20~+60C Dimensions 109x104x25mm Weight TRANSMITTER Wide Band Narrow Band Sensitivity (12dB SINAD) ≤0.25μV...
