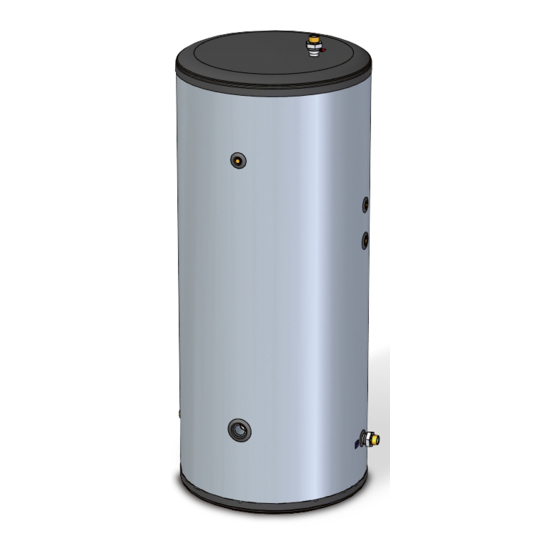

INSTALLATION AND OPERATING INSTRUCTIONS
SANIT S 500
SANIT S 750
SANIT S 1000
SANIT S 1000 SBH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sanit S 500 and is the answer not in the manual?

Questions and answers

Summary of Contents for DOMUSA TEKNIK Sanit S 500

  • Page 1 INSTALLATION AND OPERATING INSTRUCTIONS SANIT S 500 SANIT S 750 SANIT S 1000 SANIT S 1000 SBH...
  • Page 2 Thank you for choosing a DOMUSA TEKNIK product. From the range of DOMUSA TEKNIK products you have chosen the Sanit model, a stainless steel hot water tank for producing domestic hot water (DHW) by means of a coil, which together with a DOMUSA TEKNIK heating boiler will provide the ideal level of comfort for your home, provided it is accompanied by a suitable hydraulic installation.
  • Page 3: Table Of Contents

    ÍNDICE Pág. 1 PRECAUTIONS .................................. 2 1.1 F .................................... 2 ROST PRECAUTIONS 1.2 W ..................................2 ATER CHARACTERISTICS 2 LIST OF COMPONENTS ..............................3 3 INSTALLATION INSTRUCTIONS ..........................6 3.1 H .................................. 6 YDRAULIC INSTALLATION 3.2 L ......................................6 OCATION 3.2.1 Equipment / options ......................................
  • Page 4: Precautions

    The anti-freeze used must be compatible with public health regulations and it must not be toxic. DOMUSA TEKNIK recommends the use of propylene glycol, consulting the product manufacturer before use.
  • Page 5: List Of Components

    2 LIST OF COMPONENTS SANIT S 500 EP: Primary inlet. V: Drain socket. SP: Primary outlet. R: Resistance socket. ES: Domestic cold-water inlet. C: Recirculation socket. SS: Domestic hot water outlet. Sa: DHW tank temperature probe Tpr: Cathode protection connector...
  • Page 6 Sanit SANIT S 750 1. Bridge cover. SP: Primary outlet. EP: Primary inlet. ES: Domestic cold-water inlet. SS: Domestic hot water outlet. V: Drain socket. R: Resistance socket. C: Recirculation socket.
  • Page 7 SANIT S 1000 / 1000 SBH 1. Bridge cover. SP: Primary outlet. EP: Primary inlet. ES: Domestic cold-water inlet. SS: Domestic hot water outlet. V: Drain socket. R: Resistance socket. C: Recirculation socket.
  • Page 8: Installation Instructions

    Sanit 3 INSTALLATION INSTRUCTIONS 3.1 Hydraulic installation Sanit hot water tanks are prepared to be permanently connected to domestic water supply network, by means of DHW inlet. The maximum pressure admitted is specified in "Technical characteristics" chapter. The hydraulic installation must be made by qualified technicians, in compliance with current installation regulations and taking the following recommendations into account: - The secondary circuit (or domestic water circuit) is to be equipped with a safety valve, calibrated to a maximum of 0,7 MPa (7 bar).
  • Page 9: Equipment / Options

    250 mg/l, we recommend installing a cathodic protection inside the storage heater to avoid premature wear to the hot water tank. DOMUSA TEKNIK optionally supplies a suitable electronic cathodic protection for its range of storage heaters.
  • Page 10: 1" Dielectric Sleeves

    DHW pressure of 0,7 MPa (7 bar). To prevent this pressure from being exceeded, DOMUSA TEKNIK recommends fitting a safety valve to the DHW circuit, calibrated to a maximum of 0,7 MPa (7 bar). The safety valve will always discharge into a drain.
  • Page 11: Maintenance

    5 START-UP For the guarantee to be valid, the hot water tank must be started up by an Official DOMUSA TEKNIK Technical Assistance Service. Before starting it up, the following must be ensured: - The installation is filled with water and the draining has been done correctly.
  • Page 12: Draining The Tank

    Sanit 7 DRAINING THE TANK To drain the tank, Sanit S 500, 750, 1000, 1000 SBH, remove the brass plug, then connect a hose to the drain socket on the bottom of the tank. Check the hose is correctly connected to the tank drain socket.
  • Page 13: Spares List

    8 SPARES LIST 8.1 Hot water tank COMMONS SPARE PARTS SANIT S 1000 / SANIT S 750 1000 SBH Name Code Elliptical plug SCON000090 SCON000430 Bridge SPIN000006 M8 washer CTOR000080 M8 nut CTOR000092 Bridge cover SOPE000025...
  • Page 14 Sanit SANIT S 1000 Code Name Screw M14 x 35 Lateral joint Lateral inox. cover M14 Nut SCON001743 Lateral cover support SCON001748 Lateral cover...
  • Page 15: Plugs And Embellisher

    8.2 Plugs and embellisher Code Name CFER000087 1 ½” black embellisher CFER000086 1” black embellisher CFER000085 ¾” black embellisher CFER000084 ½” black embellisher CFER000134 1“ red tapered plug CFER000082 ¾” red tapered plug CFOV000158 ¾” seal CFOL000037 F ¾” brass plug CFOL000021 M 1 ½”...
  • Page 16: Diagrams And Measurements

    Sanit 9 DIAGRAMS AND MEASUREMENTS...
  • Page 17 MODEL Sanit S 500 Sanit S 750 Sanit S 1000 / SBH Drainage Ø ½” M ½” M ½ ” M Primary outlet Ø 1” H 1” H 1” H 1040 Primary inlet Ø 1” H 1” H 1” H Cold water inlet Ø...
  • Page 18: Technical Characteristics

    Sanit 10 TECHNICAL CHARACTERISTICS Sanit S Sanit S 1000 MODEL Sanit S 500 / SBH Total volume 1000 Max. storage temperature ºC Max. working pressure of hot water tank Max. primary temperature ºC Max. primary working pressure Empty weight Full weight...
  • Page 19 NOTES: ....................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
  • Page 20 HEADQUARTERS & FACTORY Apartado 95 Bº San Esteban s/n 20730 AZPEITIA 20737 ERREZIL (Gipuzkoa) Telfs: (+34) 943 813 899 www.domusateknik.com DOMUSA TEKNIK, reserves the right to make modifications of any kind to its product *CDOC001754* characteristics without prior notice. CDOC001754 03/20...
