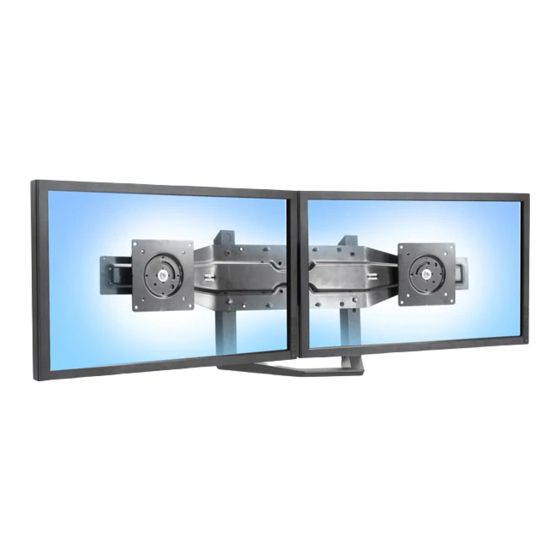

Ergotron Dual Monitor and Handle Kit Assembly Instructions Manual

14"-24.5"
(356-622 mm)
IMPORTANT! This product adds an additional 6 lbs. (2.7 kg) to your mounting solution. Your mounting solution's
monitor weight capacity must be reduced by 6 lbs. (2.7 kg) when using standard monitors less than or equal to 2.5"
(64 mm) thick. Additional reduction will be required if monitors are greater than 2.5" (64 mm) thick.
A
1x
1
3x
2
2x
3
M6 x 30mm
2x
4
For the latest User Installation Guide please visit: www.ergotron.com
User's Guide - English
Guía del usuario - Español
Manuel de l'utilisateur - Français
Gebruikersgids - Deutsch
Benutzerhandbuch - Nederlands
Guida per l'utente - Italiano
Användarhandbok - svenska
ユーザーガイ ド : 日本語
用户指南 : 汉语
888-97-314-G-03 rev. F • 03/17
14"-24.5"
(356-622 mm)
A 6 - 18 lbs
(2.7-8.2 kg)
B
6 - 18 lbs
(2.7-8.2 kg)
B C
1x
4 mm
2x
4x
M6 x 8mm
ID: 6.5 mm
OD: 12 mm
4x
THK: 1 mm
M4 x 11mm
EN
Dual Monitor and Handle Kit
A B
= 9-36 lbs (4.1-16.3 kg)
+
D
1x
2x
2x
2x
14x
M4 x 10mm
1x
1x
M3 x 6mm M3.5 x 6mm
ASSEMBLY INSTRUCTIONS
Instrucciones de instalación
Notice d'assemblage
Montageanleitungen
Installatie instructies
Manuali d'Istruzione
取扱い説明書
安装说明
설치 안내
E F
2x
M4 x 7mm
2x
M4 x 8mm
1 of 6
