Toro 121-4016 Installation Instruction

Hanger Bracket Upgrade Kit
2011-2012 XLS Lawn Tractor
Model No. 121-4016
Installation
Loose Parts
Use the chart below to verify that all parts have been shipped.
Description
Hanger bracket, left rear
Hanger bracket, right rear
Deck support bracket
Clevis pin
Cotter pin
Shoulder bolt
Locknut
Flat washer
Installing the Kit
1. Stop the engine, wait for all moving parts to stop,
and remove the ignition key.
2. Remove the mower deck as described in your
Operator's Manual.

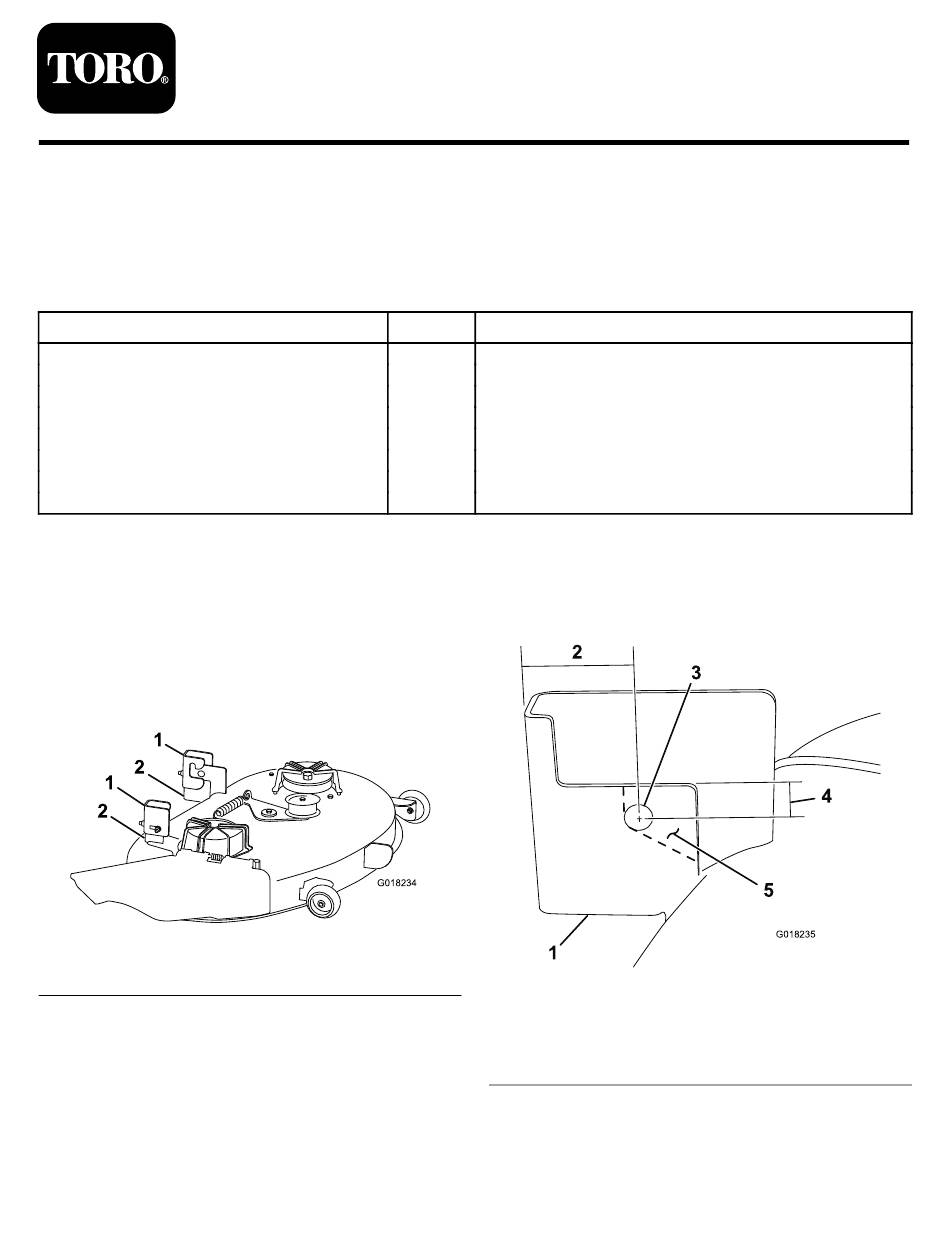

3. Remove the existing hanger brackets from the deck
brackets (Figure 1).
1
2
1
2
1. Hanger bracket
Note: Save the hardware for installing the new
hanger brackets.
4. For Model 71254 only: If you have a 38-inch mower
deck (for model 71254), you must remove part of the
rear left-hand deck bracket so that the new hanger
bracket will fit and allow the mower deck to be raised
or lowered freely. Do the following steps:
© 2012—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
G018234
Figure 1
2. Deck bracket
Register at www.Toro.com.
Qty.
1
1
2
2
Install the kit.
2
2
2
2
A. To aid in removing material from the rear
left-hand deck bracket, drill a 1/2-inch (13 mm)
hole in the bracket at the location shown in
Figure 2.
2
1
1. Hanger bracket
2. 2 inches (51 mm)
3. 1/2–inch (13 mm) hole
B. Remove the portion of the rear left-hand deck
bracket as shown in Figure 2.
Form No. 3373-165 Rev B
Installation Instructions
Use
3
4
5
G018235
Figure 2
4. 5/8 inch (16 mm)
5. Material removed
Original Instructions (EN)
Printed in the USA
All Rights Reserved
