KTI-63414A \ KTI-63427A

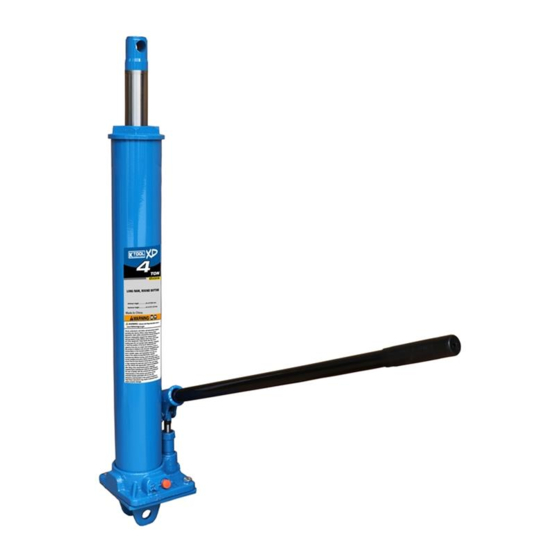

4 AND 8 TON LONG RAM ROUND BOTTOM
OWNER'S MANUAL
KTI-63414A/KTI-63427A
KTI-63427A
WARNING:
Cancer and Reproductive Harm-
www.P65Warnings.ca.gov
SPECIFICATIONS
Capacity
Low Height
Maximum Height
Complies with ASME PASE/2014 Safety Standard
KTI-63414A
KTI-63414A
4 Ton
24-4/5"
44-3/10
KTI-63427A
8 Ton
24"
43-7/10
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for K Tool International XD KTI-63414A
Summary of Contents for K Tool International XD KTI-63414A
- Page 1 KTI-63414A \ KTI-63427A 4 AND 8 TON LONG RAM ROUND BOTTOM OWNER'S MANUAL KTI-63427A KTI-63414A WARNING: Cancer and Reproductive Harm- www.P65Warnings.ca.gov SPECIFICATIONS KTI-63414A KTI-63427A Capacity 4 Ton 8 Ton Low Height 24-4/5" 24" Maximum Height 44-3/10 43-7/10 Complies with ASME PASE/2014 Safety Standard KTI-63414A/KTI-63427A...
- Page 2 WARNING INFORMATION This is the safety alert symbol. It is used to alert you to WARNING: Indicates a hazardous situation WARNING potential personal injury hazards. Obey all safety messages which, if not avoided, could result in death that follow this symbol to avoid possible injury or death. or serious injury.
- Page 3 SETUP AND OPERATING INSTRUCTIONS This is the safety alert symbol used for the SETUP and OPERATING INSTRUCTIONS section of this manual to alert you to potential personal injury hazards. Obey all instructions to avoid possible injury or death. PLEASE REFER TO THE EXPLODED VIEW DRAWING IN THIS MANUAL IN ORDER TO IDENTIFY PARTS. This jacks is equipped with an integrated lever (#37) that is used to turn the release valve (#36).
- Page 4 TROUBLESHOOTING PROBLEM: JACK WILL NOT LIFT RATED LOAD POSSIBLE CAUSE: The release valve is not closed. ACTION: Turn the valve clockwise tightly. POSSIBLE CAUSE: Fluid level low. ACTION: POSSIBLE CAUSE: Pump seals and back-up ring defective. ACTION: Clean oil passages, replace seals and renew oil. (Must be serviced by quali ed service center). PROBLEM: JACK WILL NOT LIFT TO ITS FULL HEIGHT POSSIBLE CAUSE: Fluid level low.
- Page 5 KTI-63414A 4 TON LONG RAM ROUND BOTTOM EXPLODED DRAWING & PARTS LIST QTY. QTY. Top Nut O-Ring Top Sealing Ring Pump Core Oil Piston Pump Ring Reservior O-Ring Sealing Ring J Type Dustproof Ring Bottom Sealing Ring Pump Body Steel Ball 6 Sealing Ring Ram Base Screw...
- Page 6 KTI-63427A 8 TON LONG RAM ROUND BOTTOM EXPLODED DRAWING & PARTS LIST QTY. QTY. Top Nut O-Ring Top Sealing Ring Pump Core Oil Piston Pump Ring Reservior O-Ring Sealing Ring J Type Dustproof Ring Bottom Sealing Ring Pump Body Steel Ball 6 Sealing Ring Ram Base Screw...
