SGK-10

Electric Guitar Kit - SG Style

Assembly Manual

Table of Contents

Need help?

Do you have a question about the SGK-10 and is the answer not in the manual?

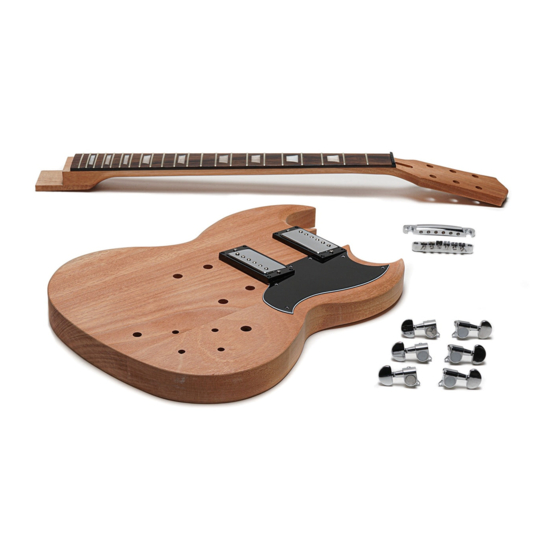

Page 3 Assembly Manual Thank you for purchasing a Solo DIY guitar kit. This unfinished guitar kit has everything for building an SG style electric guitar – you will need only some basic tools and finishing supplies. All challenging wood cutting, drilling and shaping is already professionally done, as well as fret leveling and dressing.
Page 4 work just fine. Apply the glue and allow it to cure closely following the manufacturer’s instructions. If you are using a metal clamp be very careful not to damage the wood of your guitar – use some pieces of wood on both sides to protect it. ...
Page 5 manual. The pots are marked as A500 and B500 – A500 (Audio Taper) are usually for Volume controls and B500 (Linear Taper) for Tone controls. Some musicians, however, like it better when linear pots are used for volume and audio are used for tone (and some guitar manufacturers use only one Audio type for both controls).
Page 6 For the 1 String (the thinnest) – height at the 1st fret: 0.01” – 0.016” (0.25 – 0.4mm); at the 12 fret: .063” – .078” (1.6 - 2mm). For the 6 String (the thickest) – height at the 1st fret: 0.016” – 0.024” (0.4 – 0.6mm); at the 12 fret: .078”...
Page 7 IMPORTANT: When you have your guitar finished, please take a few pictures and send them to us for potential posting into the picture gallery on our website. Email it in a JPG format to mysolo@solomusicgear.com © 2011, Solo Music Gear...
