Rossum LINNAEUS Operation Manual page 8

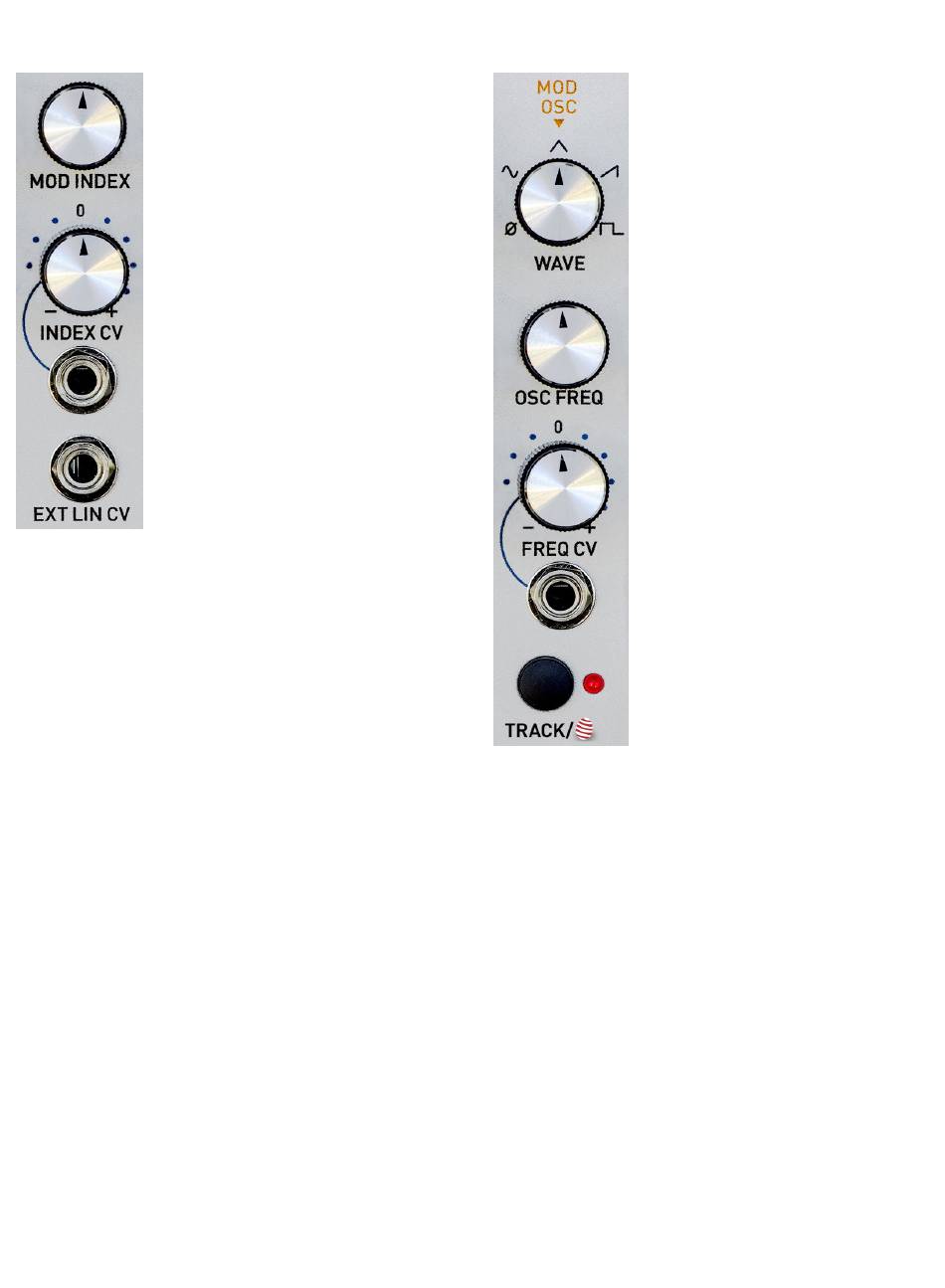

MOD INDEX
(LINEAR MOD INDEX VCA)
Sets the degree to which the
internal Modulation Oscillator
plus the External Linear
CV input affects the filter
frequency. The modulation
index can be set to values
from 0 to 8x.
INDEX CV (MODULATION
INDEX CONTROL INPUT)
An attenuverted CV input.
EXT LIN CV
Full-level input that is added
to the output of the internal
Modulation Oscillator to
linearly control the filter's
frequency.
8 |
MODULATION
OSCILLATOR WAVE
Selects the output wave
of the internal Modulation
Oscillator. Continuously
variable from Off through
Sine, Triangle, Sawtooth and
Square.
MOD OSC FREQ
Controls the Modulation
Oscillator's frequency over a
range of 20Hz to 20kHz.
FREQ CV (MOD OSC
FREQUENCY CV INPUT)
An attenuverted exponential
CV input. Maximum range is
+/- 1 volt per octave.
TRACK
Press to engage (LED lit) Mod
Oscillator Tracking. When
engaged, the Mod Oscillator
precisely tracks the filter's
exponential frequency. Press
and hold, or double click, to
engage the alternate "Ping
Mode" functionality described in Chapter 8.
The LED will flash. Double click toggles Ping
Mode on and off.
