4. Basic Functionality

Before we jump into individual functions in
detail, let's take a quick look at Linnaeus's
controls.
The control functions described
NOTE:
below reflect the main Linnaeus firmware.
Check out Chapter 8 for the alternate control
functions in Ping Mode.

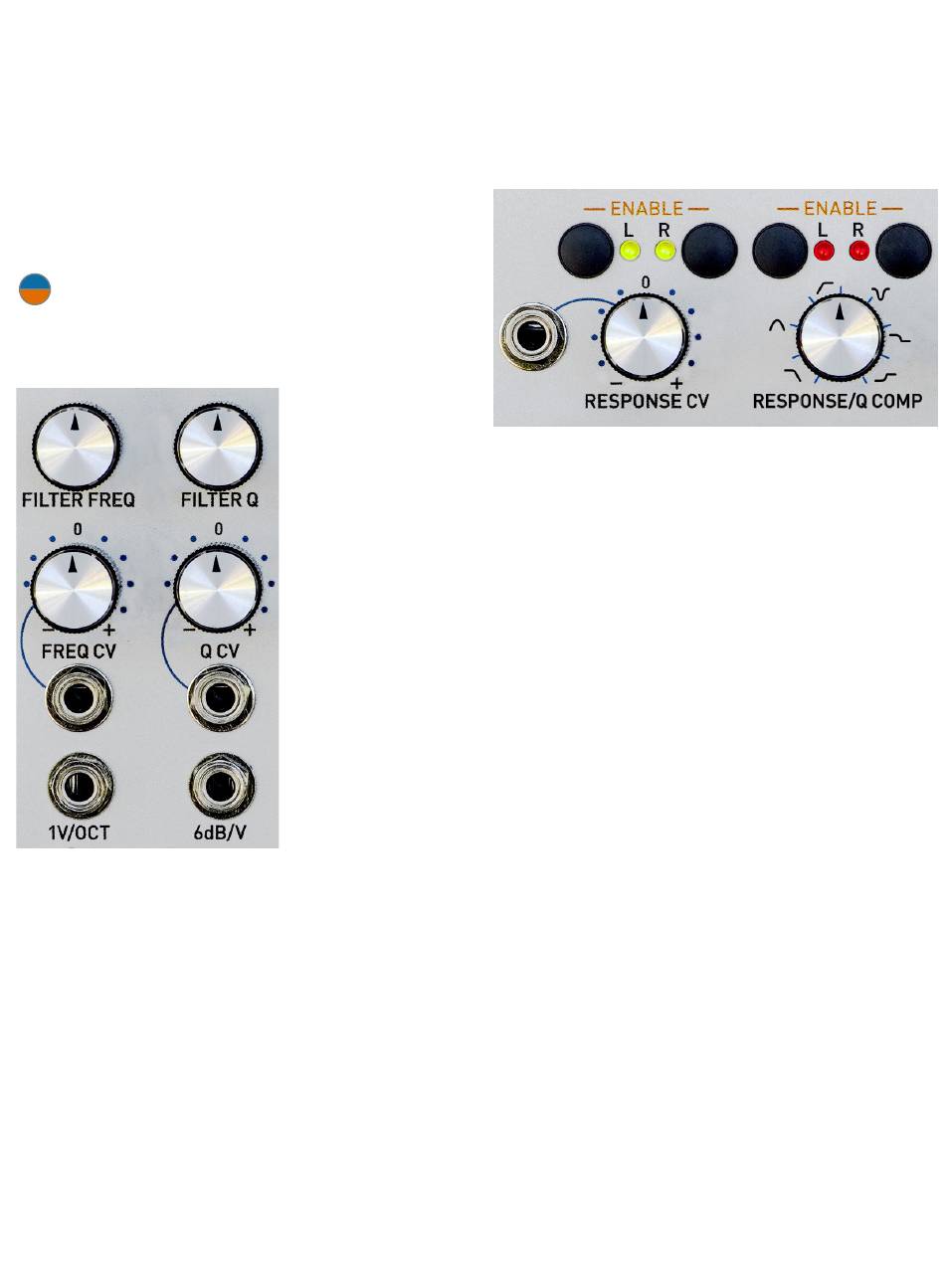

FILTER Q (RESONANCE)
Sets the filter's resonance from 0dB to over
60dB.
Q CONTROL INPUTS
Calibrated 6dB per volt resonance CV input
and attenuverted CV input.
FILTER FREQ
Controls the
filter's initial
cutoff frequency
over a range
exceeding 20Hz
to 20kHz.
FREQUENCY
CONTROL
INPUTS
Calibrated 1 volt
per octave and
attenuverted
exponential CV
inputs.
FILTER RESPONSE/Q COMP
Selects the filter channels' initial response
characteristics. The response is continuously
variable between Lowpass (12dB/oct and
6dB/oct), Bandpass, Highpass (12dB/oct and
6dB/oct), Notch, and Low and High Shelving
and is independently selectable for each of
the two channels via the individual Response
Enable controls.
When both the Response Enable controls are
off, the control sets the amount of level
compensation for the current Q.
RESPONSE CV
The attenuverted CV input can be individually
enabled for each of the two channels. The
Response CV Enable buttons also allow you
to select the polarity of the control for each
channel.
