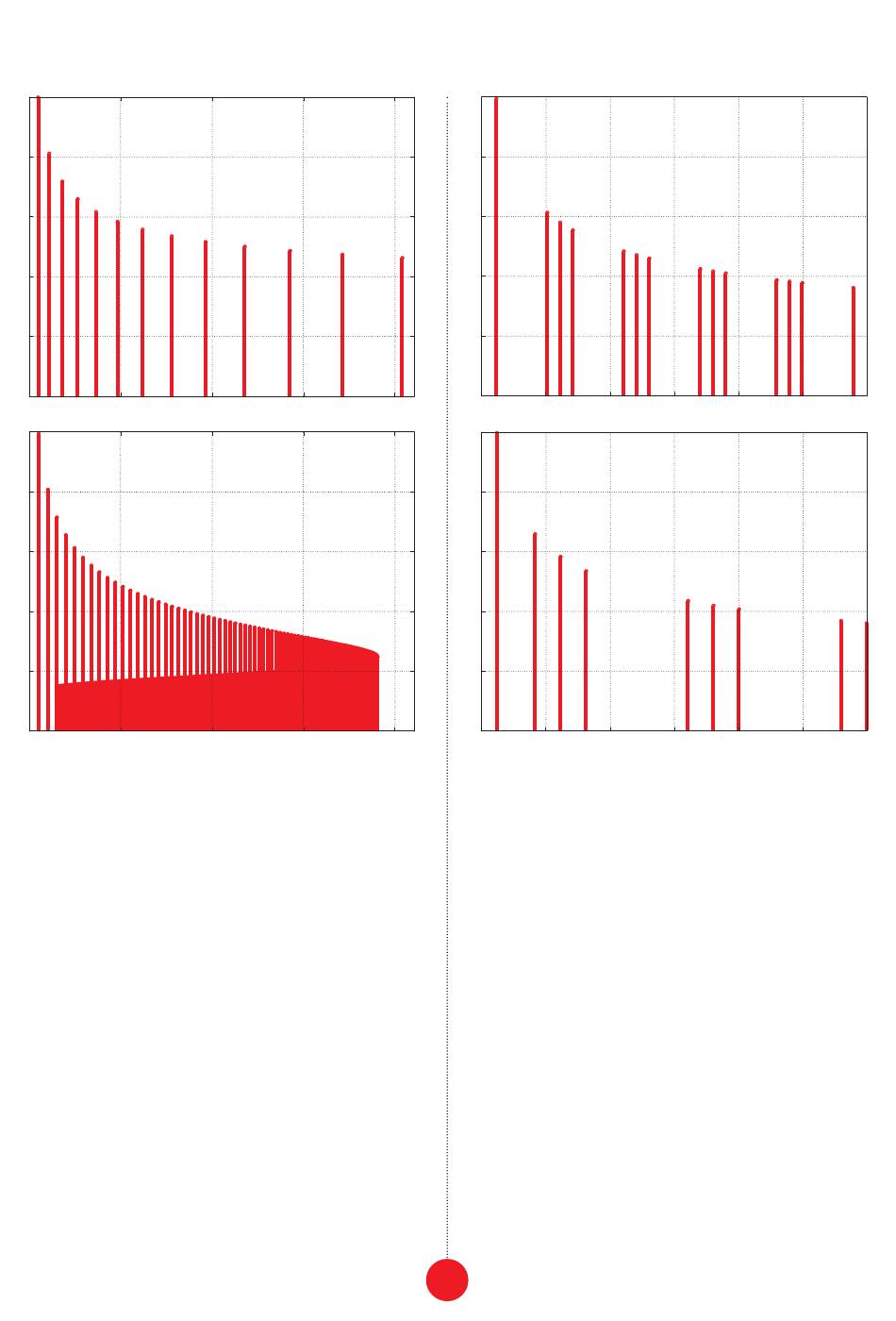

fig. 8
inharmonic spectra resulting from positive (upper)
and negative (lower) values of tension
EXPANDABILITY
The shrouded expansion header is dedicated
to the universal Xaoc Hel expander mod-
ule which offers paraphonic generation of
3-voice and 5-voice chords in Odessa. Please
refer to the manual of Hel for details.
Odessa also offers integration with the Leib-
niz Binary Subsystem via another expansion
header at the back of the unit. Connecting
an expander like Xaoc Lipsk, allows one to
enable and disable the individual groups
of partials as defined by the bank length
10000 15000
Frequency [Hz]
10000 15000
Frequency [Hz]
1
Amplitude
0.8
0.6
0.4
0.2
20000 0 5
1
Amplitude
0.8
0.6
0.4
0.2
20000 0 5
fig. 9
signal spectra at the odd partials and even partials
outputs for length=3 and factor=2
parameter. To engage this control, press and
hold the voices button for 1 second until it
starts to blink. At this point, a high state of
each binary line (for example, a button acti-
vated on Lipsk) turns one group on. The low-
est bit (B
and 4 ), the next higher bit (B
th
second group (5
highest bit (B
(from 23
note: the result of switching individual par-
tials may be subtle. For a more radical effect
use longer bank lengths. •
