EMc Data Domain DD990 with DD Extended retention

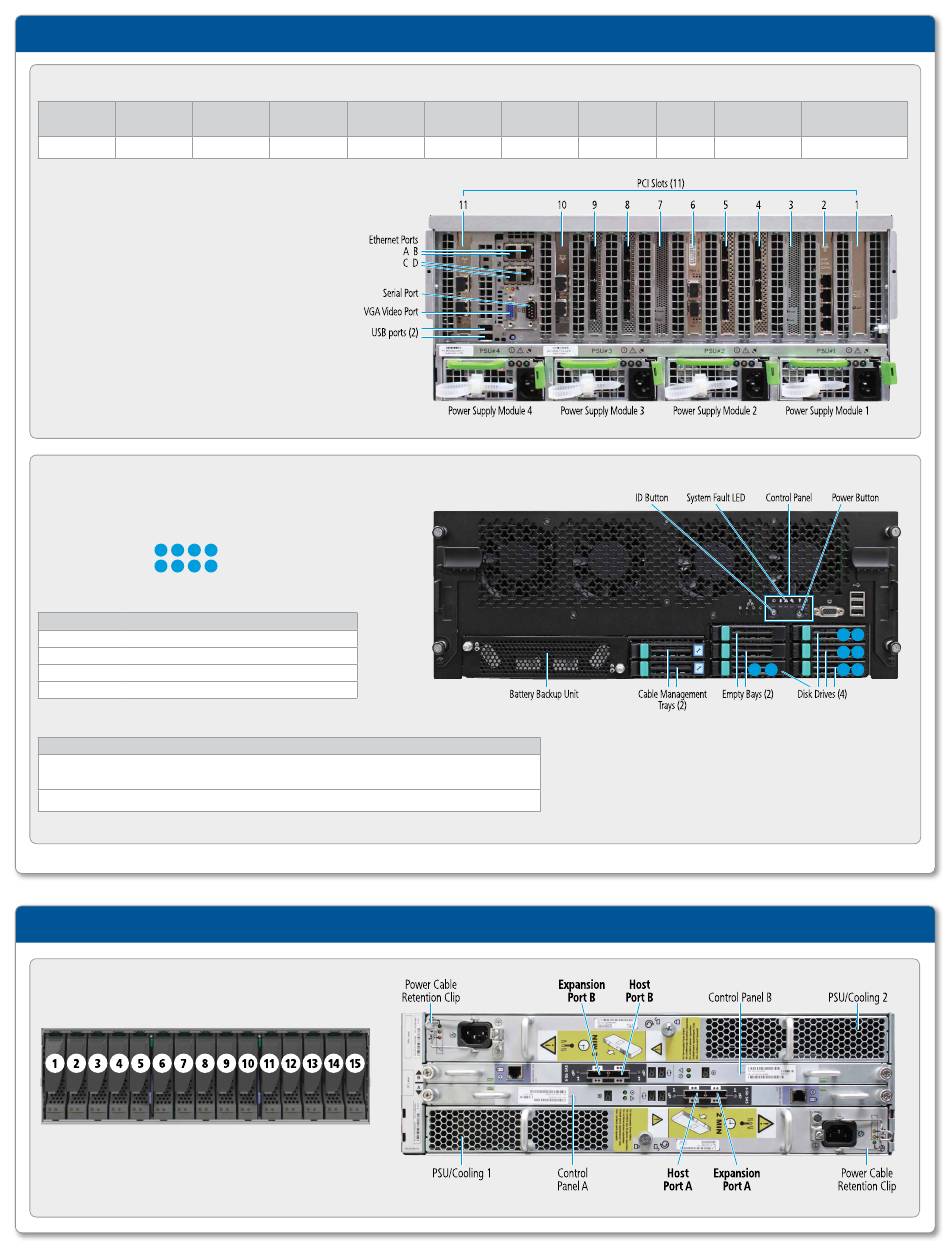

FiGurE 1: rEar PanEl anD inPut/outPut connEctivity
Slot 11 Slot 10
PCI (x8) PCI (x8)
NIC or VTL NIC or VTL
NOTE: For SAS PCI cards, port "a" is on the bottom.
For other optional PCI cards, port "a" is on the top.
FiGurE 2: Front PanEl anD DiSk locationS
Blue circles illustrate the locations of the hot-swap disks.
hot-swappable disks
Physical location:
1 2 3 4
Logical numbering:
1.1 1.2 1.3 1.4
System Fault LED
Display Meaning
Steady Green Normal operation
Blinking Green Startup
Steady Amber Critical fault. Shut down system for service.
Blinking Amber Non-fatal fault. Investigate; service the system.
Front Operator Panel Buttons
Push Button Definition
Power Press to start boot (if system is not running). Never shut down the system by pressing
the power button. The button glows steady green in the normal operating state.
Enclosure ID Press the ID switch to light the blue ID LEDs on the front and back panels.
Data Domain Expansion Shelves
FiGurE 3: ES30 ExPanSion ShElF
Expansion shelf disk-drive numbering and components:
Slot 9 Slot 8 Slot 7
PCI (x8) PCI (x4) PCI (x4)
SAS SAS NVRAM
Slot 6 Slot 5 Slot 4
PCI (x16) PCI (x8) PCI (x8)
NIC or VTL SAS SAS
Slot 3 Slot 2 Slot 1
PCI (x4) PCI (x4) PCI (x4)
NVRAM NIC (1G only) SAS (internal only)
2
3
1 1.1 4
1.2
1.3
1.4
