Summary of Contents for Westell Kentrox RMM-700

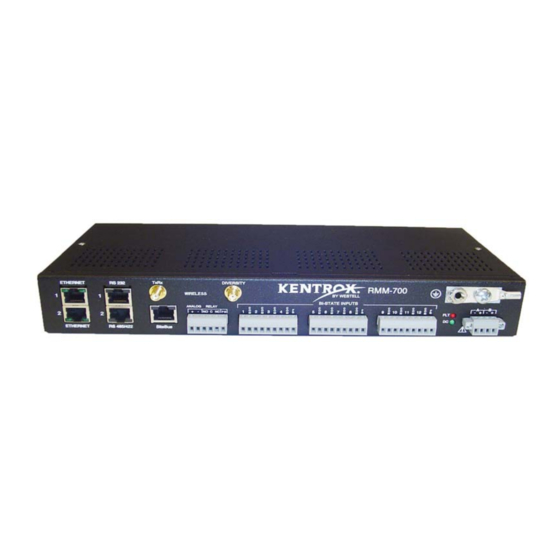

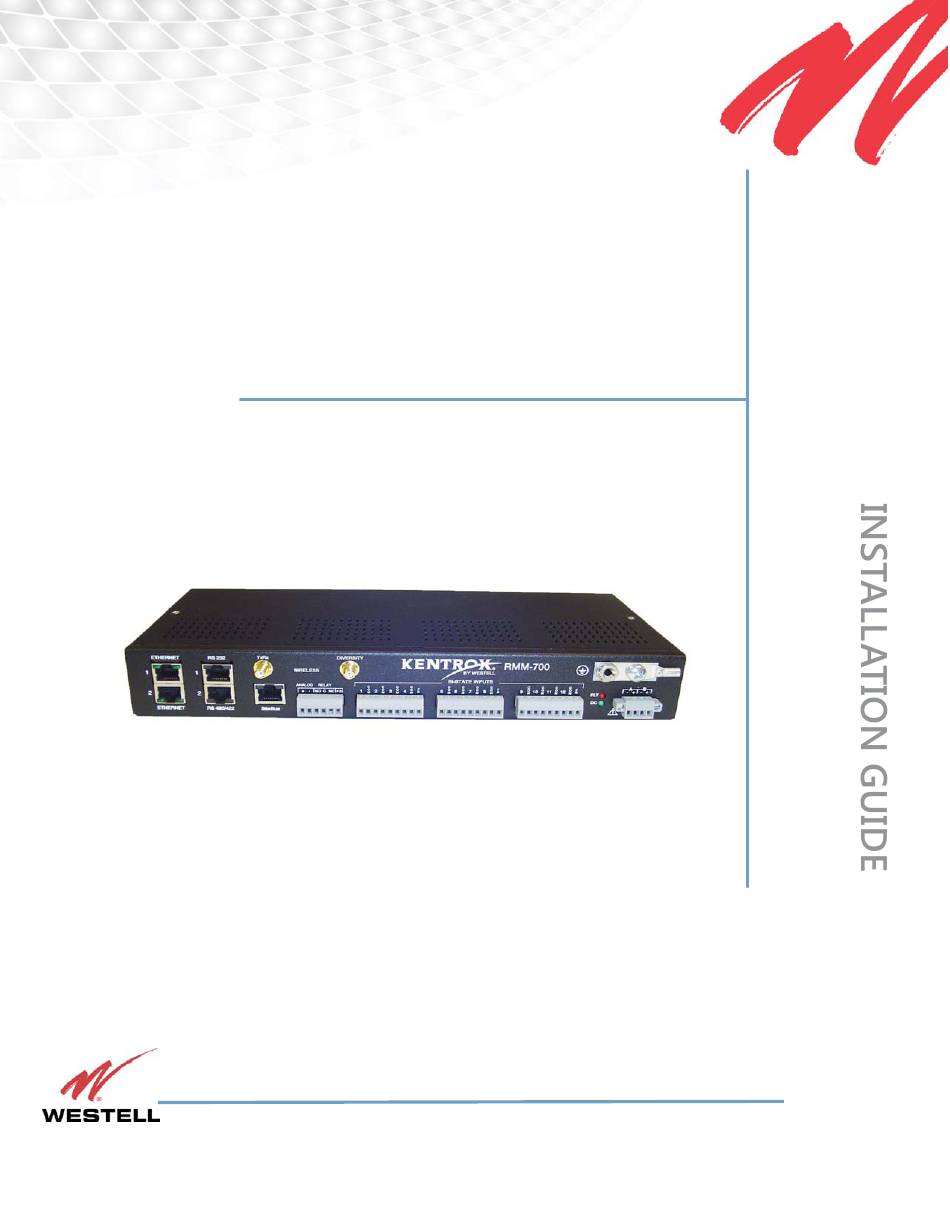

- Page 1 Remote RMM-700 Intelligent Site Management Device Installation Guide WESTELL.COM © Westell Technologies Part # 030-300653...
- Page 2 Remote RMM-700 Installation Guide Copyright © 2015 by Westell, Inc. All Rights Reserved. Westell, Kentrox, and Optima Management System are registered trademarks of Westell. All other names are trademarks of their respective owners. Information is correct at time of publication and is subject to change without notice. Contact Westell in Aurora, Illinois, to verify current product information.
-
Page 3: Product Components
-- Illuminates when processor is not functioning, or when RMM-700 has been powered up and bootloader is loading -- Blinks when bootloader has loaded and kernel is loading -- Goes out when RMM-700 bootup is completed Page 3 WESTELL.COM 1-800-377-8766... - Page 4 RS485 Mode Half Duplex Signal Direction Reserved* * On serial port 2, these pins TXRXb Bidirectional are reserved for diagnostic TXRXa Bidirectional access. Contact Westell Ground Customer Assistance Ground more information. Hi-Z Hi-Z Reserved* Ethernet Switch Ports Illuminates when a Blinks when data link is established.
-
Page 5: Cautions And Warnings
Remote RMM-700, Step 4: Attach Chassis Ground, and Step 5: Connect DC Power Input. Installation CAUTION: For Westell’s Kentrox equipment to operate safely and correctly, there must be a safety ground strap between the equipment ground bolts and the office ground. -
Page 6: Clock Battery
CAUTION: The Real Time Clock battery is intended to last for the life of the product, and should not require replacement under normal operation. If for any reason the battery does require replacement, the unit should be returned for service at Kentrox. Contact Customer Assistance if this need arises. Page 6 WESTELL.COM 1-800-377-8766... -
Page 7: Customer Assistance
All customers, partners, and resellers who have a valid Westell Support and Services Agreement have complete access to the technical support resources. Westell offers technical support from 8 a.m. to 5 p.m. Eastern time, Monday - Friday. Before you contact Westell for assistance, please have the following information... -
Page 8: Product Documentation
24x7 Support and Services Agreement. Call the number above, option 2, and follow the prompts for after-hours service. Product Documentation You can also access and view the most current versions of Kentrox product documentation on our Web site at: http://www.westell.com Page 8 WESTELL.COM 1-800-377-8766... -
Page 9: Required Tools And Materials
Wire for ground connection (14 AWG, copper conductor) Ground lugs for rack or other earth ground Antioxidant Various required rack cables and cable assemblies. For assistance in acquiring cables, contact Westell Customer Assistance. Page 9 WESTELL.COM 1-800-377-8766... -
Page 10: Installation
(See Figure 1-1 on page 10). Slide the top cover back and remove it from the unit. Screws Figure 1-1 The installer removes the screw from the back side of Remote RMM-700. Page 10 WESTELL.COM 1-800-377-8766... - Page 11 Figure 1-3 Installation steps for the SIM. 4. To install the Phone Module, start by inserting the two antenna terminals into the openings in the front of the unit. Turn both wires so they are oriented to connect Page 11 WESTELL.COM 1-800-377-8766...
- Page 12 Next, press down the other end of the phone module until it locks in place. Figure 1-5 The installer inserts the non-lead end of the phone module into its socket, above left, and then snaps the module into place, above right. Page 12 WESTELL.COM 1-800-377-8766...
- Page 13 The Remote RMM-700 is designed for installation in a 19-inch or 23-inch equipment rack using mounting flanges which attach to each side of the device. The Remote RMM- 700 also can be mounted onto a wall using the same mounting flanges. Page 13 WESTELL.COM 1-800-377-8766...
- Page 14 DC supply system. The chassis must be located in the same immediate area (such as adjacent cabinets) as other equipment connected to the same DC power system Page 14 WESTELL.COM 1-800-377-8766...
- Page 15 2. Strip ends of wire 5/16 in. (7 mm). 3. (optional) Using a small flathead screwdriver, loosen screws on sides of power connector on the bottom right front of Remote RMM-700. 4. (optional) Remove power connector. 5. Insert wire into connector and tighten screws. Page 15 WESTELL.COM 1-800-377-8766...
- Page 16 Step 6: Connect the Port Cables Connect all port cables per your application. For assistance in acquiring cables, contact Westell Customer Assistance. Note: When connecting the communication ports to an external device that does not share the same earth and signal grounding system, an isolation device should be used.
- Page 17 Remote RMM-700 Installation Guide Installation To configure the IP address: 1. Install Westell’s Kentrox Redirect software on your laptop or PC. When the installation is complete, Kentrox Redirect and Kentrox Kickstart icons appear on your desktop. 2. Use a standard CAT5 Ethernet cable to connect the PC or laptop to an Ethernet port on Remote RMM-700.
- Page 18 IP address and subnet mask. For example: config interface bridge switch ip address 10.34.64.222 255.255.255.0 8. At the command prompt, enter and the default config ip route default gateway address. For example: config ip route default 172.10.11.222 Page 18 WESTELL.COM 1-800-377-8766...
-
Page 19: Technical Specifications
Input impedance: greater than or equal to 400K Ohm Current mode: Range: 4 to 20 mA DC Input impedance: 100 Ohm Accuracy: +/-2% of full-scale 1 Relay output: · Contact rating: 30 VDC at 2 A resistive Contact type: Form C Page 19 WESTELL.COM 1-800-377-8766...
