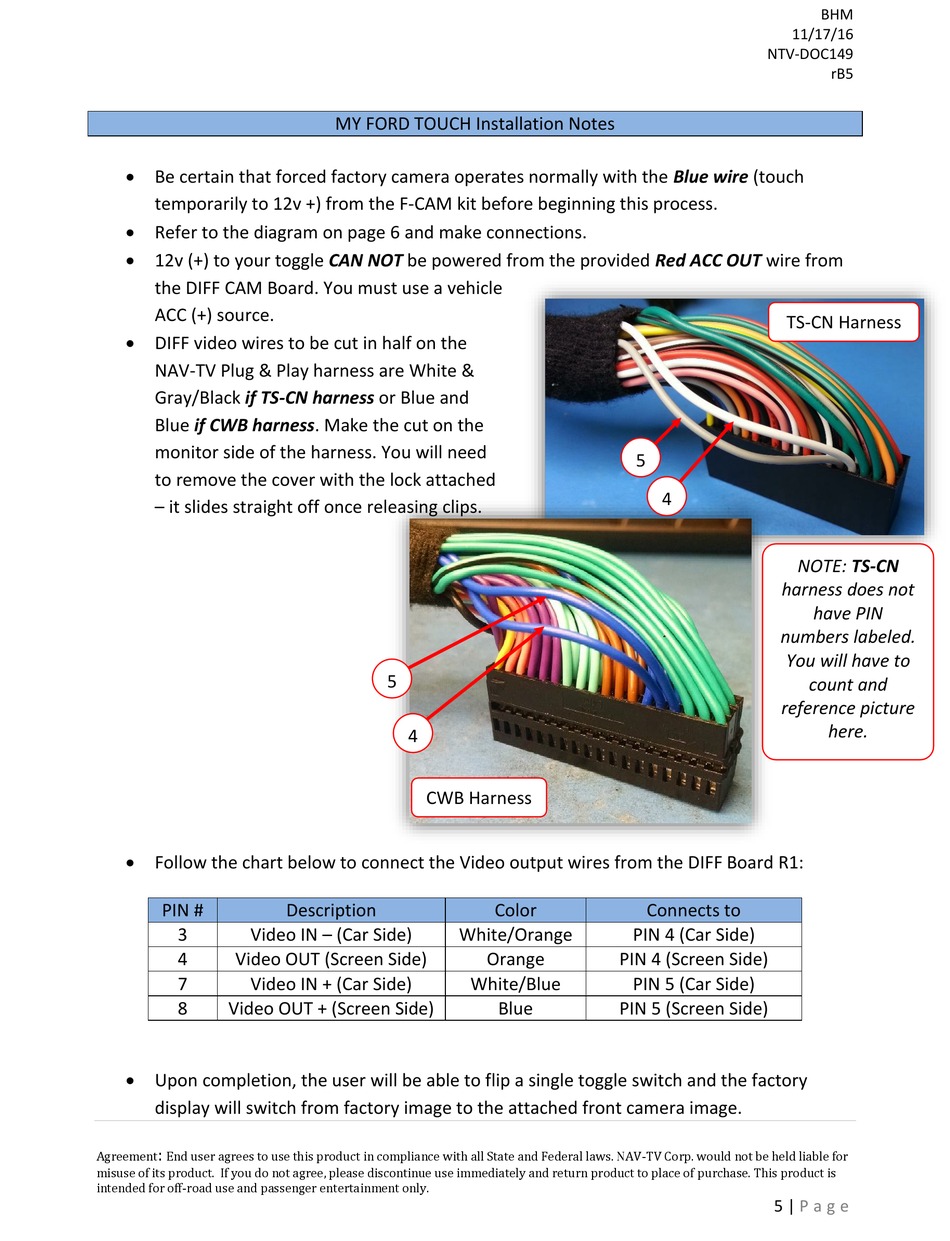

Nav TV DIFF CAM-Switcher Install Manual page 5

 Be certain that forced factory camera operates normally with the Blue wire (touch
temporarily to 12v +) from the F-CAM kit before beginning this process.
 Refer to the diagram on page 6 and make connections.
 12v (+) to your toggle CAN NOT be powered from the provided Red ACC OUT wire from
the DIFF CAM Board. You must use a vehicle
ACC (+) source.
 DIFF video wires to be cut in half on the
NAV-TV Plug & Play harness are White &
Gray/Black if TS-CN harness or Blue and
Blue if CWB harness. Make the cut on the
monitor side of the harness. You will need
to remove the cover with the lock attached
– it slides straight off once releasing clips.
 Follow the chart below to connect the Video output wires from the DIFF Board R1:
PIN #
3 Video IN – (Car Side)
4 Video OUT (Screen Side)
7 Video IN + (Car Side)
8 Video OUT + (Screen Side)
 Upon completion, the user will be able to flip a single toggle switch and the factory
display will switch from factory image to the attached front camera image.
:
