Basic Usage
1.
Attach the included mylar film as shown.
2.
Pull the spring lock to open the front door.
3.
Place the HDD into EMK3105PCI with its printed label up-sided.
4.
Press the door to push the hard drive into EMK3105PCI until the door is
locked.
Unload the Hard drive
1. Smoothly pull the spring lock to open the door. Make sure the key lock
is on a removable position, or the lock would get damaged.
2. Carefully take the hard drive out from EMK3105PCI.
Attention
1. To perform hot-swap function, the host must also support hot-swap.
2. Keep the device out of high temperature and humid environment.
3. If the device or HDD is damaged due to improper operation, we would not take the
responsibility of compensation or repair.
User manual

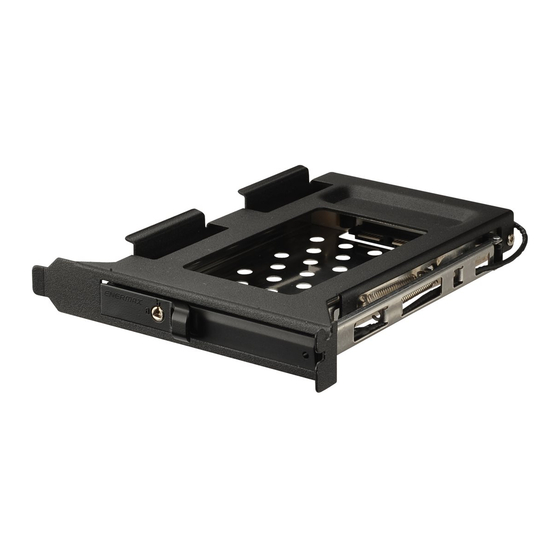

EMK3105PCI
Advertisement
Table of Contents
Summary of Contents for ENERMAX EMK3105PCI
- Page 1 Pull the spring lock to open the front door. EMK3105PCI Place the HDD into EMK3105PCI with its printed label up-sided. Press the door to push the hard drive into EMK3105PCI until the door is locked.
- Page 2 2. SATA data connector (7P) 3. HDD LED indicator 3. LED access port (4P) SATA 15 pin to 4 + 4 pin Power Cable Putting carefully EMK3105PCI to the socket. Screws Confirming EMK3105PCI is flat, then screw to fix it. IInsulating pad User manual...
