Installation & Configuration
Document 90-00066
2014-02-20
Page 1

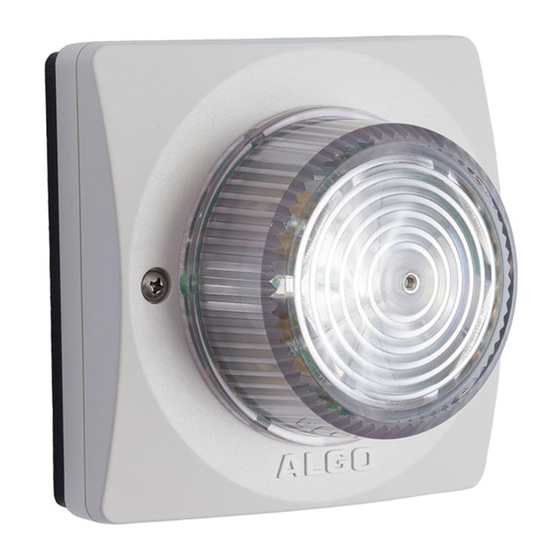

8128 SIP LED Strobe Light
FW Version 2.3
8128
8128A
8128B
8128R
8128ABR
Algo Communication Products Ltd
4500 Beedie St Burnaby BC Canada V5J 5L2
www.algosolutions.com
Clear lens only
Clear lens with
AMBER
Clear lens with
BLUE
Clear lens with
RED
Clear lens with 3 color cover kit
cover
cover
cover
support@algosolutions.com
(604) 454-3792
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Algo 8128
Summary of Contents for Algo 8128
- Page 1 8128 SIP LED Strobe Light FW Version 2.3 Installation & Configuration 8128 Clear lens only 8128A Clear lens with AMBER cover 8128B Clear lens with BLUE cover 8128R Clear lens with cover 8128ABR Clear lens with 3 color cover kit...
-
Page 2: Table Of Contents
SIP Extension ......................10 Authentication ID ....................10 Authentication Password ..................10 Monitoring Mode ....................11 Activating 8128 Strobe Using Subscribe/Notify ............11 Basic Settings Tab - Features ................12 Flash Patterns ....................... 12 Flash Pattern Test ....................13 Cadence ....................... 14 Relay Input Detection Mode .................. - Page 3 Restore Configuration to Defaults ................28 Reboot the Device....................28 Firmware Image ....................28 MD5 Checksum ..................... 28 Upgrade 8128 Strobe Firmware ................28 System - Network Logging ..................29 Optional Colored Lens Cover .................. 29 Specifications: ....................... 30 FCC Compliance ..................... 31...
-
Page 4: Important Safety Information
PHOTO-SENSITIVITY seizures from flashing or flickering lights. It is possible that some flash patterns of the 8128 Strobe could trigger a seizure for some individuals under some conditions. High intensity patterns should only be selected if necessary for the 8128 Strobe to be effective. -
Page 5: About The 8128 Strobe
Multicasting If multiple 8128 Strobes are required, the multicasting feature requires only one of the 8128 Strobes to be activated by an input. The activated 8128 Strobe can simultaneously multicast as a master to activate the other 8128 Strobes configured as slaves. -
Page 6: Quick Start
Strobe will turn on each LED individually as a test and then all on at low intensity until booting is completed. 3. If there is no DHCP server found the 8128 Strobe will default to the static IP address 192.168.1.111. Most often however the 8128 Strobe will be assigned an IP address. -
Page 7: What's Included
2 gang electrical box for installation with wiring conduit. The 8128 Strobe is rated IP65 for wet locations however care must be taken to ensure that water does not enter the wiring cavity. The supplied gaskets or sealant must be used to protect the wiring cavity in wet environments. -
Page 8: Wiring Connections
Connect RJ45 jack from PoE network switch or non-PoE network and 48V 350 mA IEEE 802.3af compliant power injector. Terminal Block Relay In By default, shorting these terminals will cause the 8128 Strobe to activate. Terminal Block Relay Out By default these terminals provide a contact closure when the 8128 Strobe is active. -
Page 9: Web Interface Login
Web Interface Login The web interface requires a password which is "algo" by default. This password can be changed using the Admin tab after logging in the first time. Document 90-00066 Algo Communication Products Ltd (604) 454-3792 2014-02-20 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com... -
Page 10: Basic Settings Tab - Sip
SIP Domain (Proxy Server) SIP Server Name or IP Address SIP Extension This is the SIP extension for the 8128 Strobe. Authentication ID May also be called Username for some SIP servers and in some cases may be the same as the SIP extension. -
Page 11: Monitoring Mode
Monitoring Mode There are five ways in which the 8128 Strobe can be activated. Dry contact input or multicast does not require registration with a SIP server and is discussed elsewhere in this guide. The monitoring mode selects whether SIP activation is by ring, message waiting, or subscribe/notify as described below. -
Page 12: Basic Settings Tab - Features
Basic Settings Tab - Features Flash Patterns Choose from 16 available patterns. The 8128 Strobe contains 8 high intensity LEDs each capable of producing 643 lumens or 198 Candela. In addition to being very bright, the LEDs can be fired simultaneously or individually for interesting effects. -
Page 13: Flash Pattern Test
PHOTO-SENSITIVITY seizures from flashing or flickering lights. It is possible that some flash patterns of the 8128 Strobe could trigger a seizure for some individuals under some conditions. High intensity patterns should only be selected if necessary for the 8128 Strobe to be effective. -
Page 14: Cadence
Relay Input Action The relay input may be used to flash the 8128 Strobe while the input is active, or latch the 8128 Strobe in an active state until cancelled by ringing the SIP ring extension. -
Page 15: Multicast Ip Addresses
The slave 8128 Strobes require a PoE network connection but do not require registration to the SIP server. In fact, since the 8128 Strobe can also be activated by dry contact closure, it is possible to have one or multiple 8128 Strobes activate in unison over multiple sites without any SIP server at all. -
Page 16: Basic Settings Tab - Multicast Master Settings
Basic Settings Tab - Multicast Master Settings Multicast Mode (Master Selected) If master is enabled the 8128 Strobe will broadcast an IP stream when activated in addition to flashing. This option is available for all activation methods (although note that the 8128 Strobe cannot be both a multicast master and slave simultaneously). -
Page 17: Send Flash Pattern
Send Flash Pattern Enabling this option means all 8128 Strobes in the multicast zone will mimic the flash pattern of the multicast master 8128 Strobe regardless of their individual settings. If disabled then each Strobe may have a unique flash pattern according to its settings. -
Page 18: Basic Settings - Multicast Slave Settings
Basic Settings - Multicast Slave Settings Multicast Mode (Slave Selected) If slave is enabled the 8128 Strobe will activate when receiving a multicast message. Depending on the settings of the Master, the 8128 Strobe will mimic the master flash pattern or use its own... -
Page 19: Zone Definitions
IP address for outbound proxy. A proxy (server) stands between a private network and the internet. STUN Server IP address for STUN server if present. Document 90-00066 Algo Communication Products Ltd (604) 454-3792 2014-02-20 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 19 www.algosolutions.com... -
Page 20: Register Period (Seconds)
SIP server. Default setting is 3600 seconds (1 hour). Only change if instructed otherwise. Keep-alive Method If Double CRLF is selected the 8128 Strobe will send a packet every 30 seconds (unless changed) to maintain connection with the SIP Server if behind NAT. -
Page 21: Automatic Failback
Reconnect with higher priority server once available, even if backup connection still fine. Polling Method SIP message used to poll servers to monitor availability. Advanced Settings - Network Document 90-00066 Algo Communication Products Ltd (604) 454-3792 2014-02-20 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 21... -
Page 22: Protocol
DHCP is an IP standard designed to make administration of IP addresses simpler. When selected, DHCP will automatically configure IP addresses for each 8128 Strobe on the network. Alternatively the 8128 Strobe can be set to a static IP address. -
Page 23: Dhcp Timeout
Length of time (in seconds) following a request from the 8128 Strobe to the DHCP server that the Strobe will wait before assuming the server is not available. After such time, the 8128 Strobe will use its default address of 192.168.1.111. Default time is 60 seconds. -
Page 24: Confirmation
Log Size Consult Algo technical support Log Method Allows the 8128 Strobe to write to external Syslog server if the option for external (or both) is selected. Log Server If external (or both) is selected this is the address of the Syslog server on the network. -
Page 25: Advanced Settings - Provisioning
Advanced Settings - Provisioning Provisioning allows installers to pre-configure 8128 Strobe units prior to installation on a network. It is typically used for large deployments to save time and ensure consistent setups. There are two different Provisioning methods that can be used: via DHCP Option 66 or via a Static Server. -
Page 26: Md5 Checksum
8. File algop8128.conf can now be uploaded onto the Provisioning server If using a generic configuration file, extensions and credentials have to be entered manually once the 8128 Strobe has automatically downloaded the configuration file. Document 90-00066 Algo Communication Products Ltd... -
Page 27: Generating A Specific Configuration File
8128 will be ready to work immediately after the configuration file is downloaded. The MAC address of each 8128 Strobe can be found on the back label of the unit. System - Maintenance... -
Page 28: Download Configuration File
3. Login to the device again, and click on System. 4. In the Upgrade section, click on Choose File and select the 8128 Strobe firmware file to upload. Note that both the FW firmware and MD5 checksum files must be loaded. -
Page 29: System - Network Logging
Use on the advice of Algo technical support only. Optional Colored Lens Cover The 8128 Strobe is available with clear lens or optional colored covers in amber, blue, or red. The tinted color caps reduce the brightness and conspicuity of the 8128 Strobe. -
Page 30: Specifications
Compliance: EN60950:2001, IEEE 802.3-2008, RFC3261, RoHS, CE, FCC, CSA/UL (USA & Canada) Document 90-00066 Algo Communication Products Ltd (604) 454-3792 2014-02-20 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 30... -
Page 31: Fcc Compliance
3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected, or 4) Consult the dealer or an experienced radio/TV technician for help. Document 90-00066 Algo Communication Products Ltd (604) 454-3792 2014-02-20 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com... - Page 32 Document 90-00066 Algo Communication Products Ltd (604) 454-3792 2014-02-20 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 32 www.algosolutions.com...
