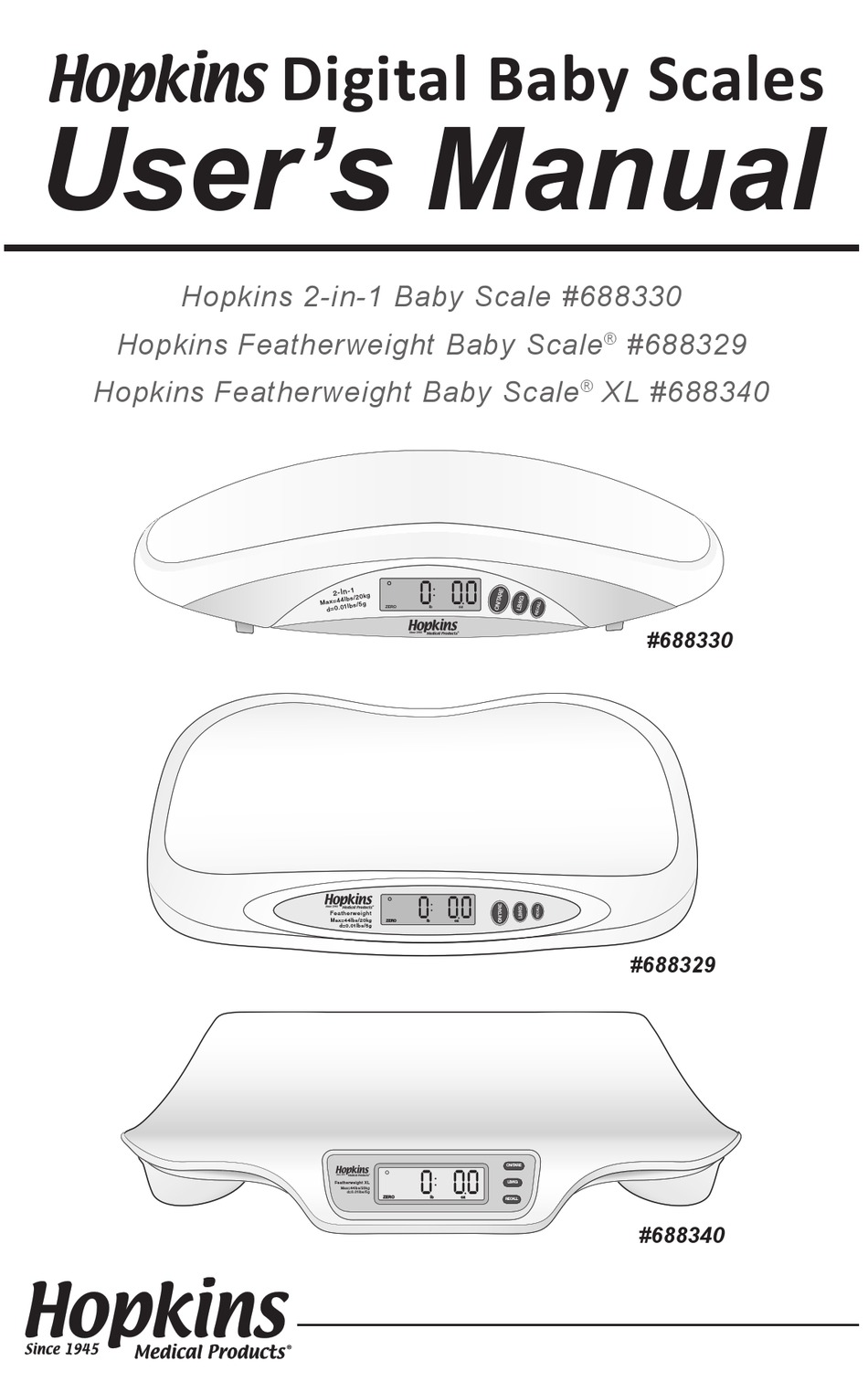

Digital Baby Scales
Hopkins
User's Manual
Hopkins 2-in-1 Baby Scale #688330
Hopkins Featherweight Baby Scale
#688329
®
Hopkins Featherweight Baby Scale
XL #688340
®
0 00
ZERO
lb
oz
#688330
0 00
Featherweight
Max=44lbs/20kg
ZERO
lb
oz
d=0.01lbs/5g
#688329
0 00
ON/TARE
LB/KG
Featherweight XL
Max=44lbs/20kg
d=0.01lbs/5g
ZERO
lb
oz
RECALL
#688340
© 2020 Hopkins Medical Products
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hopkins 2-in-1 Baby Scale
Summary of Contents for Hopkins 2-in-1 Baby Scale
- Page 1 Digital Baby Scales Hopkins User’s Manual Hopkins 2-in-1 Baby Scale #688330 Hopkins Featherweight Baby Scale #688329 ® Hopkins Featherweight Baby Scale XL #688340 ® 0 00 ZERO #688330 0 00 Featherweight Max=44lbs/20kg ZERO d=0.01lbs/5g #688329 0 00 ON/TARE LB/KG Featherweight XL Max=44lbs/20kg d=0.01lbs/5g...
-
Page 2: Table Of Contents
............7 & 8 • Memory Function • Change Units • Tare Function User Information ............... 9 - 11 • Maintenance • Cleaning • Calibration Technical Specifications ............11 Troubleshooting ................13 Warranty & Contact Information ........14 © 2020 Hopkins Medical Products... -
Page 3: Introduction
Introduction Thank you for selecting a Hopkins Baby Scale! This manual contains information for the Hopkins 2-in-1 Baby Scale (Item #688330) Hopkins Featherweight Baby Scale ® (Item #688329) and the Hopkins Featherweight Baby Scale XL (Item #688340). ® This manual contains important safety and care information, and step by step instructions for using these products. -
Page 4: Lcd Display
This indicates that the baby or object placed Overload indicator on the scale is over the maximum weight capacity of 44lbs (20kg). Unstable indicator Ensure scale is on a flat, level surface. © 2020 Hopkins Medical Products... - Page 5 Features Hopkins Baby Scales are lightweight, portable, and accurate weight measurement devices that utilize highly sophisticated microprocessor technology which allows accurate, reliable, and repeatable measurements every time. Hopkins 2-in-1 Baby Scale #688330 • Tare function • Memory function • Large backlight LCD display •...
- Page 6 Replacing the Batteries When the batteries are depleted the scale will display the low battery indicator. Please remove the batteries and replace them with fresh ones as soon as possible. © 2020 Hopkins Medical Products...
-
Page 7: Using The Ac Adapter (#688340 Only)
Using the AC Adapter (#688340 Only) The AC Adapter jack is located in the back of the scale The Hopkins Featherweight XL Baby Scale can be powered using either the included four AA batteries, or with the included AC Adapter. -
Page 8: Operating Instructions
The display will automatically shut off after 1 minute if the scale is not being used. To turn the scale off manually, press and hold "ON/TARE" for 3 seconds until the display turns off. © 2020 Hopkins Medical Products... -
Page 9: Memory Function
"ON/TARE" button again and the display will return to a zero reading. 0 00 Follow steps 3-5 of the operating instructions to complete the weight ZERO measurement. © 2020 Hopkins Medical Products... - Page 10 AC Adapter power supply is connected. To calibrate your Hopkins Baby Scale you will need two certifi ed weights: one 10kg weight, and one 20kg weight. A certifi ed weight set is available through Hopkins Medical Products (Item #685297).
- Page 11 Press the "RECALL" key twice. Then press the "ON/TARE" key. The LCD display will show "CAL 10". Place a 10kg certifi ed weight on the scale. 10 KG The LCD Display will show "CAL 20". © 2020 Hopkins Medical Products...
- Page 12 10kg certified weight to check the calibration for accuracy. If the scale is still out of calibration, repeat the 10 KG process. If the scale readings remain 0 000 inaccurate, please contact Hopkins Medical Products. (Contact Info Pg.15) © 2020 Hopkins Medical Products...
- Page 13 Specifications for Scale #688330 0 00 ZERO Scale Item Number #688330 Scale Name Hopkins 2-in-1 Baby Scale Power Supply Four AA Batteries (Included) Display Blue Backlight LCD Display Screen Maximum Weight 44lb (20kg) Capacity Graduation 0.16oz (5g) • 0-22lbs (0-10kg) ± 0.5oz (15g) Accuracy •...
- Page 14 23" L x 13" W x 3" H (59 x 33 x 8 cm) Tray Dimensions 21.5" L x 10" W x 2" D (55 x 25 x 5 cm) Parts Included Four AA Alkaline Batteries © 2020 Hopkins Medical Products...
- Page 15 23.5" L x 15" W x 3.75 H (60 x 38 x 10 cm) Tray Dimensions 23.5" L x 12" W x 2" D (60 x 30 x 5 cm) Parts Included Four AA Alkaline Batteries & 120V AC Adapter © 2020 Hopkins Medical Products...
-
Page 16: Troubleshooting
• SaniZide PRO 1 Germicidal Wipes (Box of 50) #695926 • SaniZide PRO 1 32oz Germicidal Spray Bottle #695910 • 10kg Calibration Weight #685295 • Hopkins Measure Mat II Infantometer #680210 • Hopkins Touch Free Thermometer #571500 © 2020 Hopkins Medical Products... - Page 17 Warranty & Registration Information Your Hopkins Baby Scale comes with a 3 year limited warranty. These scales are warranted against any defects in material and workmanship for 3 years from the date of purchase. If you experience a material or manufacturing defect at any time, repairs will be made without charge upon the return of the instrument to Hopkins Medical Products, except in cases of obvious abuse or accidental damage.
- Page 18 1 - 8 0 0 - 8 3 5 - 1 9 9 5 www.hopkinsmedicalproducts.com © 2020 Hopkins Medical Products...
