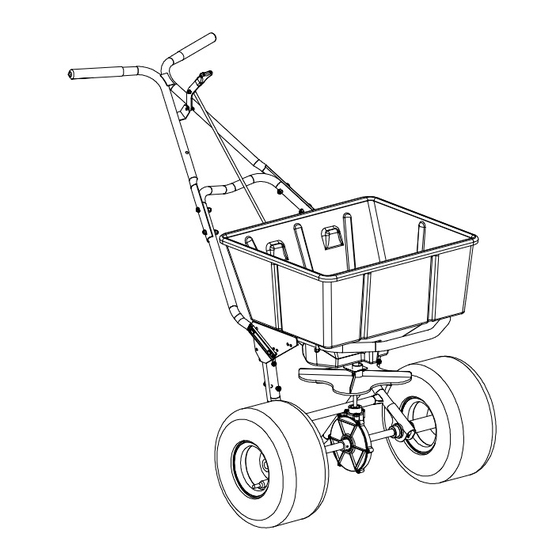

80 LB Rotary Spreader
Optional Equipment
Calibration
Parts List AND INSTRUCTIONS
This product may be covered by one or more of the following patents:
4,511,090, Pending
Model #:
705698 / 705699
Starting Date: 8/2002-
5:1 Gearbox

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Commercial plus 705698 and is the answer not in the manual?

Questions and answers

Summary of Contents for Lesco Commercial plus 705698

  • Page 1 Model #: 705698 / 705699 Starting Date: 8/2002- 5:1 Gearbox 705698/Carbon Steel, 705699/Stainless Steel 80 LB Rotary Spreader Optional Equipment Calibration PARTS LIST AND INSTRUCTIONS This product may be covered by one or more of the following patents: 4,511,090, Pending...
  • Page 2 Agitator Arm Assembly 031167 Hex Cap Screw, 1/4-20, 1.50 14 060050 3/8 Retainer Spring Clip 706895 Lesco Decal, 2-3/8 x 7-1/8 15 060057 1/4 -20 x 7/8 Pan Head Mach Screw 060027 Agitator Shaft Bearing 16 700128 Nylon Flat Washer, .26 x .687 x .06 060033 Flat Washer, 1/4”...
  • Page 3 80LB Frame Assembly - Figure 2 and Parts List Operating Lever Rod Assembly (Ref. 39) Ref. Part Ref. Part Description Qty. Description Qty. 010171 Retainer Clip “C” 705552 Hex Cap Screw, 1/4-20 x 2 018901 Drive Wheel 060031 Clevis Pin, 1/4 x 1/2 019790 Plastic Idler Wheel 060032...
  • Page 4 Shut-Off Assembly - Figure 3 and Parts List Ref. Part Ref. Part Description Qty. Description Qty. 020491 Shut-off Plate Remote 704186 Spring Clip 020492 Slide Lever 704539 Two Hole Weldment Plate 060032 Cotter Pin, .072 x 1.12 Lg 704955 Plate Shut-off Clip 060033 Flat Washer, 1/4”...
  • Page 5 The Optional Remote Deflector - Part No. 706250 Mounting Instructions Ref. Install the deflector tube mount (ref. 22) onto the right No. Part No. Description Qty. side of the spreader frame (from the inside) as shown. 010171 Retainer “C” Clip Install the tube bracket mount (ref.
  • Page 6 The Optional Remote 3rd Hole Slide - LESCO No. 030571 Mounting Instructions Parts List 1. Mount the dual lever bracket (Ref. 1) to the right Ref. handle using one machine screw (Ref. 2), one flat Part No. Description Qty. washer (Ref. 3) and one hex nut (Ref. 4) as shown...
  • Page 7 4 hex head screws, 1/4-20 x 3/4, 10. Grease the axle bearings and the gear support. and 4 nylock nuts, 1/4-20. nuts, 1/4-20. 11. Read the Lesco Spreader Calibration instructions packed with your spreader and calibrate following the instructions.
  • Page 8 STEPS: vide consistent settings for all of your LESCO spreaders. To recali- brate your LESCO rotary spreader after a period of use, adjust the Check the spreader discharge holes with the operating lever in the rate control arm to the "24" position. Open the operating lever and in- closed position.
  • Page 9 Notes...
  • Page 10 Notes...
  • Page 11 Notes...
  • Page 12 ROTARY SPREADER ONE-YEAR LIMITED WARRANTY 1. What Is Covered By This Warranty. LESCO, Inc. warrants, to the original purchaser only, that the Equipment that is the subject of this sale (a) conforms to LESCO’s published specifications, and (b) is free from defects under normal service, for a one-year period from the original date of delivery.
