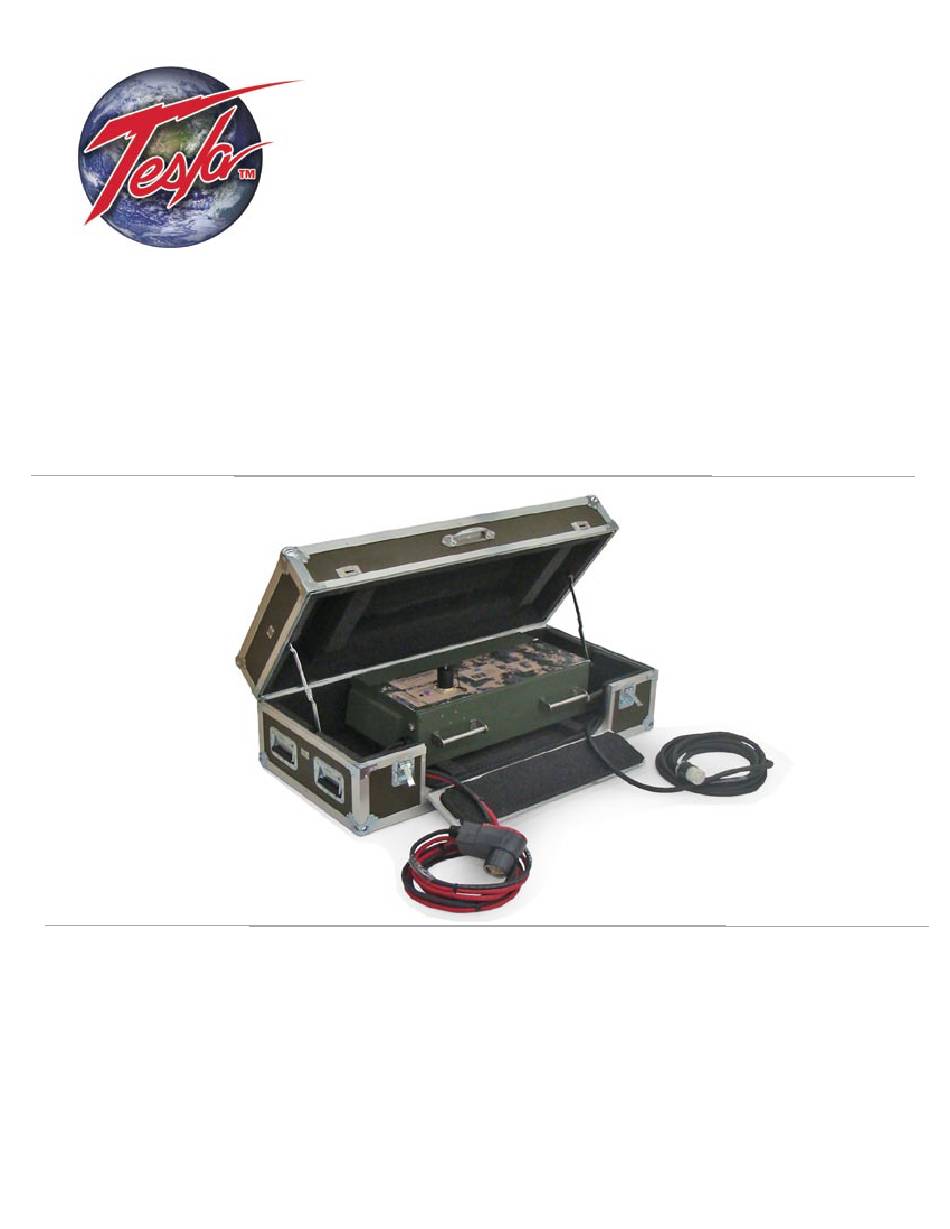

- Page 1 Tesla TI2000-308 Power Anytime, Anywhere ™ 3 kW Inverter System Pure Sine Wave Inverter User Manual Built Smart...Proven Tough Tesla™ Industries, Inc. 101 Centerpoint Blvd. New Castle, DE 19720 (302) 324-8910 Phone (302) 324-8912 Fax www.teslaind.com...
- Page 2 Any attempts to open or examine the inside of the TI2000-308 3 kW Inverter System via a tool or device (borescope, probe, etc.) can result in unit failure and/or injury by electrical shock. This Inverter System is mainte nance free and should not be opened or disassembled for any reason.
-
Page 3: Table Of Contents
2.14 – DC NATO Cable Assembly 2.15 – Alarm LED Indicators 2.16 – Inverter Power Switch Section 3 – Pre-Operation 3.1 – General 3.2 – Operating Limits and Restrictions 3.3 – Performance 3.4 – Temperature Specifications 3.5 – Environmental TI2000-308 3kW Inverter System... - Page 4 5.4 – Packaging and Shipping Section 6 – Troubleshooting and FAQ 6.1 - Frequently Asked Questions 6.2 - Basic Unit Troubleshooting Section 8 – Optional Accessories 8.1 – Replacement Contacts and Tools 8.2 – Transportation Case Repair Request Form TI2000-308 3kW Inverter System...
- Page 5 Minimum Micro Power Unit NEMA National Electrical Manufacturers Association Ω power factor power factor correction root-mean-square Total Harmonic Distortion TMDE Test, Measurement, & Diagnostic Equipment Unmanned aerial vehicle Volts, Alternating Current Volts, Direct Current watts TI2000-308 3kW Inverter System...
-
Page 6: Section 1 - Safety Review
Explosion Hazard Fire Hazard Fire Hazard Battery Warning Battery Warning Guard from Moisture Guard from Moisture Figure 1.2.1 – Different types of hazard and caution symbols Figure 1.2.1 – Different types of hazard and caution symbols TI2000-308 3kW Inverter System... -
Page 7: Hazards
Shock Hazard Potential Severe injury or death from electrical shock will occur if either the user or the TI2000-308 3 kW Inverter System is wet while operating the unit. Be sure to discon nect power from the AC Output Cable if the TI2000-308 3 kW Inverter System has come into contact with water. -
Page 8: Section 2 - Product Overview
This System is one of Tesla™ Industries latest advancements in power technology development. The TI2000- 308 is a Pure Sine Wave Inverter System. The TI2000-308 3 kW Inverter System was designed to provide 120/240 Vac @ 12.5 amps of pure regulated AC power. -
Page 9: Front Panel Overview
Inverter Power Switch – Acts as on “On/ Output Power Status Indicator – Displays the Off” Switch for the TI2000-308 3 kW Inverter ac current load. System. Input Voltage Indicator – Displays Input 25’ Hardwired AC Line Cord –... -
Page 10: General Specifications
• 169.5 lbs (76.8 kg) with optional case Operating Temperature: • -20° C to +65° C • -4° F to +150° F Storage Temperature: • -40° C to +65° C • -40° F to +150° F TI2000-308 3kW Inverter System... -
Page 11: Physical Dimensions
Product Overview 2.5 – Physical Dimensions 11.57 [293.9] 7.83 [198.8] 30.82 [782.9] 36.33 [922.7] Figure 2.5.1 – TI2000-308 3 kW Inverter System physical dimensions TI2000-308 3kW Inverter System... -
Page 12: Airflow Ports
Figure 2.6.1 – Air intake, exhaust ports and internal air circulation 2.7– Operating Positions The TI2000-308 3 kW Inverter System is operated in horizontal position as shown. Make sure that the airflow is not obstructed from air intake and outlet. -
Page 13: Active Output Circuit Breaker
(outlined in blue) 2.9 – AC Output Cord The AC Output Cord (See Figure 2.9.1) is 25’ in length. It has a Hardwired Plug (2713 / Tesla™ part # TI250000-044). Contact Tesla™ Industries for additional plug configurations. Figure 2.9.1 Hardwired AC Output Cord with Plug... -
Page 14: Ac Output Power Status Led Indicator
The Output Power Status LED Indicator (See Figure 2.10.1) provides a way for the user to visually see the applied ac load that the TI2000-308 3 kW Inverter System is providing. This lets the operator know how much power that the equipment is drawing. -
Page 15: Dc Input Circuit Breaker
The DC Input Voltage LED Indicator provides a way for the user to visually see the voltage that the TI2000- 308 3 kW Inverter System is receiving. Figure 2.13.1 - Input Voltage Status Indicator location (outlined in blue) Input Voltage Input Voltage at 24 VDC at 30 VDC TI2000-308 3kW Inverter System... -
Page 16: Dc Nato Cable Assembly
Product Overview 2.14 – DC NATO Cable Assembly The DC NATO Cable Assembly is 15’ in length. It has been Hardwired to the TI2000-308 3 kW Inverter System. Do not connect the Hardwired DC NATO Cable Assembly to the 24 Vdc NOTE Input Connector. -
Page 17: Section 3 - Pre-Operation
These limitations must be adhered to during all phases of operation. 3.3 – Performance Refer to Section 7, PERFORMANCE DATA to determine the capability of the TI2000-308 3 kW Inverter System. Consideration must be given to changes in performance resulting from variations in ambient temperature and mode of operation. -
Page 18: Environmental
Every effort has been made, within the scope of existing technology to prevent foreseeable safety hazards and make the TI2000-308 3 kW Inverter System moisture resistant to prevent damage or failure. If the TI2000-308 3 kW Inverter System is exposed to moisture, preventive measures and precautions shall be taken to: A. -
Page 19: Pre-Operation
Make sure that airflow is not obstructed from air intake and outlet. (See Section 2.6) Check that all connections are secure and free from water. Figure 3.6.1 - TI2000-308 3 kW Inverter System 3.7 – 20-30 Vdc Input Power Connecting DC Power Cable from Inverter System to Vehicle Turn off DC Input Power before connecting or disconnecting DC Input Power. - Page 20 Place DC Input Circuit Breaker to the ON position. Turn ON Inverter Power Switch. Turn ON AC Output Circuit Breaker. Disconnecting DC Cable from the TI2000-308 3 kW Inverter System Turn OFF AC Output Circuit Breaker. Turn OFF Inverter Power Switch.
-
Page 21: Alarm Led Indications
Under-Voltage DC The Under-Voltage LED will illuminate if the operational voltage for the Inverter System has dropped below the preset value of 20 Vdc Input power. This Alarm will only apply to the dc functions of The TI2000-308. Over-Temperature The Over-Temperature LED will illuminate if the Inverter System is operating at a temperature exceeding the preset value of 150º... - Page 22 Turn OFF Inverter Power Switch. Turn OFF DC Input Circuit Breaker. Move the TI2000-308 3 kW Inverter System to a cool place for a minimum of one hour. Reconnect all Power Cables to the TI2000-308 3 kW Inverter System. Turn ON DC Input Circuit Breaker Turn ON Inverter Power Switch.
-
Page 23: Section 4 - Post-Operation
Section 4 – Post Operation 4.1 – General Although the TI2000-308 3 kW Inverter System has been ruggedized and made weather resistant within the scope of unit’s intended use, it is essential that good general care be taken to maintain unit in good operating condition and to maximize unit’s operational life. -
Page 24: Section 5 - Unit Care And Maintenance
Be sure to turn off the Inverter Power Switch and disconnect dc input power and ac output power from the Inverter System if the TI2000-308 3 kW Inverter System has come into contact with water. If the AC Output Circuit Breaker or the DC Input Circuit Breaker has tripped due to water infiltration, allow the unit to dry out before attempting to reset circuit breaker. -
Page 25: Unit Servicing
5.3 – Transporting Unit The TI2000-308 3 kW Inverter System has four affixed handles (See Figure 5.3.1) so that it can be carried for short distances by hand. If the area of operation is further then 45 meters (150 feet) the TI2000-308 3 kW Inverter System should be transported on a vehicle inside of the TI7000-223 Transportation Case. -
Page 26: Section 6 - Troubleshooting And Faq
5. Can one person transport it? It is not recommended for one person to transport the TI2000-308 3 kW Inverter System. The system alone weighs 106.5 lbs, and when it is in it’s case it weighs 169.5 lbs. -
Page 27: Basic Unit Troubleshooting
A. Plug unit into dc power source to maintain 240 Vac. B. Inverter Power Switch is not ON. B. Turn on Inverter Power Switch. C. AC Output Circuit Breaker is not ON. C. Turn on AC Output Circuit Breaker. TI2000-308 3kW Inverter System... -
Page 28: Section 8 - Optional Accessories
NSN: 5120-01-523-8761 (CL II) NSN: 5120-01-527-7729 (CL II) installation. 8.2 – Transportation Case The Tesla™ TI7000-223 Storage Case is designed especially to hold Tesla’s TI2000-308 3kW Inverter • Length: 48.52" (1232.3 mm) • Width: 23.99" (609.4 mm) •... -
Page 29: Repair Request Form
Model #: ____________________________________ Serial #: ________________________________________ Shipping method to Tesla™: ______________________________________________________________________ Description of shipping package: ________________________________________________________________ Description of problem: _________________________________________________________________________ _________________________________________________________________________________________________ _________________________________________________________________________________________________ _________________________________________________________________________________________________ Return to Tesla™ Industries, Inc. 101 Centerpoint Boulevard, New Castle, DE 19720 Attention: Repair Department TI2000-308 3kW Inverter System... - Page 30 Tesla™ Industries, Inc. 101 Centerpoint Blvd. New Castle, DE 19720 USA Tel: 302-324-8910 Fax: 302-324-8912 9475 Double R Blvd., Suite 2 Reno, NV 89521 Tel: 775-622-8801 Fax: 775-622-8810 www.teslaind.com...
