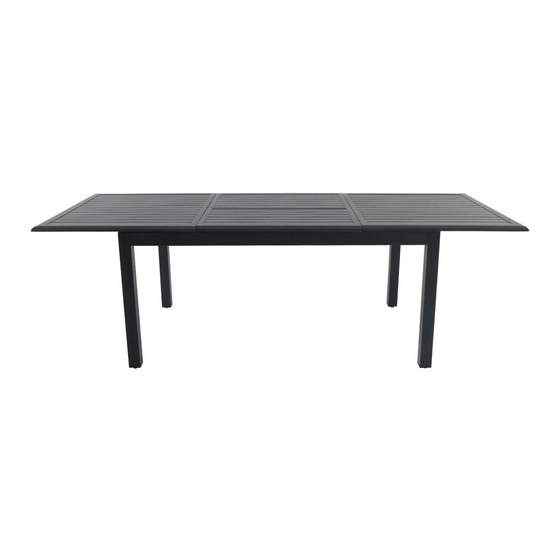

Assembly Instructions FTA01230Q Aluminum Extension Table (63” - 94”) Questions, problems, or missing parts? Before returning to the store, call Customer Service. 1-866-988-3300 8 a.m. -5 p.m., PST Monday - Friday Retain this manual for future use.
FTA01230Q Parts & Tools PART PICTURE & DESCRIPTION PART PICTURE & DESCRIPTION M8*35 Bolt Table Top Table Leg M8 Spring Washer M8 Flat Washer Hex Wrench WARNING: To avoid damage of your new patio furniture, please use either the carton or another soft surface such as carpet as a working surface to prevent product damage during assembly.
Page 4
FTA01230Q Table Assembly Step 1: • Place the table top (A) upside down on a soft surface. Line up the bolt holes on the table legs (B) and table top(A). Insert M8*35 (C) bolts through M8 Spring Washer(D) and M8 Flat Washer(E).
Page 5
FTA01230Q Opening Table Step 1: • Open the lock catch counter -clockwise under table top (A) as shown. Step 2: • Push the table top open from both sides. Step 3: • Push the middle of table top to lift it up.
Page 6
FTA01230Q Opening Table Step 4: • Push the middle of table top to right side till it is on supporting tube. • Push right and left sides of the table top to middle table top segment. Step 5: • Open the lock catch clockwise under table...
Page 7
FTA01230Q Closing Table Step 1: • Open the lock catch counter-clockwise under table top (A) as shown. Step 2: • Push the table top open from both sides. Step 3: • Push the middle of table top to lift it up.
Page 8
FTA01230Q Closing Table Step 4: • Push the middle table top to lower left corner until it’s on middle supporting tube. • Push the right and left table top segments to middle table top segment. Step 5: • Open the lock catch clockwise under table...
