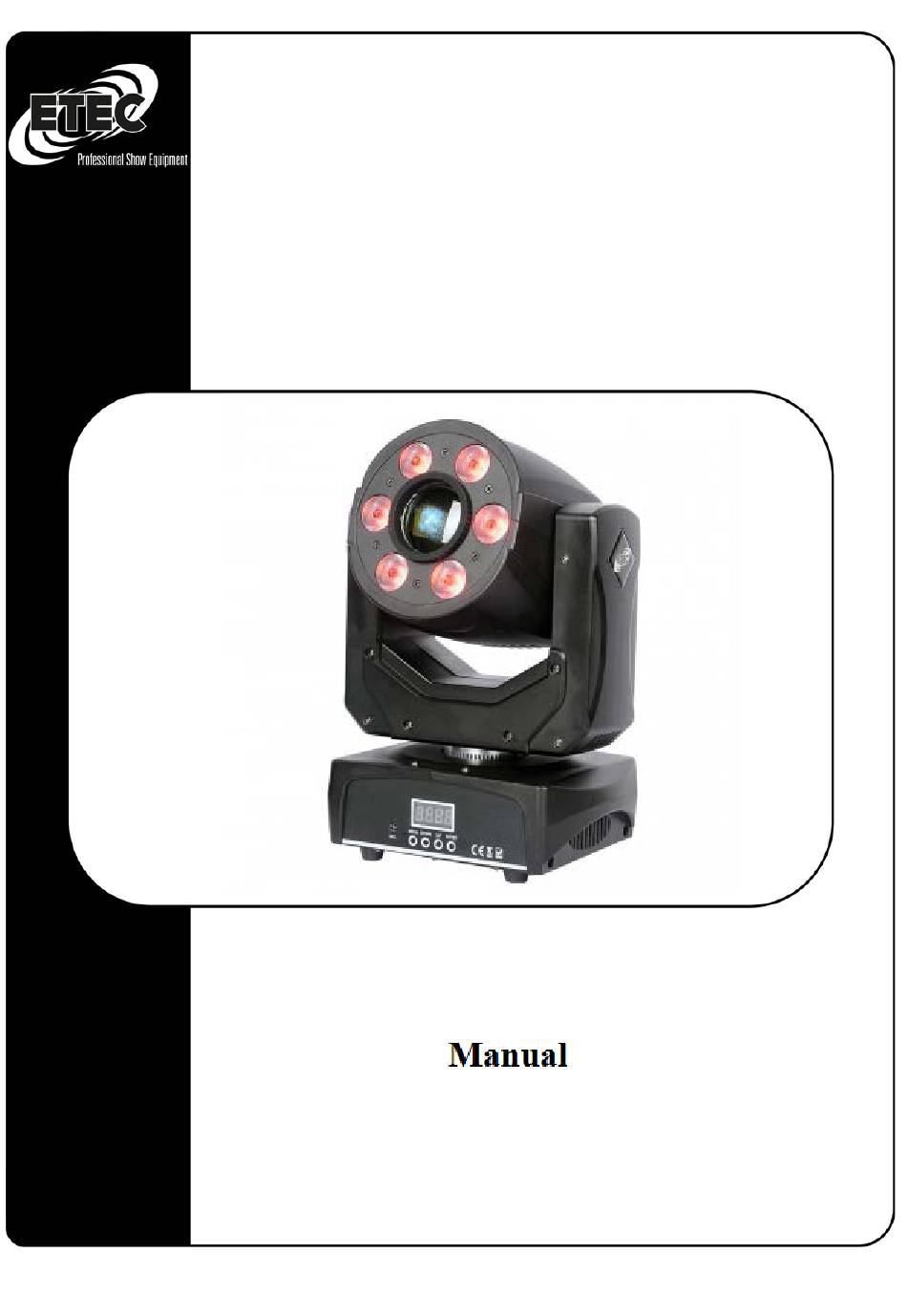

- Page 1 LED Moving Head SPOTWASH E3048...
- Page 2 Congratulations! You have acquired an excellent and innovative product from ETEC. In order to ensure the greatest possible performance of the device, read this manual carefully and familiarize yourself with the most important functions. This manual contains important information on the operation and maintenance of this unit.
- Page 3 Before using the appliance for the first time, ensure that the product has not been damaged by transport. If it is damaged, please contact the seller and do not use it. In order to ensure the perfect condition and the safe handling, the safety instructions and warnings in this manual must be observed.
-
Page 4: Installation
• Turn the power off immediately if it is not working properly. Pack the device carefully (preferably in the original package) and send it to your dealer. • Suitable for adult use only. The light-emitting device must be placed out of the reach of children. - Page 5 The mounting stand or the installation wall must be capable of carrying 10 times the weight of the appliance without deforming. When attaching, the device must be secured with a second safety fixture, such as a suitable safety cable. Never place yourself directly underneath the unit during fixing, dismantling or maintenance.
- Page 6 also be cleaned regularly. Disconnect the device from the mains and wipe the connections with a cloth. Ensure that all connections are completely dry before you connect or reconnect the device to other devices. The operator must ensure that all safety-relevant and mechanical devices are subjected to a technical inspection test by qualified personnel after four years.
- Page 7 Product description: The ETEC SPOTWASH E3048 is a 2in1 LED Moving Head and combines a spot moving head and a wash light in a single device. It is equipped with a white 30 Watt LED Spot with 11° beam angle. Further features of the moving head 6 extremely bright 10W 4in1 RGBW LEDs with 25°...
- Page 8 Product Overview 1. LED Diode 2. Display 3. Display &Buttons: Mode, Up, Down, Enter 4. DMX linking IN/OUT 5. PowerCON IN Functions and settings: LCD display MENU: Function mode selection, such as DMX, Master / Slave, Auto, Sound Mode and Brightness settings DOWN / UP: Previous or Next function Enter: Confirm and save the selection...
- Page 9 Menu overview: Page | 9...
- Page 10 Press ENTER to confirm You can display the low menu only with P018 Page | 10...
- Page 11 Setting up a DMX connection: Page | 11...
- Page 12 DMX is a standardized transmission protocol that allows all DMX-compatible models of the various manufacturers to be connected to one another and controlled by a single mixer. Free DMX data transfer between different DMX devices are used. The connection arrangement between the devices has no influence on the DMX addressing. For example, DMX address 1 has been assigned to a device, and the DMX connection position can be positioned at the beginning, at the end or anywhere in the middle.
- Page 13 Page | 13...
- Page 14 Final Note: Technical and optical changes within the scope of product improvement are reserved - even without prior notice. No liability shall be accepted for printing errors and resulting faulty operation. If in doubt, consult your ETEC dealer! Page | 14...
- Page 15 Space for your notes: _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ _________________________________________________________________________________ Page | 15...
- Page 16 Importeur Hansaring 138-142 48268 Greven Germany Fon: +49 (0) 25 71 - 80 5 40 42 Fax: +49 (0) 25 71 - 80 5 40 41 www.etec-professional.de Page | 16...
