- Page 1 OSO COM 6 DMX controller User manual Any information and illustrations shown in this user manual are subject to change without further notice. User manual version: 2.0 Creation date + author initials: 29-03-2014 RV Revision date + author initials: 29-03-2014 RV...
-
Page 2: Safety Instructions
Safety instructions WARNING! Always keep this device away from moisture and rain! Hazardous electrical shocks may occur! WARNING! Only connect this device to a matching power outlet. This device is intended to work on a specified AC currency. Connecting this device to power outlets with other voltages may result in permanent damage and possible hazardous situations, such as fire or electrical shocks! WARNING! Be careful with every operation of this device. - Page 3 - Familiarize yourself with the functions of the device before use. Do not allow operation of the device by unskilled or unqualified people. - Use of the device in other ways than described in this user manual may cause damage and injury. Ayra does not take responsibility for any damage or injury caused by improper use.
- Page 4 Fuses: - The main fuse of this device is to be found on the rear of the device. In most cases, directly next to the power inlet. - Only replace a fuse for a new one with the same type and rating! Do not use a fuse with a higher or lower rating.
-
Page 5: Box Contents
Box contents Box contents 1x OSO COM 6 controller 1x power supply Unit and accessory inspection - Always check the unit, box and accessories for possible damage before use. If you suspect that something is wrong with the unit, do not connect it to a power source! When you suspect that your unit is broken or damaged, contact your local dealer or a certified technician to inspect the unit. -
Page 6: General Use

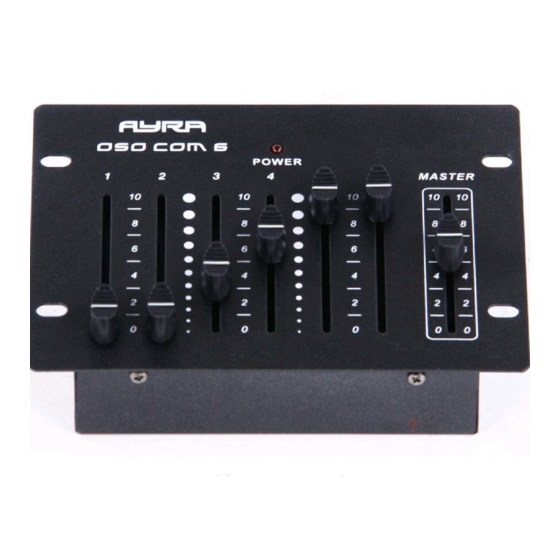

DMX channels This 6-channel DMX controller is suitable for simple venues where DMX-controlled lighting is only controlled with several DMX-channels. The OSO COM 6 is mostly used for controlling RGB LED fixtures, fog machines, special effects and simple static stage lighting. - Page 7 When the battery is connected and inserted properly, the lid can be placed back and tightened with the supplied screws. NOTE: Please remove the battery when the unit will not be used for a longer period of time. ON/OFF switch and Power LED Please note that this device is equipped with an on/off switch.
- Page 8 DMX lighting troubleshooting If you have any problems with DMX lighting, consult this troubleshooting section to solve any difficulties with your product. If this troubleshooting section does not solve your problem, contact your dealer for more information and help. This troubleshooting section contains the most frequent problems and is not a complete collection of possible faults, defects and solutions.
- Page 9 DMX signal (high) power cables parallel to each other. No DMX terminator Apply a DMX terminator at the end of your DMX-chain Signal loss or distortion in DMX Apply a DMX booster in your DMX values chain after 32 fixtures or less. After a maximum of 32 fixtures the DMX signal needs to be refreshed.
-
Page 10: Technical Specifications
Technical specifications Type: OSO COM 6 6-channel DMX controller with master slider - Power input: 9V DC, 100mA min. - DMX output: 3-pin female XLR connector - battery type: 9V PP3 - dimensions: 180 x 135 x 55 mm - weight: approx. 0.800 kg Any information and illustrations shown in this user manual are subject to change without further notice.
