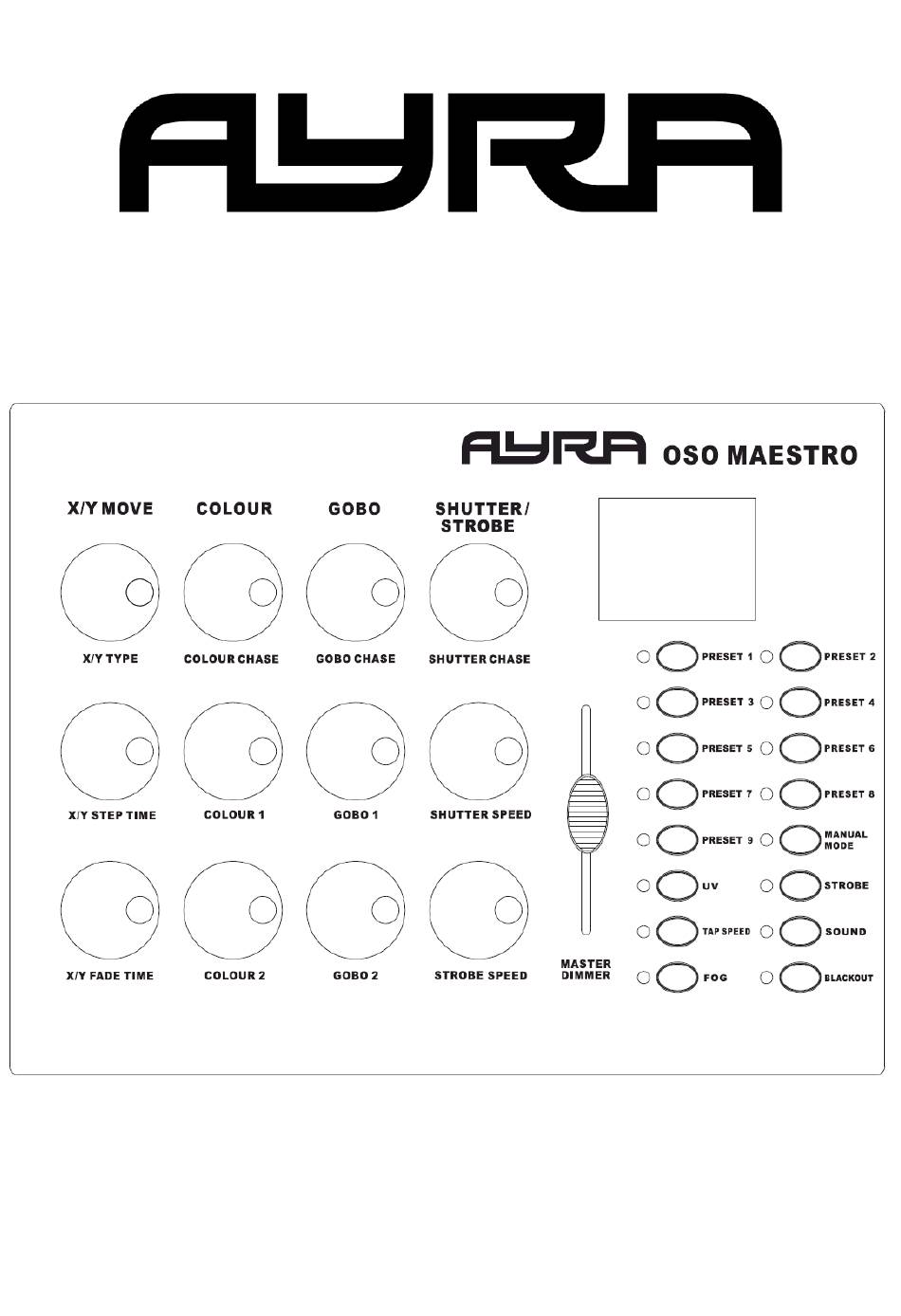

- Page 1 OSO Maestro DMX controller User manual The information in this user manual is subject to change at any time without notice. Version: 1.0 Date of creation and author's initials:31-03-2018 RV Revision date and author's initials: -...
- Page 2 'Box contents' are included in the package. In the event that the OSO Maestro 406 does not function properly, or if you have any issues while operating it, please remove the plug from the power socket and contact your dealer for assistance.
- Page 3 Safety instructions WARNING! Keep this device away from moisture, water and rain to avoid the chance of electric shocks. WARNING! Only connect this device to a suitable power socket. This device functions on a specific power voltage. If it is plugged into a power socket with a different voltage, it could result in permanent damage and even dangerous situations such as fire or electric shocks.
- Page 4 - Should the device not be used in the manner described in this user manual, damages or even injuries could occur. Ayra cannot be held responsible for any injuries or damages that occur as a result of improper use of this product.
- Page 5 Only suitable for indoor use: this product was only designed for indoor use. The maximum environmental temperature must not exceed 40 degrees Celsius (104 degrees Fahrenheit). Contact: Ayra professional lighting products Verrijn Stuartweg 18 4462 GE Goes The Netherlands Please do not send any products to this correspondence address.
- Page 6 Guidelines and operation of this device 1. Select X/Y type movement program 12. Select Stroboscope speed 2. Select X/Y step time speed 13. Master Dimmer fader (0-100% intensity) 3. Select X/Y fade time speed 14. Preset buttons 1-9 4. Select Colour chase 15.
- Page 7 1. DMX output (3-pin XLR) 4. On/off switch 2. DMX output (3-pin XLR) 5. IEC C5 power input with fuse holder 3. Microphone for audio-controlled mode The information in this user manual is subject to change at any time without notice. Version: 1.0 Date of creation and author's initials:31-03-2018 RV Revision date and author's initials: -...
- Page 8 Operation and mounting The OSO Maestro works differently than most DMX controllers. It is very user-friendly in that you don't need to create an entire program to put together an impressive light show. It's important to know which devices are most compatible with the OSO Maestro DMX controller. Generally speaking, it only works with specific Ayra lighting fixtures.
- Page 9 Select a movement program and enter the Fade Time and Step Time values correctly. The OSO Maestro has already been equipped with various movement programs for you to choose from. Of course, some movement programs only work with fixtures that have moving capability such as scanners or moving heads.
- Page 10 To select a movement program and determine the speed, use the 3 rotary knobs under the 'X/Y move' section. Each of these controls has its own function: - X/Y Type: Use this knob to select one of the 11 different built-in movement programs. Each program consists of pre-programmed X and Y positions that are played in a continuous loop.
- Page 11 Gobo section Because every Ayra fixture is equipped with various types and quantities of gobos, the OSO Maestro has corresponding gobo wheels so the user can choose between the 9 available gobos. Because different devices have different gobos, the Gobo section will usually deviate so that if you select Gobo 3 using the Gobo 1 wheel, you may end up with 2 different gobos on 2 different devices.
- Page 12 In this user manual, we will refer to this as activated and deactivated LEDs. Working with presets The OSO Maestro has a variety of built-in effects on board that you can customise as desired, save and call up when needed. The OSO Maestro offers 9 presets that are very easy to use.
- Page 13 Manual mode As well as the 9 presets, the OSO Maestro also features a Manual mode that enables you to make adjustments on the fly that are saved automatically. The Manual mode is a practical way to insert a lot of effects when toggling between presets or to accompany a particularly busy section of music, for instance.
- Page 14 Sound The OSO Maestro is equipped with a built-in microphone that is located on the rear of the controller. The sound sensitivity is determined digitally by the controller, as explained earlier in this manual. The optimal value depends on the audio volume in any given situation as the microphone only reacts to the bass frequency in the music.
- Page 15 It is possible to drive multiple machines at once by assigning them the same DMX address. All machines will do the same thing. Blackout The Blackout button is very important and is automatically activated when the controller is turned on. When pressed, the Blackout button overrides all control and brings all values back to zero.
- Page 16 Using the OSO Maestro as a desktop device The OSO Maestro is a compact controller that can be used as a desktop device. It fits on a desk, table, DJ booth or shelf and it has rubber feet underneath that provide plenty of grip. The slanted construction ensures an optimal overview of the controls and the display on the control panel.
- Page 17 DMX lighting troubleshooting If you have a problem with your device, please consult the troubleshooting section for possible solutions. If, after consulting this section, the problem remains unresolved, please contact your dealer for more information and/or help. This troubleshooting section contains information on how to solve the most common DMX light effect problems, but it does not and cannot cover every eventuality.
- Page 18 Signal loss or interference in the Close the DMX circle with a DMX circle terminator or connect a booster after maximum 32 fixtures. The device is not reacting to DMX Incorrect DMX channel mode Check if the device is set to the commands correct DMX channel mode The pan and tilt values do not...
- Page 19 Specifications - versatile, user-friendly controller - specifically designed for use with Ayra lighting fixtures - also compatible with various universal DMX-controlled lighting fixtures - programming knowledge as with traditional DMX controllers not required - various built-in, pre-programmed effects for live use...
