Summary of Contents for Traffic Logix SafePace Evolution 18FM

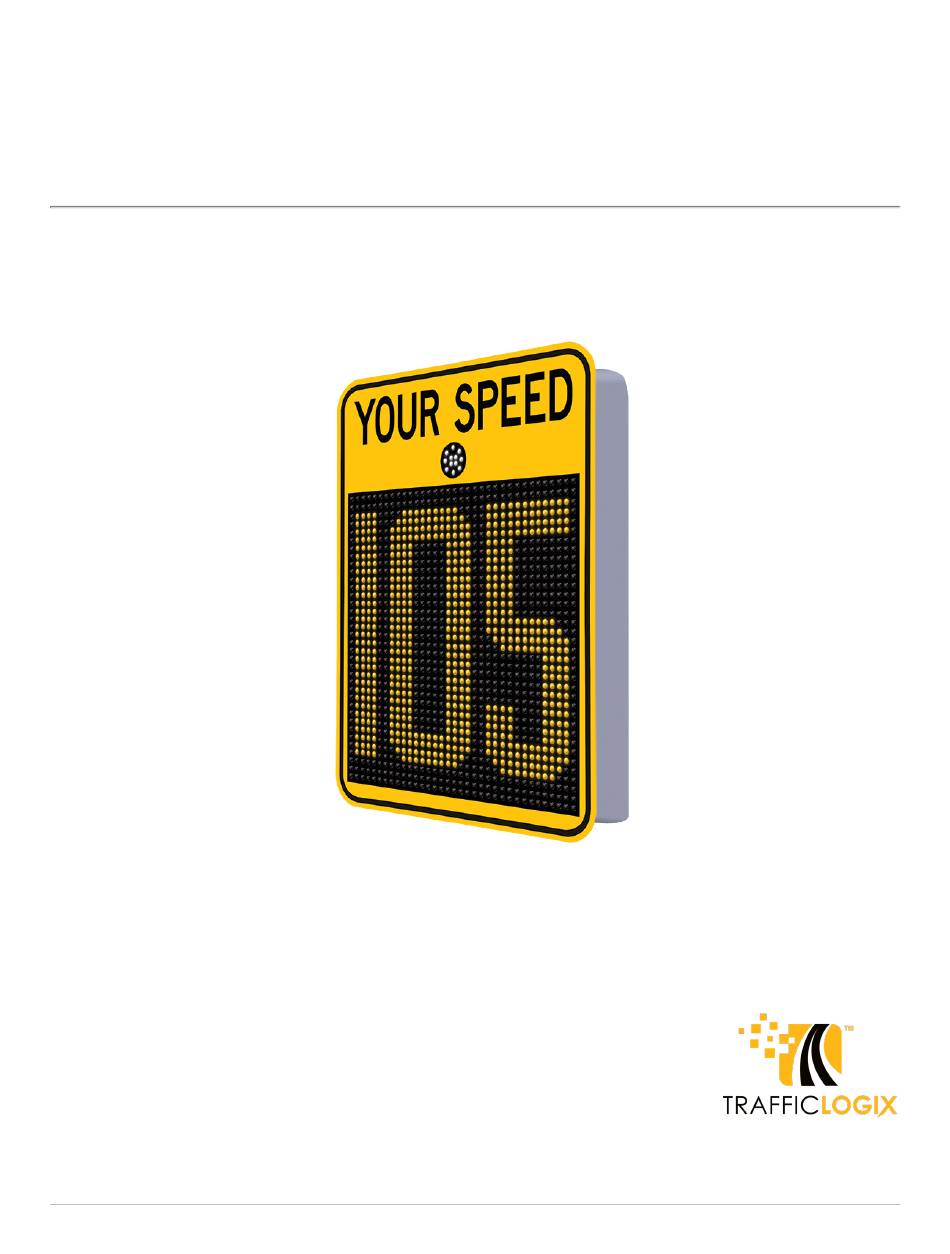

- Page 1 ® RAFFIC OGIX ® E 18FM I VOLUTION NSTALLATION ANUAL Radar Sign Installation Copyright © 2019 Traffic Logix Corporation All rights reserved.
- Page 2 Traffic Logix Corporation. This document is supplied as a guide for the SafePace Evolution 18FM product. Reasonable care has been taken in preparing the information it contains. However, it is possible that this document contains omissions, technical inaccuracies, or typographical errors.
-
Page 3: Table Of Contents
ABLE OF ONTENTS Chapter 1 Introduction Description About this Manual Documentation Conventions Using Additional Customer Resources Online Customer Area Contacting Technical Support Chapter 2 Installing the SafePace EV18FM Selecting a Site for the Sign Choosing a Position for the Sign Mounting SafePace EV18FM Signs Chapter 3 Power Options for your Sign... -
Page 4: Introduction
Chapter 1 NTRODUCTION SafePace® Evolution 18FM Installation Manual p. 4... -
Page 5: Description

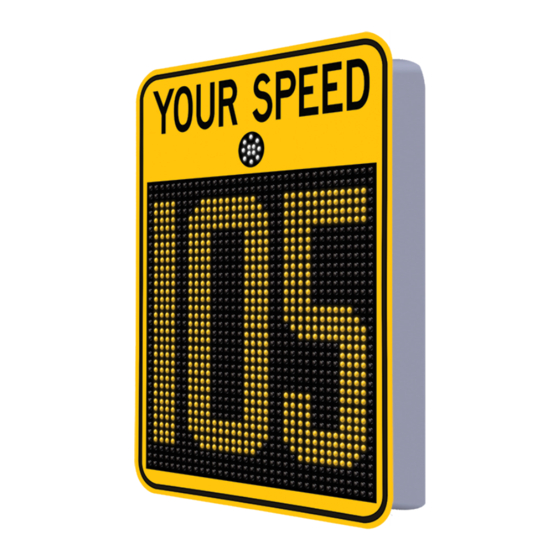

Description Description The SafePace EV18FMvariable messaging sign is a versatile speed display and dynamic messaging solution. It allows you to display the message of your choice and vehicle speeds in bright, large, three-digit display that can be seen even from a distance. It offers speed-activated digit color changes to alert speeders, displaying their vehicle speed with extra-large 18-inch LED digits that can be seen from up to 750 feet away. -
Page 6: About This Manual
About this Manual About this Manual This manual describes the installation of the SafePace EV18FM sign, along with an optional solar panel, to the side of a pole. This manual also describes the wiring specifications for solar and battery powered configurations. -
Page 7: Using Additional Customer Resources
Provides convenient access to the latest versions of our software applications and utilities. Support Videos Provides access to several videos that can help you get up to speed with your Traffic Logix product. Product Documentation Provides access to the most recent versions of our product documentation. If you are unable to access our online documentation, please contact our Technical Support Department to discuss alternatives. -
Page 8: Installing The Safepace Ev18Fm
Chapter 2 EV18FM NSTALLING THE There are several methods and hardware options available for the installation of the SafePace EV18FM sign. SafePace® Evolution 18FM Installation Manual p. 8... -
Page 9: Selecting A Site For The Sign
Selecting a Site for the Sign Selecting a Site for the Sign The site you select for the sign may vary with the application in which the SafePace EV18FM radar sign is being used. However, you should generally adhere to the following guidelines: Choose a location where the line of sight from the radar sign to the vehicle will be uninterrupted. -
Page 10: Choosing A Position For The Sign
Choosing a Position for the Sign Choosing a Position for the Sign Similar to other road signs, the SafePace EV18FM radar sign should be installed near the closest lane of traffic, although off the actual road. The recommended height of the lower edge of the radar speed sign is approximately 7 feet above the surface of the road. -
Page 11: Mounting Safepace Ev18Fm Signs
Mounting SafePace EV18FM Signs Mounting SafePace EV18FM Signs The SafePace EV18FM sign includes a Pole Banding Mounting system. This is a fairly simple type of mounting and it requires no special knowledge to easily install the sign. Installing the Pole Bracket You can install the Pole Bracket on any type of standard pole with the included banding straps. - Page 12 Mounting SafePace EV18FM Signs To mount the sign: Align the mounting hooks on the back of the sign with the slots in the bracket. Slide the sign down the bracket. Use the supplied padlock to lock the sign in place. SafePace®...
- Page 13 Mounting SafePace EV18FM Signs To dismount the sign: Unlock and remove the padlock. Slide the sign up and off of the Pole Bracket. SafePace® Evolution 18FM Installation Manual p. 13...
-
Page 14: Power Options For Your Sign
Chapter 3 OWER PTIONS FOR YOUR The SafePace EV18FM sign is offered in several powering models. Depending on what model you have purchased, powering the sign will vary. The available power options are as follows: Solar powered (uses one or more rechargeable batteries for backup) »... -
Page 15: Solar Power
Solar Power Solar Power The Solar powered model of the SafePace EV18FM sign includes a solar panel and mounting bracket, one or more rechargeable batteries, and a solar charger. The solar panel powers the sign when exposed to sunlight while at the same time charging the batteries to provide a power backup for night-time and cloudy day use. The solar panel is quick to install and should suffice in most installations. -
Page 16: Wiring The Solar Panel To The Sign
Wiring the Solar Panel to the Sign The solar panel should be angled 15 degrees above the latitude of the installation site. For example, if the latitude of the installation site is 45 degrees then the solar panel should be installed at an angle of 60 degrees, as shown. - Page 17 Wiring the Solar Panel to the Sign To wire the solar panel to the sign: Open the sign and make sure that any battery connectors are properly connected and the sign is powered on. Close the sign. It is vitally important, whenever you close the sign, that you close and lock all of the latches ARNING properly to avoid water infiltration as this could damage the sign and void your warranty.
-
Page 18: Battery Power
Battery Power Battery Power Battery powered signs come with one or more rechargeable batteries. Depending on your preferences these batteries will be either lithium or lead acid. Though they are shipped with the sign, typically, the batteries are not installed in the sign. When you receive the sign, you need to remove the batteries from their packaging and install them in the sign. - Page 19 Installing Lead Acid Batteries in SafePace Evolution Signs Proper battery care and maintenance is required. Improper care and maintenance of ARNING batteries may void the product warranty. We strongly recommend that you do the following: • Replace the batteries every TWO years, in order to prevent damage to the sign. •...
-
Page 20: Sign Operation And Maintenance
Chapter 4 PERATION AND AINTENANCE SafePace® Evolution 18FM Installation Manual p. 20... -
Page 21: Opening And Closing The Sign
Opening and Closing the Sign Opening and Closing the Sign Every SafePace EV18FM sign has two doors on the back of the sign that you can use to access the batteries, controller card and solar charger. These doors also help to protect the internal components of the sign from vandalism as well as water infiltration. -
Page 22: Operating Your Sign
Operating Your Sign Operating Your Sign After your sign is mounted and powered, you can connect to, and manage, it remotely using SafePace® Cloud. For more information on operating your sign with SafePace® Cloud, refer to the Web Director User Guide. -
Page 23: Replacing Key Components
Replacing Key Components Replacing Key Components The SafePace EV18FM sign is comprised of the following key electronic components (and respective quantities): Controller Card (1) » Radar Head (1) » SIMFin GSM/GPRS Controller (1) - for SafePace® Cloud signs » LED Matrix Board PCB (8) »... -
Page 24: Warranty
Terms of Use and any Applicable Safety Laws. Buyer agrees that there shall be no coverage or benefits of any kind under this limited warranty if it is determined by Traffic Logix that the Product was not installed or used in accordance with the Conditional Terms of Use or Applicable Safety Laws, or if the Product has been SafePace®... - Page 25 Warranty altered in any way by anyone other than Traffic Logix, or if the Product has been subject to any misuse or accident. In addition, Buyer assumes and agrees to indemnify Traffic Logix for all risk, liability or expense that results from any installation or use of the Product that is not in accordance with the Conditional Terms of Use or any Applicable Safety Laws.
