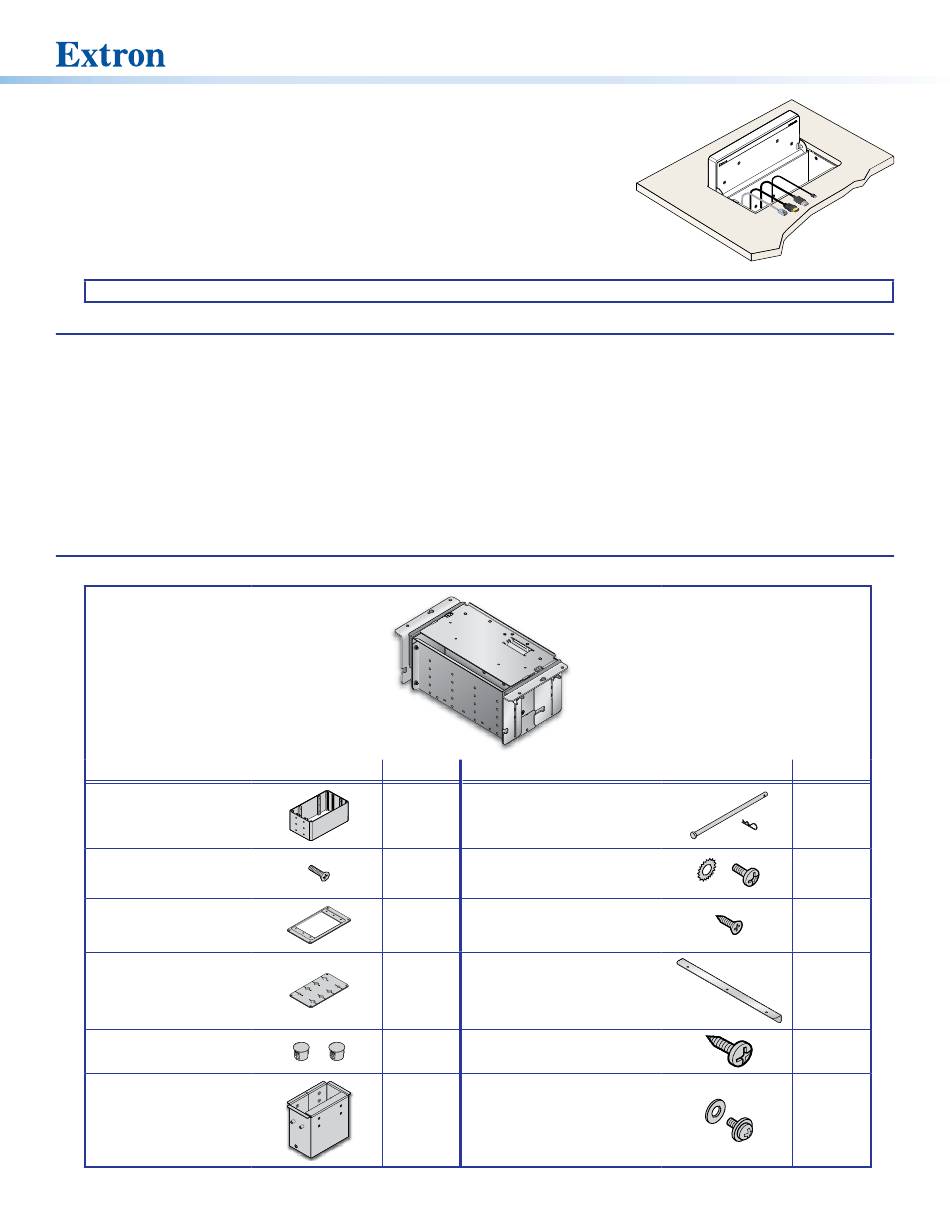

Cable Cubby 1252 MS • Installation Guide
This guide provides instructions for an experienced technician to install the Extron
Cable Cubby 1252 MS.

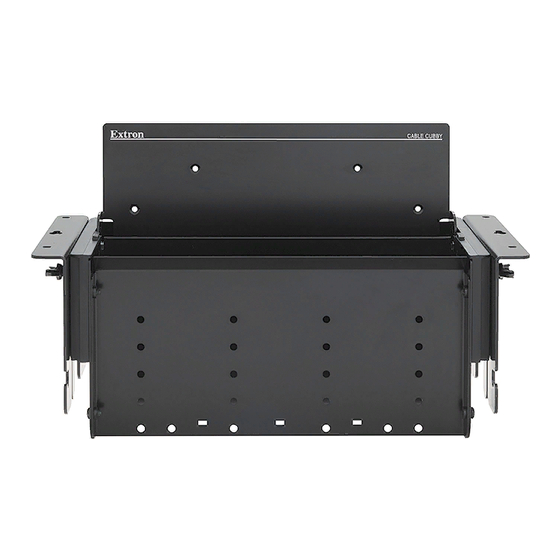

The Cable Cubby 1252 MS is a furniture-mounted enclosure for cable access,
connections, and AC power. The Cable Cubby 1252 MS provides the freedom to either
match the surface of the table or use a unique lid design that complements the room décor.
Unused cables can be stored out of the way while remaining connected to the presentation system.
NOTE:
This product is intended for use only with Extron UL listed power modules (not included).
Planning
Check with local and state regulations before starting the installation
…
Ensure that the planned installation complies with national and local building and electrical codes.
…
Ensure that the planned installation complies with the Americans with Disabilities Act or other accessibility requirements.
Check all parts and equipment before installation
…
Ensure that all parts are present in the kit.
…
Ensure that necessary tools and equipment are available for the installation.
Kit Contents
Part
Connectivity bracket
#4-40 flat head module
screws
AAP frame plate
Cable grommet plate
Hole plugs
Retractor bracket
Quantity
1
Retractor pin and clip
4
#4 flat head lid insert wood
1
1
6 (3/8"),
#8 pan head wood mounting
2 (1/4")
ZipClip screws and washers
1
(for mounting of optional
ZipClip power supply)
t r o
n
E x
Part
Quantity
1
8
4
2
12
2
1
