Extron electronics WPD 120 A Installation Manual

WPD Series Wallplates • Installation Guide

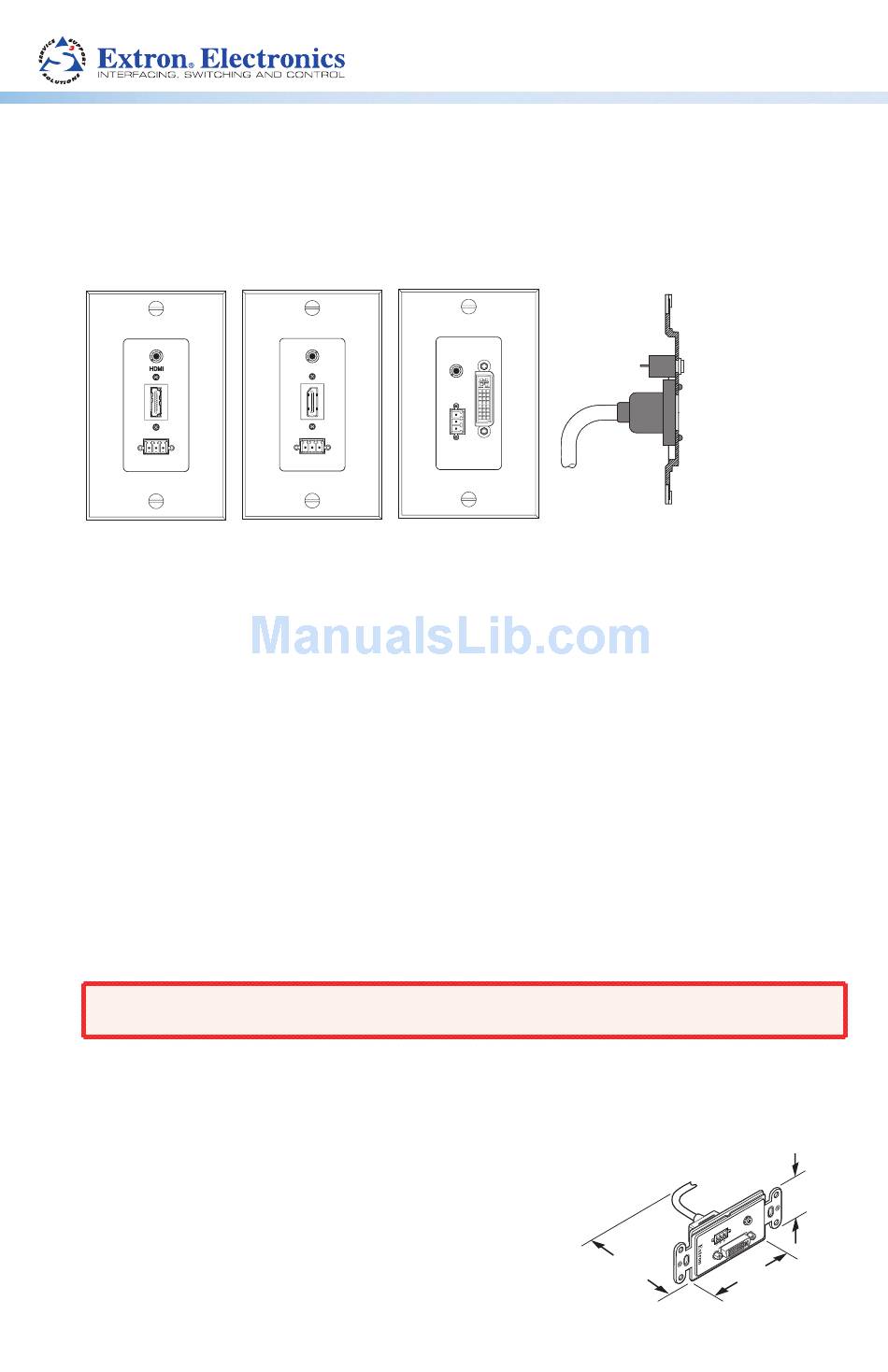

The Extron WPD Series (WPD 110 A, WPD 120 A and WPD 130 A) are single gang
pass-through wallplates with HDMI, DisplayPort, or DVI connectors and 10-inch pigtails.
All models can be installed in single gang junction boxes, and include a Decora
plate. The models are as follows:
A B C
e
WPD 110 A
WPD 110 A — HDMI, stereo audio, and control
z
о HDMI female to HDMI female connector on a 10-inch pigtail
о 3.5 mm stereo audio jack with solder tabs
о 3-pole captive screw connector (for pass-through signals such as IR and RS-232)
WPD 120 A — DisplayPort, stereo audio, and control
z
о
DisplayPort female to DisplayPort female connector on a 10-inch pigtail
о 3.5 mm stereo audio jack with solder tabs
о 3-pole captive screw connector (for pass-through signals such as IR and RS-232)
WPD 130 A — DVI, stereo audio, and control
z
о
DVI-D female to DVI-D female connector on a 10-inch pigtail
о
3.5 mm stereo audio jack with solder tabs
о
3-pole captive screw connector (for pass-through signals such as IR and RS-232)
Install the wallplate directly into the wall using the supplied mud ring or a UL-approved
1-gang junction box (not supplied). Follow the steps in the "Installation" section on page 2.
Planning -
Check the Proposed Installation Location
Before starting the installation it is important that you do the following:
WARNING: Failure to check these items may result in property damage, personal
injury, or both.
Ensure there are no utility cables or pipes at the intended location that might be
c
damaged or cause injury when you are installing the device.
Check that the installation meets the local and state regulatory requirements, including
c
building, electrical, and safety codes, and UL and ADA accessibility requirements.
During installation ensure the space behind the device
is sufficient for the bend radius of the pigtail. The
recommended minimum bend radii are as follows:
WPD 110A = 2.0 inches.
WPD 120A = 2.0 inches.
WPD 130A = 2.4 inches (see image at right)
DISPLAYPORT
A B C
e
WPD 120 A
CONTINUED ON SIDE 2
DVI
A
B
C
e
WPD 130 A
(60 mm)
®
style trim
Side View
2.37"
4.1"
(104 mm)
WPD 130 A
1.41"
(36 mm)
