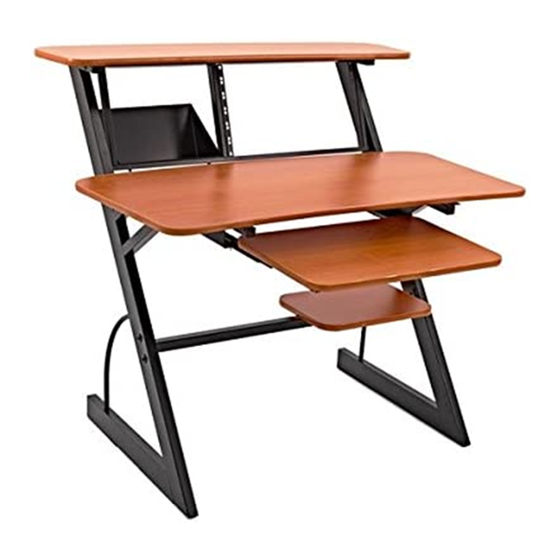

- Page 1 4 Tier Home Studio Desk by Gear4music, 6U Assembly Guide SWS-115...
- Page 2 SWS-115 Page 1 of 7 1. Attach the main legs together using the bottom cross-support bar and upper 6u rack as pictured. Tighten the bolts using the included allen key. Stick the EVA pads under the legs if necessary.
- Page 3 SWS-115 Page 2 of 7 2. Attach the keyboard shelf support bracket as pictured. Tighten the bolts.
- Page 4 SWS-115 Page 3 of 7 3. Place the keyboard shelf in the support brackets, bolt in place. A safety screw is already installed, remove to let the shelf slide further out.
- Page 5 SWS-115 Page 4 of 7 4. Attach the small shelf brackets to the bottom cross-support bar as pictured.
- Page 6 SWS-115 Page 5 of 7 5. Attach the lower shelf onto the mounts. You will need to pre-drill holes for the wood screws.
- Page 7 SWS-115 Page 6 of 7 6.Place the main shelf on the support brackets at the desired depth and mount using the wood screws. You will need to pre-drill the holes. Attach the steel rack shelf as shown and tighten the bolts.
- Page 8 SWS-115 Page 7 of 7 7. Place the top shelf on the support brackets at the desired depth, as pictured. Mount in place using the wood screws.
