TCL-7001
LOCAL AIR CONDITIONER
INSTRUCTION MANUAL
Dear consumer, please read these instructions carefully before use in
order to avoid damage due to incorrect use and to better understand the
functions of this product. Please pay particular attention to the safety
guide. If you pass the device on to a third party, these Operating
Instructions must also be handed over. Please keep them for future
references.
1

Advertisement

Table of Contents
loading

Related Manuals for TECHWOOD TCL-7001

Summary of Contents for TECHWOOD TCL-7001

  • Page 1 TCL-7001 LOCAL AIR CONDITIONER INSTRUCTION MANUAL Dear consumer, please read these instructions carefully before use in order to avoid damage due to incorrect use and to better understand the functions of this product. Please pay particular attention to the safety guide.

  • Page 2: Important Safeguards

    IMPORTANT SAFEGUARDS Please read these instructions carefully before use.  Keep present instructions for future references.  Check that your mains voltage corresponds to that stated on  the appliance. Only use the appliance for domestic purposes and household  or similar applications such as: -staff kitchen areas, in shops, offices and other working environments;...
  • Page 3 they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Always disconnect the appliance from the supply if it is left ...
  • Page 4 Never use any other connector than the one provided.  Never move the appliance by pulling the cord. Make sure the  cord cannot get caught in any way. Never wind the cord around the appliance and do not bend it ...

  • Page 5: General Information

    The item must not be left unattended when it is connected to  main supply. The item is not to be used, if it has been dropped or if there  are visible signs of damage or if it is leaking. This appliance is only intended for household use.

  • Page 6: Cleaning And Maintenance

    Protection, certifies that for each of the five hazardous substances • Lead • Mercury • (hexavalent) chromium • products for protection against flames PBB and PBDE, the peak concentration is equal to or less than 0.1% of the weight of homogeneous material, and 0.01% for the 6th •...

  • Page 7: Safety & Security

    SAFETY SECURITY The appliance shall be installed in accordance with national wiring regulations. Special instructions for flammable refrigerants WARNING Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer. The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater.
  • Page 8 The appliance shall be stored so as to prevent mechanical damage from occurring. Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorises their competence to handle refrigerants safely in accordance with an industry recognised assessment specification.

  • Page 9: Information On Servicing

    INFORMATION ON SERVICING Checks to the area Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimised. For repair to the refrigerating system, following precautions shall be completed prior to conducting work on the system.
  • Page 10 extinguishing equipment shall be available to hand. Have a dry powder or CO2 fire extinguisher adjacent to the charging area. No ignition sources No person carrying out work in relation to a refrigeration system which involves exposing any pipe work shall use any sources of ignition in such a manner that it may lead to the risk of fire or explosion.
  • Page 11 – the charge size is in accordance with the room size within which the refrigerant containing parts are installed; – the ventilation machinery and outlets are operating adequately and are not obstructed; – if an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the presence of refrigerant;...
  • Page 12 1 During repairs to sealed components, all electrical supplies shall be disconnected from the equipment being worked upon prior to any removal of sealed covers, etc. If it is absolutely necessary to have an electrical supply to equipment during servicing, then a permanently operating form of leak detection shall be located at the most critical point to warn of a potentially hazardous situation.
  • Page 13 Replace components only with parts specified by the manufacturer. Other parts may result in the ignition of refrigerant in the atmosphere from a leak. Cabling Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse environmental effects.
  • Page 14 as the chlorine may react with the refrigerant and corrode the copper pipe-work. If a leak is suspected, all naked flames shall be removed/extinguished. If a leakage of refrigerant is found which requires brazing, all of the refrigerant shall be recovered from the system, or isolated (by means of shut off valves) in a part of the system remote from the leak.
  • Page 15 to a vacuum. This process shall be repeated until no refrigerant is within the system. When the final OFN charge is used, the system shall be vented down to atmospheric pressure to enable work to take place. This operation is absolutely vital if brazing operations on the pipe-work are to take place.
  • Page 16 recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of reclaimed refrigerant. It is essential that electrical power is available before the task is commenced. a) Become familiar with the equipment and its operation.
  • Page 17 Labelling Equipment shall be labelled stating that it has been de- commissioned and emptied of refrigerant. The label shall be dated and signed. For appliances containing flammable refrigerants, ensure that there are labels on the equipment stating the equipment contains flammable refrigerant. Recovery When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good practice that all...
  • Page 18 The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery cylinder, and the relevant waste transfer note arranged. Do not mix refrigerants in recovery units and especially not in cylinders. If compressors or compressor oils are to be removed, ensure that they have been evacuated to an acceptable level to make certain that flammable refrigerant does not remain within the lubricant.

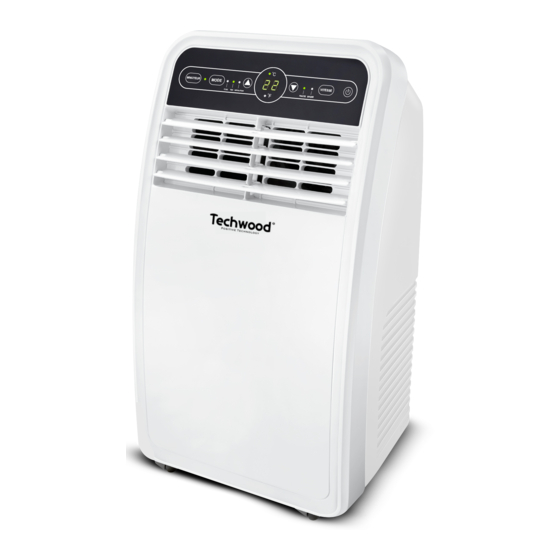

  • Page 19 TO KNOW THE DEVICE 1. handle 2. Control panel 3. Adjustable ventilation grille 4. Roulette 5. Air outlet 6. Air inlet (connectable) 7. Drainage nozzle 8. Remote control. 9. Vent pipe for hot air. 10. Window adjustable sealing plate (Connectable to the drain pipe.)

  • Page 20: Control Panel And Remote Control

    CONTROL PANEL AND REMOTE CONTROL 1. Power button Press the key to turn the device On or Off. 2. Mode key Press the key to select : Cool, Vent, Dry. 3. 2-function adjustment keys. A. Temperature B. operating time. In "cool" mode Press these buttons to increase or decrease the set temperature.

  • Page 21: Installation

    • Disconnect the power cable from the power supply before performing maintenance, cleaning, and accessory mounting. • Never modify the device. INSTALLATION A. Place the unit in a flat, dry place and keep it 50 cm away from any surrounding object.
  • Page 22 Incorrect installation will affect the work of the air conditioner. Ensure that air can flow easily through the air duct. The sealing plate fits with vertical and horizontal windows. The exhaust duct is specially designed for this model. Do not replace or lengthen it.
  • Page 23 F), the compressor stops. When the temperature rises to an ambient temperature above 17 ° C, the compressor protection system will restart it 3 minutes later). Notes : In dehumidification mode : • the fan operates by default at low speed and the speed of the fan cannot be adjusted.

  • Page 24: Specifications

    SPECIFICATIONS Power supply 220-240V~ 50Hz Norm Class I Refrigerant R 290 / 150g Sound level 65 dB(A) Made in PRC The characteristics can change without prior notice. CAUTION: In order to minimize the risks of electric shock, In the event of breakdown, not to open the case but to call upon a qualified technician for repairs.
  • Page 25 Product Information Supplier name TECHWOOD Model identifier TCL-7001 Rated value Measured value Capacity for cooling 2.05 kW 2.017 kW Capacity for heating Power input cooling 0.785 kW 0.773 kW Power input for heating Energy efficiency ratio 2.60 2.61 Coefficient of performance...
