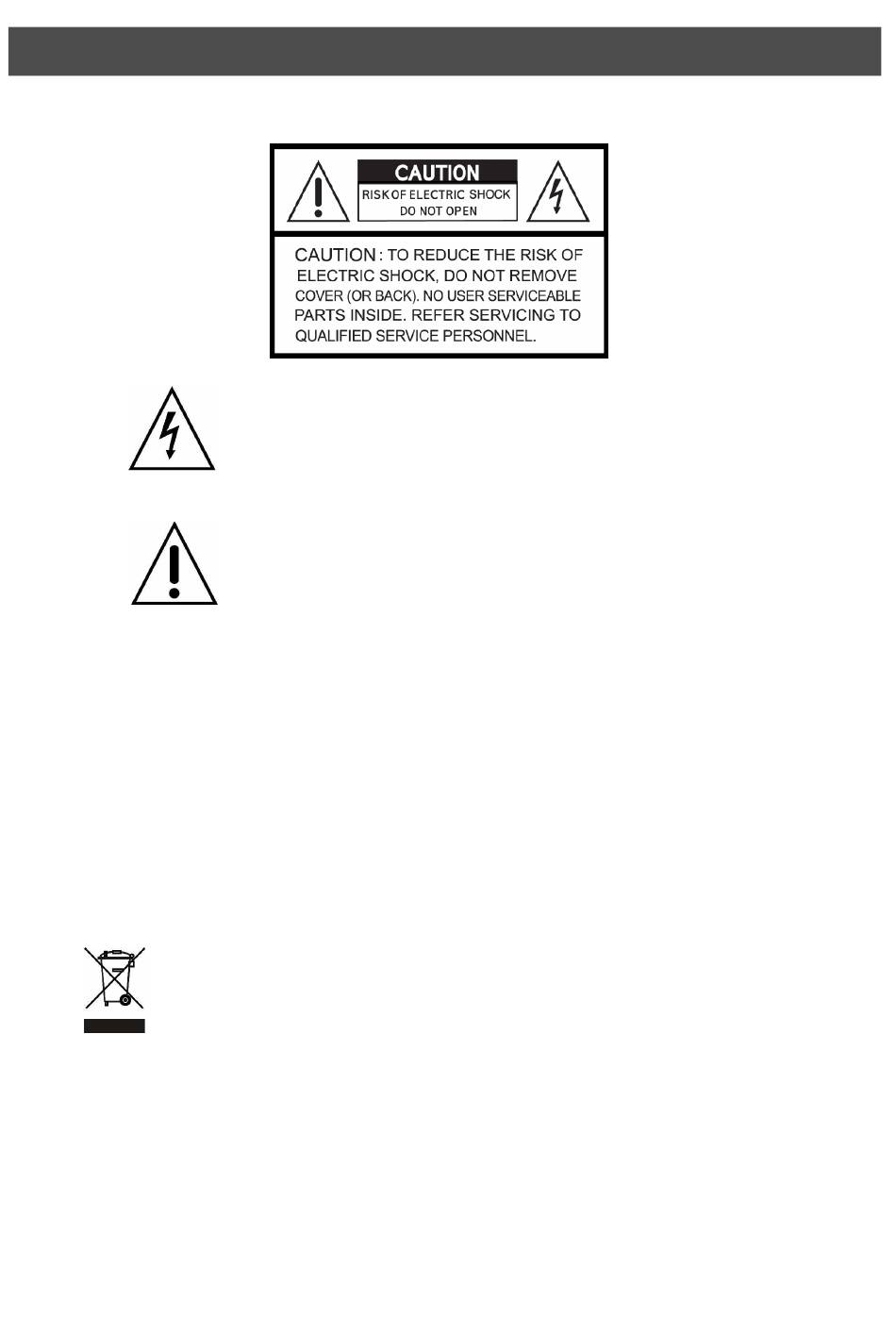

WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
NOTE: This equipment has been tested and found to comply with the limits for a class
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
Disposal of Old Electical & Electronic Equipment
(Applicable in the European Union and other European countries with separate
collection systems)
This symbol on the product or on its packaging indicates that this product shall not be treated as
household waste. Instead it shall be handed over to the applicable collection point for the recycling
of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will
help prevent potential negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product. The recycling of materials will
help to conserve natural resources. For more detailed information about recycling of this product,
please contact your local city office , your household waste disposal service or the shop where you
purchased the product.
This symbol is intended to alert the user to the presence of unprotected
"Dangerous voltage" within the product's enclosure that may be strong
enough to cause a risk of electric shock.
This symbol is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
WARNING
1
Advertisement
Chapters
Table of Contents
Related Manuals for Artnix ANX-16480
Summary of Contents for Artnix ANX-16480
- Page 1 WARNING This symbol is intended to alert the user to the presence of unprotected “Dangerous voltage" within the product's enclosure that may be strong enough to cause a risk of electric shock. This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
- Page 2 PRECAUTION All the safety and operating instructions must be read before the unit is operated. • Make sure to switch the power off before you install the DVR. • There is the danger of an electric shock if the DVR is opened by an unqualified service engineer or installer.
-
Page 3: Table Of Contents
CONTENTS TABLE OF CONTENTS 1. FEATURE LIST ---------------------------------------------------------------------------------- 2. PACKING DETAIL ------------------------------------------------------------------------------------------ 3. LOCATION AND CONTROL ----------------------------------------------------------------- 3.1 FRONT PANEL CONTROLS ------------------------------------------------------------------------------- 3.2 REAR PANEL CONNECTORS ----------------------------------------------------------------------------- 4. INSTALLATION --------------------------------------------------------------------------------------------- 4.1 TOTAL CONNECTION LAY-OUT ------------------------------------------------------------------------- 4.2 INDIVIDUAL CONNECTION -------------------------------------------------------------------------------- 4.2.1 RACK MOUNT ----------------------------------------------------------------------------------- 4.2.2 CAMERA ------------------------------------------------------------------------------------------ 4.2.3 AUDIO --------------------------------------------------------------------------------------------- 4.2.4 MONITOR -----------------------------------------------------------------------------------------------... - Page 4 CONTENTS 6. SETUP MENU ------------------------------------------------------------------------------------------------------ 6.1 QUICK SETUP ----------------------------------------------------------------------------------------------- 6.2 SCREEN ------------------------------------------------------------------------------------------------------ 6.2.1 POSITION --- --------------------------------------------------------------------------------------- 6.2.2 AUTO SEQUENCE ------------------------------------------------------------------------------ 6.2.3 DISPLAY ---- --------------------------------------------------------------------------------- ----- 6.2.4 TITLE ---- ----------------------------------------------------------------------------------------- 6.2.5 MULTI SCREEN ----------------------------------------------------------------------------------- 6.2.6 COVERT -------------------------------------------------------------------------------------------- 6.2.7 SPOT ------------------------------------------------------------------------------------------------ 6.3 RECORD ------------------------------------------------------------------------------------------------------- 6.3.1 RECORD SETUP -------------------------------------------------------------------------------- 6.3.2 RECORD PROGRAM ----------------------------------------------------------------------------- 6.3.3 IMAGE QUALITY-----------------------------------------------------------------------------...
- Page 5 CONTENTS 7. EXTERNAL TERMINAL INFORMATION ------------------------------------------------- 7.1~2 RS-422/485 / T.ADJ------------------------------------------------------------------------------------- 7.3~4 RELAYOUT / ALARM ------------------------------------------------------------------------------------ 7.5~6 VGA / SERIAL ----------------------------------------------------------------------------------------- 7.7~8 ETHERNET/USB / REMOTE ---------------------------------------------------------------------- 8. SPECIFICATIONS -------------------------------------------------------------------------- 9. 256 CAMERA INTEGRATION SYSTEM -------------------------------------------------- 10. HDD INSTALLATION ------------------------------------------------------------------------ 10.1 INTERNAL HDD INSTALLATION ------------------------------------------------------------------ 10.2 DVD±RW (or CD-RW)INSTALLATION -------------------------------------------------------------- JUMPER SETTING INFORMATION -------------------------------------------------------- 11.
- Page 6 FEATURES Features Chapter 1 Operation Playback, recording, backup and transmission simultaneously Real time single or multi-screen display Pan & Tilt, 2X/4X digital zoom and PIP display Easy operation by Jog shuttle, IR remote controller, external keypad controller and USB 2.0 Mouse Hidden camera option (covert) User-friendly setup menu and operation Playback...
- Page 7 FEATURES Network Live and playback viewing Remote control on a networked PC with the exclusive client viewer (The viewer software is supplied for free.) Flexible connections - 10/ 100 Mbps Ethernet/ ADSL Up to 16 network users access simultaneously Audio transmission between DVR and Client Dynamic IP is available External storage Automatic backup to selected backup HDD (Event backup/ Mirroring)
-
Page 8: Packing Detail
PACKING DETAIL Packing Detail Chapter 2 1. DVR 4. Remote controller (Option) 2. Network Viewer Program CD 3. User’s Manual 5. R-HDD Rack Key 6 Rack Mount 7. Power Cord ack Key 8. Battery 9. HDD Screw ack Key ack Key CONTENTS 1. -
Page 9: Location And Control
LOCATION AND CONTROL Location and Control Chapter 3 3.1 FRONT PANEL CONTROLS... -
Page 10: Rear Panel Connectors
PACKING DETAIL Control keys Description Switch to turn the power on / off POWER Removable HDD rack (Option: Built-in CD-RW or DVD±RW) R.HDD RACK Video and audio output for the monitor VIDEO/AUDIO OUTPUT USB 2.0 port to use a USB memory stick, Mouse or USB external devices USB port Input sensor for the remote controller Remote Sensor... - Page 11 LOCATION AND CONTROL Port Name Description BNC input ports for cameras CAMERA IN BNC output(looping) ports for cameras CAMERA OUT BNC input port for spot monitor(Not used in all DVR models) SPOT IN BNC output port for spot monitor SPOT OUT RCA input ports for an audio signal(4CH Line input) AUDIO IN RCA output port for an audio signal...
-
Page 12: Installation
INSTALLATION Installation Chapter 4 4.1 TOTAL CONNECTION LAY-OUT USER’S MANUAL... -
Page 13: Individual Connection
INSTALLATION 4.2 INDIVIDUAL CONNECTION 4.2.1 Rack mount Adapt the supplied rack mount to DVR Adapt the DVR rack (19 inch) 4.2.2 Camera * Connect a female BNC connector of each camera to a male BNC connector, “CAMERA IN” port. * Connect the looping BNC output to other inputs as required USER’S MANUAL... -
Page 14: Audio
INSTALLATION 4.2.3 Audio (*Refer to the specification) Audio Input - AUDIO IN : Connect the RCA Line Jack of the relevant equipment (for example, a camera with a built-in microphone) to the AUDIO IN port Audio Output - AUDIO OUT : Connect the RCA Line output to a monitor with a built-in speaker NOTE This DVR can be connected only with a line audio and not support a microphone for audio input and output. -
Page 15: Monitor
INSTALLATION 4.2.4 Monitor - Connect the female BNC for monitor output. - Connect the male Y/C cable socket for S-VIDEO monitor output. 4.2.5 Power - Select the correct voltage of power (230=180~265 VAC / 115=90~135 VAC) - Connect the power cord. USER’S MANUAL... -
Page 16: External Hdd Bay
INSTALLATION 4.2.6 External HDD Bay (XHD-10U) (USB output) INSTALLATION PROCESS. 1) Turn off the power of DVR. 2) Connect the grounding conductor between DVR and external HDD bay. 3) Connect the USB cable between DVR and external HDD bay. 4) Connect the power cord of DVR and external HDD bay. 5) Plug the power cord of DVR and external HDD bay. -
Page 17: Usb 2.0 Port
INSTALLATION 4.2.7 USB 2.0 ports Three USB ports are provided to connect a USB memory stick, external storage devices and CD-RW/DVD±RW for video clip copying. One USB port is on the front panel and the other two are on the rear panel. A USB mouse can be connected to one of the ports. -
Page 18: Operation
OPERATION Operation Chapter 5 5.1 FACTORY DEFAULT * MPEG4 16CH DVR MENU Setup> QUICK SETUP> QUICK SETUP…………………………..……..…OFF IMAGE SIZE…………………………………….…720x240 (HD1) RECORD FRAME…………………………………240 EVENT……………………….…..…………...ALL PRE RECORD TIME……….……………………..5 POST RECORD TIME………………………..…..10 IMAGE QUALITY………………………….………FINE AUDIO RECORD ………………………………….OFF REMOTE CONTROL ID…………………………..ALL SCREEN> POSITION [CRT] HORIZONTAL POSITION………………….0 VERTICAL POSITION.……………………..0 [VGA]... - Page 19 OPERATION COVERT CH 1~16……………………………………..OFF SELECT…………………………………..…..LV&PB&NW SPOT SPOT MODE…………………………………..MANUAL SPOT SEQ. TIME….………………………..3SEC ADD SPOT MULTI…………………………..OFF VIDEO LOSS SKIP………………………..… ON RECORD> RECORD SETUP RECORD PROGRAM..…………………..6 RECORD PROGRAM (Refer to page 49) IMAGE QUALITY RECORD QUALITY……………..….……..FINE AUDIO RECORD AUDIO 1………………..…..………….…..OFF AUDIO 2………………..……………………..OFF AUDIO 3………………..……………………. OFF AUDIO 4……………..……………………….
- Page 20 OPERATION SYSTEM> HDD CONFIGURATION REMOVABLE/ FIXED-01~04……..….….NO HDD EXTERNAL………………………………..NO HDD EXTERNAL-00~39…………………NO HDD REC HDD INITIALIZE…..…………………..……NO BACKUP HDD INITIALIZE………………….……NO CLOCK TIME ADJUST INTERNET TIME ADJUST...…………….OFF DAYLIGHT SAVING TIME..…….………..OFF PASSWORD MASTER PASSWORD…..…………….…………11111111 SUPERVISOR PASSWORD.………….…………22222222 MENU DISPLAY CHECK.……………….………..OFF POWER OFF CHECK...………………….……….OFF REC/PLAY CHECK…..………………….………..OFF VIDEO STANDARD…………….…………………….…..AUTO LANGUAGE……………….………..………………….….ENGLISH REMOTE CONTROL ID.…………….………..………..ALL KEY ECHO…..………………….………………………..ON...
- Page 21 OPERATION SEARCH> TIME SEARCH HDD ID………………………………………………..NORMAL CHANNEL…………………..………………….…….ALL EVENT SEARCH HDD ID………………………………………………..NORMAL CHANNEL…………………..………………………..ALL EVENT…………………..……………………………ALL BLOCK SEARCH HDD ID………………………………………………..NORMAL FILE SEARCH MEDIA………………………………………………...USB_FRONT COPY> COPY STATUS COPY START/ END/ CUR TIME.…………………2000/00/00 00:00:00 MEDIA FORMAT FORMAT MEDIA..…………………………………..USB_FRONT EXIT> ………………………………………………………..SAVE ONLY USER’S MANUAL...
-
Page 22: Front Panel Controls
OPERATION 5.2 FRONT PANEL CONTROLS 5.2.1 POWER ON /OFF After the connection of power cord and other devices with this DVR, turn the power on. a. The video signal system (NTSC or PAL) is automatically detected. b. Power Failure Recovery This DVR automatically reverts back to programmed record parameters upon power restoration. - Page 23 OPERATION 5.2.2.2 Auto Sequence Display <ADD AUTO SINGLE : ON> - Press the AUTO button, each screen display will be automatically switching according to the AUTO SEQUENCE setup. - If you set up “ADD AUTO SINGLE : OFF” in the AUTO SEQUENCE setup menu, the single display will be skipped.
-
Page 24: Record
OPERATION 5.2.3 RECORD Press the REC button and the following message will be displayed as below; MANUAL MODE Press the REC button to begin recording. To stop recording, press the REC button again. The screen will be turned into real time display mode. - Page 25 OPERATION 5.2.4.1 CALENDAR SEARCH At the SEARCH menu; Move the cursor to CALENDAR SEARCH using button. Press the ENTER button and the CALENDAR SEARCH screen appears. Move the cursor to the desired position using the buttons, and select the desired HDD, channel and date using the (-), (+) buttons. And then press the ENTER button, and the following screen appears.
- Page 26 OPERATION 5.2.4.2 SEARCH & COPY At the SEARCH menu; Move the cursor to TIME SEARCH using button. Press the ENTER button and TIME SEARCH screen appears. Select the desired HDD ID using the (-) or (+) button. Move the cursor to CHANNEL using the button and select the desired channel using the (-) or (+) button.
- Page 27 OPERATION 5.2.4.4 EVENT SEARCH At the SEARCH menu; Move the cursor to EVENT SEARCH using button. Press the ENTER button and the EVENT SEARCH menu screen appears. Select the desired HDD ID using the (-) or (+) button. Move the cursor to CHANNEL using the button and select the desired channel using the (-) or (+) button.
- Page 28 OPERATION 5.2.4.5 BLOCK SEARCH At the SEARCH menu; Move the cursor to BLOCK SEARCH using button. Press the ENTER button and the BLOCK SEARCH menu screen appears. Select the desired HDD ID using the (-) or (+) button. Move the cursor to the desired position of SEARCH TIME using the buttons, and then set up the desired time using the(-), (+) buttons.
- Page 29 OPERATION 5.2.4.7 BOOKMARK SEARCH At the SEARCH menu; Move the cursor to BOOKMARK SEARCH using button. Press the ENTER button and the BOOKMARK SEARCH screen appears. Press the ENTER button, and the list searched appears. When the list appears on the screen, select the desired list using buttons or JOG DIAL Press the ENTER button for the playback.
-
Page 30: Search Button Information
OPERATION When the list appears on the screen, select the desired list using buttons or the JOG DIAL. 5.2.5 SEARCH BUTTON INFORMATION 5.1.5.1 SLOW ( Press this button to make the speed level which is slower than normal speed (X1) and displayed it at the upper left side of screen as below;... -
Page 31: Jog Shuttle Information
OPERATION NOTE Press DIR button to make a reversed playback from the end of recorded or played images during the real time display mode. 5.2.6 JOG SHUTTLE INFORMATION SHUTTLE RING JOG DIAL 5.2.6.1 Normal Playback Mode Turn the SHUTTLE ring to the desired playback direction and speed level according to the above drawing during the playback. -
Page 32: Digital Zoom
OPERATION 5.2.7 DIGITAL ZOOM Press the desired camera number button you wish to display on the monitor. Press the D-ZOOM button. The indication screen appears on the main screen. Turn JOG DIAL or press the buttons to select the desired location. Press the ENTER button to change the zoom x2 ~ x4. -
Page 33: Copy
OPERATION ** Please refer to 6.2.7 SPOT of SCREEN. 5.2.10 COPY Press the COPY button to copy the recorded images into other media and the COPY MENU screen appears. 5.2.10.1 COPY 5.2.10.1-1 COPY TO EXTERNAL HDD At the COPY menu, Move the cursor to COPY using the buttons. - Page 34 OPERATION NOTE When the copy is in process, the copying status(ex. “COPY 30%”) will be displayed on the right side of the monitor. You can search and playback the copied images in HDD with DVR itself (Please refer to 5.1.4.4 FILE SEARCH) ** You have to format in case of the media to be used in DVR for the first time.
- Page 35 OPERATION 5.2.10.1-3 COPY TO CD-RW/ DVD±RW At the COPY menu, Move the cursor to COPY using the buttons. Press the ENTER button and the following screen appears. Select the desired MEDIA(INTERNAL_CD-RW/DVD) (-), (+) buttons or jog dial. Move the cursor to HDD ID using the buttons and select the desired HDD to copy among HDD IDs using the (-), (+) buttons or jog dial.
- Page 36 OPERATION 5.2.10.1-4 STOPPING COPY Press the COPY button to stop copying and the following screen appears. Move the cursor using the buttons and select “YES” or “NO” and then press the ENTER button. 5.2.10.2 COPY STATUS At the COPY menu, Move the cursor to COPY STATUS using the buttons.
-
Page 37: Dvr Status
OPERATION 5.2.10.3 MEDIA FORMAT At the COPY menu, Move the cursor to MEDIA FORMAT using the buttons. Press the ENTER button and the following screen appears. Select formatting media using the (-), (+) button. Move the cursor to MEDIA FORMAT and then press the “ENTER” button. The message, “FORMATTING”... -
Page 38: Ptz Control
OPERATION 5.2.12 PTZ CONTROL 5.2.12.1 PTZ control in live view Press the “PTZ” button to control pan, tilt and zoom functions of PTZ camera and the PTZ channel, model name and ID will be displayed on the left side of the monitor as the following picture. Press the desired camera button to be displayed. -
Page 39: Function Button
OPERATION 5.2.13 FUNCTION BUTTON (RESERVED) You need this button to control “USER” mode of RELAY 4 SELECT. Please refer to 6.4.8 RELAY OUTPUT, page 53. 5.2.14 PIP CONTROL Select a single camera in live view, and then press the PIP button and the following screen will be displayed. -
Page 40: Remote Controller
OPERATION CH 4 when viewing CH 4. 5.3 REMOTE Button Name Description CONTROLLER REMOTE Refer to 6.5.6 REMOTE CONTROLLER ID in the system setup CONTROLLER ID (IRIS-/+) Iris close and open of PTZ (ZOOM-/+) Zoom in and out of PTZ Enter the spot mode / Return to the SPOT / ESC previous mode... - Page 41 OPERATION * You can click the below keys on the MENU screen with a mouse. USER’S MANUAL...
-
Page 42: Quick Setup
MENU MENU setup Chapter 6 ENTRANCE OF THE MENU SETUP Press the MENU button for the desired DVR setting. You can use the mouse instead of buttons on the front panel of DVR. Simply click the desired icon or item in case of using the mouse. 6.1 QUICK SETUP Press the MENU button and the QUICK SETUP menu appears as the following picture. - Page 43 MENU 6.1.4 EVENT Select a kind of EVENT using the (-), (+) buttons or jog dial. If you want to select all kind of event, choose “ALL” and if you don’t want event recording, choose “OFF”. The default is “ALL”. 6.1.5 PRE RECORD TIME Select the desired time for pre-recording using the (-), (+) buttons or jog dial.
-
Page 44: Screen
MENU 6.2 SCREEN To set up the SCREEN menu, Move the cursor to the SCREEN icon using the buttons in the MENU screen. Press the ENTER button when the cursor is on the SCREEN icon and the following items appear. 6.2.1 POSITION At the SCREEN menu, Press the ENTER button when the cursor is on the POSITION and the following items appear. -
Page 45: Auto Sequence
MENU 6.2.2 AUTO SEQUENCE At the SCREEN menu, Move the cursor to the AUTO SEQUENCE using buttons. Press the ENTER button when the cursor is on the AUTO SEQUENCE and the following 4 pages screen appears. [ 8CH DVR ] [ 4CH DVR ] [ 16CH DVR ]... -
Page 46: Display
MENU Move the cursor to each single or split channel using the buttons. When the desired channel is selected, change the value of AUTO SEQUENCE duration using the (-), (+) buttons or jog dial to set the length of time for switching each channel in sequence. * The value is from 1SEC to 60SEC and the default is “3SEC”. - Page 47 MENU 6.2.3.3 RECORD STATUS At the DISPLAY menu, Move the cursor using the buttons to select the RECORD STATUS. Use the (-), (+) buttons or jog dial to choose “ON” or “OFF”. * The default is “ON”. ON: Displaying the recording status of each channel on the screen. 6.2.3.4 CLOCK DISPLAY At the DISPLAY menu, Move the cursor using the...
-
Page 48: Title
MENU 6.2.3.9 REMOTE CONTROL ID At the DISPLAY menu, Move the cursor using the buttons to select the REMOTE CONTROL ID. Use the (-), (+) buttons or jog dial to choose “ON” or “OFF”. The default is “OFF”. ON: The remote controller ID will be displayed on the screen. 6.2.3.10 SPOT TITLE DISPLAY At the DISPLAY menu, Move the cursor using the... -
Page 49: Multi Screen
MENU To exit this CHARACTER TABLE screen, press the ESC button. CHANNEL TITLE MODE: There are “TEXT” and “BITMAP”. TEXT: Using the CHARACTER TABLE BITMAP: It is possible to download new characters using the software if you want. 6.2.5 MULTI SCREEN You can select the desired channels and make a 4 split screen and a 9 split screen using this menu. -
Page 50: Covert
MENU 6.2.6 COVERT At the SCREEN menu, Move the cursor to the COVERT using the buttons. Press the ENTER button when the cursor is on the COVERT and the following 2 pages screen appears. Move the cursor and select the desired item using the buttons. - Page 51 MENU To exit this SPOT menu, press the ESC button. 6.2.7.1 SPOT MODE Use the (-), (+) buttons or jog dial to select the SPOT MODE. - MANUAL: Manually select the channel of spot monitor. - EVENT: Event channel will be displayed automatically on spot monitor. - SEQUENCE: Every single channel will be switching and displaying in sequence.
-
Page 52: Record
MENU 6.3 RECORD To set up the RECORD menu, Move the cursor to the RECORD icon using the in the MENU screen. Press the ENTER button when the cursor is on the RECORD icon and the following items appear. 6.3.1 RECORD SETUP At the RECORD menu, Move the cursor to the RECORD SETUP using buttons. -
Page 53: Record Program
MENU Or move the cursor to the desired position and then click the green square next to “SCHEDULE” using the Mouse. Press the ESC button to exit this RECORD SETUP menu or press the ENTER button to enter the RECORD PROGRAM menu. 6.3.2 RECORD PROGRAM At the RECORD menu, Move the cursor to the RECORD PROGRAM using... - Page 54 MENU [MPEG4 16240, 8120] [MPEG4 16120] Use the buttons to move the cursor to the desired item. Select the desired RECORD TYPE using the (-), (+) buttons or jog dial. - SINGLE : Only one event channel will be recorded by setting event recording frame rate and the other channels will be recorded by rest event recording fps/N(channel number) when an event happened.
- Page 55 MENU < Result table of record setting > EVENT EVENT SCHE- EVENT RECORD STATUS RECORD BUTTON DULE CHECK N.F. S.E.F. C.E.F. SETTING - No event: All channels SINGLE / will be recorded by 1 fps. - An event: Only one EVENT CH event channel will be ONLY...
- Page 56 MENU ** (1) N.F. : Normal recording Frame rate ** (2) S.E.F. : Single Event recording Frame rate ** (3) C.E.F. : Complex Event recording Frame rate Set the IMAGE SIZE of each channel using the (-), (+) buttons or jog dial. There are the 3 types of 720x480(D ), 720x240(Half-D ) and 360x240(CIF).
- Page 57 MENU PROGRAM RECORD COMPLEX SINGLE SINGLE COMPLEX SINGLE SINGLE COMPLEX SINGLE SINGLE COMPLEX TYPE IMAGE 720x240 360x240 360x240 360x240 720x240 720x240 720x240 720x480 720x480 720x480 SIZE NORMAL EVENT SINGLE EVENT COMPLEX QUALITY NORMAL QUALITY EVENT PRE-ALARM RECORDING POST-ALARM RECORDING V-Loss V-Loss V-Loss V-Loss...
-
Page 58: Image Quality
MENU 6.3.3 IMAGE QUALITY At the RECORD menu, Move the cursor to the IMAGE QUALITY using buttons. Press the ENTER button when the cursor is on the IMAGE QUALITY and the following screen appears. Select the desired RECORD QUALITY using the (-), (+) buttons or jog dial. And you can see the size of each image quality and how long you can record in the installed HDDs by the image quality. -
Page 59: Repeat Record
MENU Select the audio recording channels using the (-), (+) buttons or jog dial. Press the AUDIO SEL button and then press the desired channel button on front panel after saving this menu and you can hear the selected channel audio. NOTE : AUDIO SELECT + CHANNEL during live or playback MPEG4 16480, 8240, 4120D are 8CH Audio inputs and the others are 4CH Audio inputs. -
Page 60: Backup Mode
MENU 6.3.7 BACKUP MODE At the RECORD menu, Move the cursor to the “BACKUP MODE” using buttons. Select the “BACKUP MODE” using the (-), (+) buttons or jog dial. EVENT: Backup only when the event occurs. MIRROR : Recording the same images in backup HDD. OFF : Not backup. -
Page 61: Event
MENU 6.4 EVENT To set up the EVENT menu, Move the cursor to the EVENT icon using the in the MENU screen. Press the ENTER button when the cursor is on the EVENT icon and the following items appear. 6.4.1 MOTION DETECTION At the EVENT menu, Move the cursor to the MOTION DETECTION using buttons. -
Page 62: Event Screen Mode
MENU Select the desired channel using the (-), (+) buttons or jog dial. Move the cursor to the EVENT MESSAGE using buttons. Select “ON” or “OFF” using the (-), (+) buttons or jog dial 6.4.1.2 SENSITIVITY At the MOTION DETECTION menu, Move the cursor to SENSITIVITY using buttons. -
Page 63: Event Message Reset
MENU At the EVENT menu, Move the cursor to the EVENT MESSAGE using buttons. Select “ON” or “OFF” using the (-), (+) buttons or jog dial ON: The warning message will be displayed when the event occurs. 6.4.5 EVENT MESSAGE RESET At the EVENT menu, Move the cursor to the EVENT MESSAGE RESET using buttons. -
Page 64: Relay Output
MENU 6.4.8 RELAY OUTPUT At the EVENT menu, Move the cursor to the “RELAY OUTPUT” using the buttons. Press the ENTER button when the cursor is on the “RELAY OUTPUT” and the following screen appears. Move the cursor using the buttons and set up the value using the (-), (+) buttons or jog dial. -
Page 65: System
MENU 6.5 SYSTEM To set up the SYSTEM menu, Move the cursor to the SYSTEM icon using the in the MENU screen. Press the ENTER button when the cursor is on the SYSTEM icon and the following items appear. 6.5.1 HDD At the SYSTEM menu, Move the cursor to the HDD using the buttons. -
Page 66: Rec Hdd Initialize
MENU 6.5.1.1 HDD CONFIGURATION At the HDD menu, Move the cursor to HDD CONFIGURATION using the buttons. Press the ENTER button when the cursor is on the HDD CONFIGURATION and the following screen appears. Use the buttons to move the cursor and use the (-), (+) buttons or jog dial to change the value. -
Page 67: Clock
MENU If you want to initialize, move the cursor to “YES” and then press the “ENTER” button. If not, move the cursor to “NO” and then press the “ENTER” button. To exit this screen, press the ESC button. To exit this HDD menu, press the “ESC” button again. 6.5.1.3 BACKUP HDD INITIALIZE At the HDD menu, Move the cursor to “BACKUP HDD INITIALIZE”... -
Page 68: Time Adjust
MENU 6.5.2.1 DATE&TIME At the CLOCK menu, Move the cursor to the DATE&TIME using the buttons. Press the ENTER button when the cursor is on the DATE&TIME and the following screen appears. Use the buttons to move the cursor to the desired position of date or time. Use the (-), (+) buttons or jog dial to modify the current date and time. -
Page 69: Password
MENU If the DAYLIGHT SAVING TIME set “ON”, set up the starting date and time and end date and time. Use the buttons to move the cursor and use the (-), (+) buttons or jog dial to change the value. To exit this TIME ADJUST menu, press the ESC button. -
Page 70: Supervisor Password
MENU CAMERA/ NUMBER INPUT buttons. And then insert 8 numbers of NEW PASSWORD using the CAMERA/ NUMBER INPUT buttons. And you have to insert the same numbers again to verify the password after entering the NEW PASSWORD. To exit this MASTER PASSWORD menu, press the ESC button. 6.5.3.2 SUPERVISOR PASSWORD At the PASSWORD menu, Move the cursor to the SUPERVISOR PASSWORD using the... -
Page 71: Video Standard
MENU 6.5.3.5 REC/PLAY CHECK At the PASSWORD menu, Move the cursor to the REC/PLAY CHECK using the buttons. Select “ON” or “OFF” to set up the REC/PLAY CHECK using the (-), (+) buttons or jog dial. If REC/PLAY CHECK is “ON”, the password will be required when you start to record or playback. The default is “OFF”. -
Page 72: Dvr Menu Setup
MENU 6.5.8 DVR MENU SETUP At the SYSTEM menu, Move the cursor to the DVR MENU SETUP using the buttons. Press the ENTER button when the cursor is on the DVR MENU SETUP and the following screen appears. 6.5.8.1 MENU INITIALIZE At the DVR MENU SETUP menu, Move the cursor to the MENU INITIALIZE using the buttons. -
Page 73: Save Menu To File
MENU 6.5.8.3 SAVE MENU TO FILE At the DVR MENU SETUP menu, Insert the USB memory stick to copy the current DVR menu file to the USB memory stick. Move the cursor to the SAVE MENU TO FILE using the buttons and then press the ENTER button. -
Page 74: Link
MENU 6.6 LINK To set up the LINK menu, Move the cursor to the LINK icon using the in the MENU screen. Press the ENTER button when the cursor is on the LINK icon and the following items appear. 6.6.1 NETWORK At the LINK menu, Move the cursor to the NETWORK using the buttons. -
Page 75: Dhcp
MENU <Fixed IP> 6.6.1.1 DHCP At the NETWORK menu, Move the cursor to the DHCP using the buttons. Select “OFF” using the (-), (+) buttons or jog dial. 6.6.1.2 IP ADDRESS At the NETWORK menu, Move the cursor to the IP ADDRESS using the buttons. -
Page 76: Network Live Image Size
MENU ** Please refer to the below image in case of a PPPOE type 6.6.1.8 NETWORK LIVE IMAGE SIZE (Only for MPEG4 16480) At the NETWORK menu, USER’S MANUAL... -
Page 77: Rs232C
MENU Move the cursor to the NETWORK LIVE IMAGE SIZE using the buttons. Select the desired value using the (-), (+) buttons or jog dial to select an image size to be transported from DVR to network client viewer. 6.6.2 RS232C At the LINK menu, Move the cursor to the RS232 using the buttons. -
Page 78: Ptz
MENU 6.6.4 PTZ At the SCREEN menu, Move the cursor to the PTZ using buttons. Press the ENTER button when the cursor is on the PTZ and the following 2 pages screen appears. Select the desired channel using buttons. Use the (-), (+) buttons or jog dial to select the right model of installed PTZ camera. Press the button to set up a ID of the PTZ camera. - Page 79 MENU At the E-MAIL menu, Move the cursor to the SEND E-MAIL using the buttons and select “ON” using the (-), (+) buttons to send a e-mail when an event happened. 6.6.5.2 SMTP SERVER At the E-MAIL menu, Move the cursor to the SMTP SERVER using the buttons to input the e-mail sever address to be used by DVR.
- Page 80 MENU 6.6.5.4 PASSWORD At the E-MAIL menu, Move the cursor to the PASSWORD using the buttons to input the account password to be used by DVR. Press the ENTER button and the following screen appears. Select the character using the buttons and then press the ENTER button.
-
Page 81: Search
MENU To exit this CHARACTER TABLE screen, press the ESC button. 6.7 SEARCH To set up the SEARCH menu, Move the cursor to the SEARCH icon using the in the MENU screen. Press the ENTER button when the cursor is on the SEARCH icon and the following items appear. ** Please, refer to Search &... -
Page 82: Exit
MENU ** Please, refer to Copy of Chapter 5 Operation. 6.9 EXIT At the MENU screen, Move the cursor to the EXIT icon using the buttons. Press the ENTER button when the cursor is on the EXIT icon and the following items appear. Move the cursor to the desired item using the buttons and press the ENTER button. -
Page 83: External Terminal Information
EXTERNAL TERMINAL INFORMATION External Terminal Information Chapter 7 7.1 RS-422/485 This port can be used to connect the external controller DESCRIPTION TERM OFF TERM ON TX+(RS422:Transmit data+) RS485:Transmit data TX-(RS422:Transmit data-) RS485: Receive data RX+( RS422:Receive data+) RS485: Receive data RX-( RS422:Receive data-) RS485:Transmit data 7.2 T.ADJ... - Page 84 EXTERNAL TERMINAL INFORMATION To other T.ADJ Input 7.3 RELAY OUT For controlling alarm output by relay DESCRIPTION DESCRIPTION NO(Normal Open) NO(Normal Open) CM(Common) CM(Common) ALARM NC(Normal Close) NC(Normal Close) POWER NO(Normal Open) NO(Normal Open) USER CM(Common) CM(Common) V-LOSS NOT USED HDD ERROR NC(Normal Close) NC(Normal Close)
- Page 85 EXTERNAL TERMINAL INFORMATION DESCRIPTION EXTERNAL ALARM 1 INPUT EXTERNAL ALARM 2 INPUT EXTERNAL ALARM 3 INPUT EXTERNAL ALARM 4 INPUT ALARM IN COMMON GND EXTERNAL ALARM 5 INPUT EXTERNAL ALARM 6 INPUT EXTERNAL ALARM 7 INPUT EXTERNAL ALARM 8 INPUT ALARM IN COMMON GND EXTERNAL ALARM 9 INPUT EXTERNAL ALARM 10 INPUT...
- Page 86 EXTERNAL TERMINAL INFORMATION 7.6 SERIAL This DVR is compatible with TFT LCD monitor in PAL mode. SERIAL Description Description Data Carrier Detect Data Set Ready Receive data RS232C: RX/TX data Transmit data RS232C: RX/TX data Data Terminal Ready Ring Indicator Signal Ground 7.7 Ethernet / USB For both 10Base-T and 100 Base-TX.
-
Page 87: Specifications
SPECIFICATION 7.8 REMOTE Reserved REMOTE DESCRIPTION 1, 2, 3, 4, 5, 6, 7, 8 Input Data 1~8 9, 10, 11, 12 Output Data 1~4 Time adjust input(slave) Time adjust output(master) 13, 14, 17, 18, 19, 20, 23 21, 22 DC +5V Output 24, 25 N/C : Not Connected Specifications... - Page 88 EXTERNAL TERMINAL INFORMATION Water Marking Support 4. HDD Internal Storage 1 Removable HDD + 4 HDDs (1TB x 5) Capacity External Storage 40 HDDs (10 HDDs in an external bay x 4) Speed Min. 5400RPM, 7200RPM 45MHz DMA Type EIDE compatible Seek time Faster than 9.0ms avg.
- Page 89 SPECIFICATION Remote Reserved External control (RS-232C) / Serial For debugging : 9 pins male DSUB Terminal Block External control (RS-422/485) Alarm Input 16/ 8/ 4CH 4 Relay output : 3 pins terminal block Alarm Output (Normal-Open, Normal-Close, Common) x 4 Ethernet RJ45 connector, 10/100 Mbps 7.
- Page 90 SPECIFICATION < Recording Speed Table > *Note 1, 2 Unit : fps Model 16480 16240 16120 8240 8120 4120D Recording NTSC 360 x 240 Speed 720 x 240 720 x 480 360 x 288 720 x 288 720 x 576 Compression Method MPEG4 MPEG4...
-
Page 91: Camera Integration System
HDD INSTALLATION PROCESS 256 Camera Integration system Chapter 9 Block Diagram... -
Page 92: Hdd Installation
HDD INSTALLATION PROCESS HDD Installation Process Chapter 10 10.1 Internal HDD installation 10.1.1 How to install the internal Hard Disk Drive(s). 1) Unscrew on the top, the side and the rear of this unit as indicated to remove the cover. Caution) Plug out the power cord before addition / removal / change of HDD 2) Remove the upper cover from the unit as... - Page 93 HDD INSTALLATION PROCESS 4) Fix the additional HDD to rack mount with the screws as indicated. 5) Place the HDD(s) on the HDD plate and screw as indicated. (Set the master or slave of HDD before fixing the HDD(s) into DVR. Refer to HDD jumper setting information.) Set up no.
- Page 94 HDD INSTALLATION PROCESS 10.1.2 How to install Hard Disk Drive(s) into the removable HDD rack. 1) Grip the strap of removable HDD rack and pull it out. 2) Remove the cover of removable HDD rack and connect the HDD with the cables as indicated. 3) Put the HDD into the rack and close the top cover.
-
Page 95: Dvd±Rw (Or Cd-Rw)Installation
HDD INSTALLATION PROCESS 10.2 DVD±RW(or CD-RW) installation 1) Unscrew to remove the HDD plate as indicated. * If you want to install DVD±RW (or CD-RW), you have to purchase the board for DVD±RW (or CD- RW) and install it into the DVR 2) Disconnect the cables of fixed HDDs to remove the HDD plate as indicated. - Page 96 HDD INSTALLATION PROCESS 4) Remove the removable HDD rack from DVR set as the picture. 5) Unscrew to remove the HDD rack mount as indicated. 6) Screw to fix the rack mount on DVD±RW (or CD-RW) as indicated. 7) Put the DVD±RW(or CD-RW) into the unit as indicated.
-
Page 97: Jumper Setting Information
HDD INSTALLATION PROCESS 9) Connect the cables as indicated. 10) Place the HDD plate and screw as indicated. And then close the upper cover of the unit. HDD Jumper Setting Information Before install the Hard Disk Drive(s), please read the jumper setting information on the label. -
Page 98: Installation Of Network Viewer Software
NETWORK VIEWER INSTALLATION Network Viewer Chapter 11 11.1 Installation of Network Viewer Software 11.1.1 System requirement - Pentium III or above recommended - O/S : Microsoft Windows 2000 / XP - 128MB RAM or above recommended - Super VGA 16M or above recommended - 10/100 base T network card for LAN operation 11.1.2 Network Environment Client PC... -
Page 99: Add A New Site Information
NETWORK VIEWER INSTALLATION 11.2.1 Add a new site information Click the “Select a DVR” button to display the DVR List on the screen. Fill out Type, DVR Name, IP address and Password to add the desired units into the DVR information box, and then click on the “Add”... -
Page 100: Dvr Search
NETWORK VIEWER INSTALLATION Playback 11.3 DVR search : This menu allows you to detect all the units on the local network. Click “Search DVR” button to display the “Search” menu window. Click the “Search” button, and then all the units on the local network will be detected and listed on the screen. -
Page 101: File Search
NETWORK VIEWER INSTALLATION 11.5 File Search At the above main menu controller, Click the “File Search” button and the “File list” window will appear on the PC screen. If you want to search images saved in CD-RW, DVD±RW or PC, insert the CD or DVD into your PC and click the “File Search”... - Page 102 NETWORK VIEWER INSTALLATION * 1 site windows * 2 ~ 4 site windows *5 ~ 9 site windows *10~16 site windows NOTE - You can connect up to 16 DVRs with your PC simultaneously. (16 users x 16 units: Master connection is only one.) - With the windows arranged in a grid, double-click the desired to make it the full screen 11.7 Option Insert the CD into the CD-ROM drive, and then please double-click the icon of Network viewer and...
-
Page 103: Control
NETWORK VIEWER INSTALLATION - Frame Rate: If you check “Frame Rate”, transmitted frame rate will be displayed on the under bar of viewer screen. 11.8 Control 11.8.1 Screen Display : Images can be viewed in a full or multi format on each screen. a. - Page 104 NETWORK VIEWER INSTALLATION NOTE If you need some more information about the control keys, please refer to Chapter 5 Operation. 11.8.3 PTZ This menu allows you to control the PTZ camera through the network. Click the “PTZ” button to display the following PTZ controller. Click the button to tilt up or down.
- Page 105 NETWORK VIEWER INSTALLATION 11.8.4 SETUP You can modify DVR MENU setup through the network. Click the “SETUP” button on the control menu bar to display the DVR setup screen after connecting the view screen. (It is possible only for master connection.) Click the “Save to file”...
- Page 106 NETWORK VIEWER INSTALLATION Click the “STATUS” button on the control menu bar to display the DVR status after connecting the view screen. 11.8.6 PRINT After connecting the view screen, Click the “PRINT” button on the control menu bar to print the desired image. And the preview window will be displayed as the above picture.
- Page 107 NETWORK VIEWER INSTALLATION 11.8.8 AUDIO IN After connecting the view screen, Click the “Audio In” button on the control menu bar to input the audio. Sound of your PC will travel into the DVR. 11.8.9 AUDIO OUT After connecting the view screen, Click the “Audio Out”...
- Page 108 NETWORK VIEWER INSTALLATION Click the “Play” button to display the images on the screen. 11.8.11 EVENT SEARCH : You can review the event list that was triggered on the DVR. After connecting the view screen, Click the “EVENT” button on the control menu bar to display the Event Search window. Select the desired HDD mode, Channel and the Event type in Event Search window, and then set the Search Time And then click the “Search”...
- Page 109 NETWORK VIEWER INSTALLATION 11.8.13 LOG SEARCH : You can search and playback the images by logging. Click the “LOG” button on the control menu bar to display the Log Search window. Set the Search Time, and then click the Search button. Click the “Next”...
-
Page 110: Key Information
NETWORK VIEWER INSTALLATION 11.9 Key Information 11.9.1 PAUSE Click this button to pause the images during the playback or live. 11.9.2 PLAY (Reverse & Forward) Use these buttons to playback images at normal speed in either direction. 11.9.3 FAST (Reverse & Forward) Use these buttons to playback images faster than normal speed in either direction.
