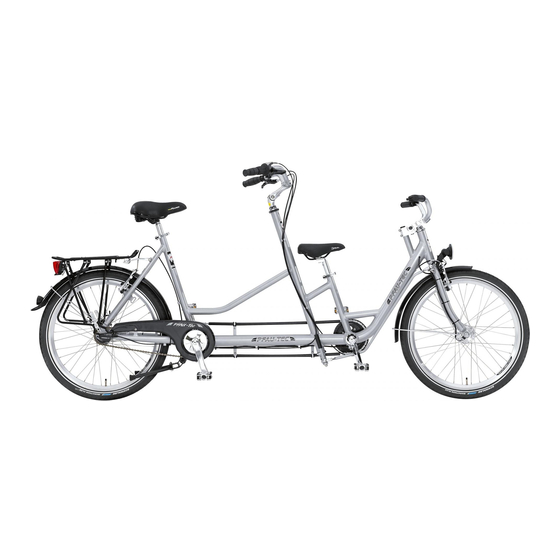

Summary of Contents for PFIFF PFAU-Tec Amico

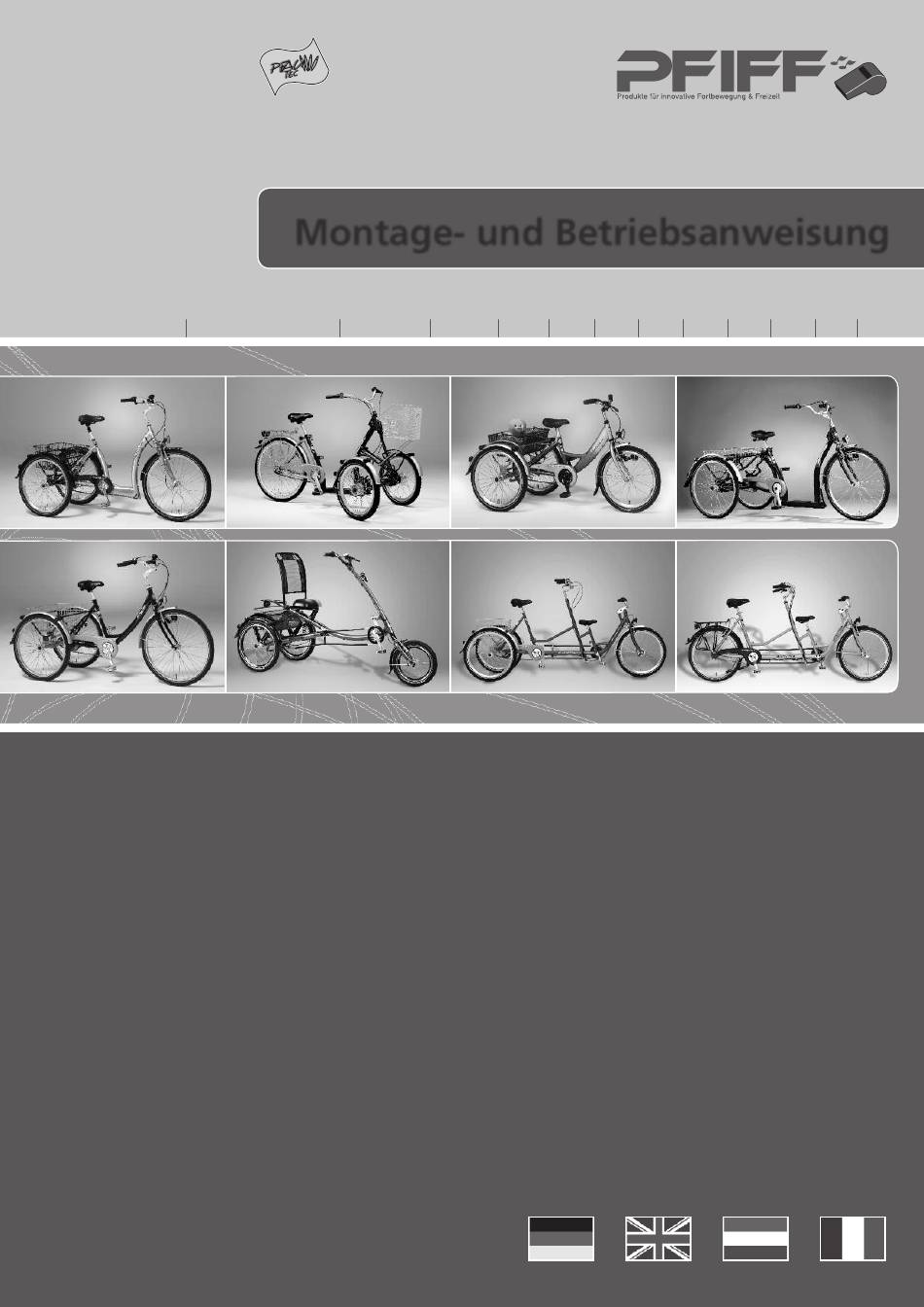

  • Page 1 PFAU-Tec GmbH reha-technik · entwicklung · konstruktion Montage- und Betriebsanweisung 360° 330° 300° 270° 240° 210° 180° 150° 120° 90° 60° 30° 0° www.pfiff-vertrieb.de Amico Elegance Prato Advanced Famoso Primo Alluminio Fusione Primo-Heinzmann Ally Grazia Primo-Quad Bene Lesto Proven Capo...
  • Page 2 Welcome! We would like to congratulate you on the purchase of your PFAU-Tec trike. Please read and comply with the following instructions carefully to ensure your long-term enjoyment of our vehicle. Trike maintenance ance, check the condition of hand lever, cable pul- leys, brake lever and brake lining;...
  • Page 3 Proper maintenance of the trike The trike must undergo periodic maintenance to en- sure its proper function and optimised appearance. Please note the following important points: • Periodic maintenance carried out by specialists will ensure the conservation of the trike’s value. The fol- lowing steps will help prevent corrosion and other damage: •...

  • Page 4: Table Of Contents

    Content 1. General information 3.4.5 Replacing/adjusting the brake pads . . 55 1.1 Safety instructions ....44 3.5 Lubrication ..... 55 3.6 Front wheel .

  • Page 5: General Information

    General information Dear customer, this brand name trike was an excellent choice. We have carefully packaged your trike, so that you will receive it in perfect condition. Nevertheless, please do check your trike thoroughly for any damage. 1.1 Safety instructions In these assembly and operating instructions, all sections containing safety warnings are highlighted with a shaded background.

  • Page 6: Before You Take Your Trike On The Road

    Before you take your trike on the road 2. Before you take your trike on the road j. Fixture of moving parts (e.g. pedals) Check all essential systems before you take your Ensure that all moving parts, like pedals, are pro- trike on the road.

  • Page 7: Assembly And Disassembly Of The Frame

    Before you take your trike on the road recommend to always check the proper seating of all screws and nuts. 2.5 Brakes The brakes must be properly aligned! It is critically important for your safety that the brakes always function awlessly. Familiarise yourself with the position of the hand brake lever in terms of its effect on the front wheel/s.

  • Page 8: Handlebars

    Before you take your trike on the road Danger! Ensure that the minimum insertion depth marker (Fig. 3-C) on the handlebar uprights remains inside the steering head and is not visible! 2.8 Pedals Robust, non-slip pedals are mounted as standard. Fig.

  • Page 9: Lighting System

    Before you take your trike on the road 2.12 Adjusting the headlamp The light cone of the headlamp must be tilted to an angle ensuring that its centre point at 5 m distance from the lamp is at half its height of exit from the lamp.

  • Page 10: Chain Tension In Tandems

    Before you take your trike on the road Fig. 6 chain and remove super uous oil with a lint-free cloth. This will ensure that the chain is only lubricated Fig. 7; releasing the cam clamping screws where it is needed. A very dirty chain will not only soil your clothes, but will also diminish its effectiveness.
  • Page 11 Before you take your trike on the road value set at standstill. As the seat is easily adjusted, that is no problem at all. The seat is adjusted by opening the two quick releases underneath the seat. The seat can now be easily moved in the desired direction.

  • Page 12: Scootertrike Handlebar Position

    Before you take your trike on the road The tilt angle of the seat can be adjusted by your selection of the hole pairs in the seat adjustment bracket. Open and remove the quick release and select the other hole pair. Replace the quick release in the new hole pair and screw on the nuts.

  • Page 13: Starting And The Rst Meters

    Before you take your trike on the road parked cars), where you can concentrate fully on fa- simply pedal backwards, as if you wanted to brake. miliarising yourself with the new vehicle. The ScooterTrike will now travel backwards and will thus allow you to move into the desired direction.

  • Page 14: The Rst Meters

    Before you take your trike on the road Children under 16 years of age should not steer the tandem. Kids are usually not yet able to judge driving situations accurately, and often do not yet have the necessary physical power to safely steer and operate a tandem.

  • Page 15: Spokes

    Before you take your trike on the road Danger! 3.4.3 Adjusting the brake pads Never attempt to straighten any bends in safety-relevant Make sure that the brake reaction is instant (taking parts, like the frame, fork, handlebars, pedal crank, into consideration the relevant brake line clearance) saddle bar, and pedals.

  • Page 16: Replacing/Adjusting The Brake Pads

    Care & maintenance more than 39 mm Spring adjustment screw Spring adjustment screw 6 mm washer B 3 mm washer B Brake shoe attachment nut Fig. 22b 3.4.5 Replacing/ adjusting the brake pads Shim Shim A Shim A The gap between rim and brake pad should not Brake shoe attachment part exceed 1.5 mm.

  • Page 17: Front Wheel

    Care & maintenance latest state-of-the-art brand name cycles are equipped Spring with permanent lubrication, which lasts for several years. Avoid the chain getting encrusted with dirt or rust. This critical component must be lubricated frequently with either a brush and a light-weight multi-purpose oil or with a special chain spray.

  • Page 18: Rear Wheel

    Intended use 3.10 Dynamo setting The central axis of the dynamo must be aligned with the wheel hub. If any adjustments are needed, release the attachment (Fig. 30-A) and retighten it after nishing the alignment. The same applies for front wheel-mounted dynamos.

  • Page 19: Road Traf C

    Intended use • Do not suspend any loads from the handlebars, as • Make sure that your vehicle complies with legal this will impede driving safety. requirements. • A hub brake (drum brake) may only be retro tted if • Only drive roadworthy vehicles. the fork is marked with an “N”.

  • Page 20: Warranty Information

    Power assist systems for any other use of the vehicle and/or for non- Individuals that don’t have enough power to push the compliance with safety-related instructions included pedals due to some physical limitation (e.g. on an in- in this manual and any resulting damage. That applies cline), will not be able to utilise the power assist sys- speci cally for the use of the trike in offroad conditions, tem.

  • Page 21: Exploded Drawings

    Exploded drawing Part ScooterTrike Item 16"-20" 10-000-00068 “L” SCT frame Scooter “L” 10-000-00068 “S” SCT frame Scooter “S” 10-000-00070 SCT rocker Scooter 10-000-00069 “L” SCT handlebar stem Scooter “L” 10-000-00069 “S” SCT handlebar stem Scooter “S” 10-000-00067 SCT fork 16" rigid 10-080-00049 SCT seat frame 2-part, incl.
  • Page 22 Exploded drawing Part Proven Special Item 26"-24" 26"-24" 10-000-00059 Frame Proven 26" 10-000-00063 Frame aluminium Special 26" 10-000-00052 Fork 26" rigid 10-000-0002 Fork 26" silver sprung 10-000-00061 10-000-00061 Axle housing Proven/Special 10-000-00060 10-000-00060 Tie rod 11-060-00002 Impeller front 26" aluminium box hub dynamo 11-060-00010 Impeller front 26"...
  • Page 23 Exploded drawing Part Fusione/Compagno Unione/Colletivo Item No: 26"-24"/26" 24"/24" 10-000-00074 Tandem frame Fusione/Compagno 10-000-00066 Tandem frame Unione/Collettivo " 10-000-00026 Fork 26 rigid " 10-000-00028 Fork 24 rigid 10-000-00061 10-000-00061 Axle housing 10-000-00060 10-000-00060 Tie rod " 11-060-00010 Impeller front 26 aluminium hollow chamber hub dynamo "...
  • Page 24 Exploded drawing Part Robusto Standard (S) Mobile Picco Famoso Item No: 26"-24" Delux (D) 24"-20" 18"-16" 12" 10-000-00006 10-000-00010 10-000-00014 10-000-00018 Chainstays 10-000-00005 10-000-00009 10-000-00013 10-000-00017 Main frame 10-000-00027 Fork 26" silver sprung 10-000-00026 10-000-00028 10-000-00029 10-000-00030 Fork rigid 10-000-00007 10-000-00011 10-000-00015 10-000-00019...
  • Page 25 Exploded drawing Part Capo Bene Item 20"-26" 24"-20" 10-000-00045 10-000-00048 Frame cpl. 10-000-00057 06/0045.16 Chainstays T-Bike 05/0045.34 06/0045.34 Steering plate left 05/0045.37 05/0045.37 Steering plate right 05/0045.25 06/0045.25 Bearing seat steering bar 05/0045.33 06/0045.33 Mud guard seat 05/0045.16 06/0045.16 Tie rod 05/0045.19 06/0045.19 Steering bar...
  • Page 26 Exploded drawing Part Primo Item No: 20"-26" 10-000-00046 Frame cpl. 10-000-00057 Chainstays T-Bike 05/0045.32 Pendulum axle Primo 05/0045.34 Steering plate left 05/0045.37 Steering plate right 05/0045.25 Bearing seat steering bar 05/0045.33 Mud guard seat 05/0045.16 Tie rod 05/0045.30 Steering bar Primo 05/0045.38 Steering column Primo 10-050-00016...
  • Page 27 Exploded drawing Part Primo-Quad Item Part Primo-Quad Item No: 20"-24" No: 20"-24" 10-000-00047 Frame cpl. 11-060-00004 Impeller rear 24" alu. hollow chamber 10-000-00006 Chainstays 04/0020.35 Cable duct 05/0045.32 Pendulum axle Primo 10-030-00014 Basket front 05/0045.34 Steering plate left 10-060-00007 Plug hub 05/0045.37 Steering plate right 10-000-00037...
  • Page 28 Exploded drawing Part Advanced Elegance Classic Alluminio Item No: 26"-24" 26"-24" 26"-24" 04/0020.36 04/0020.36 04/0020.36 04/0020.36 Frame 10-000-00002 10-000-00002 10-000-00002 10-000-00050 Chainstays 10-000-00001 10-000-00001 10-000-00001 10-000-00054 Main frame Fork 26" silver sprung 10-000-00027 10-000-00025 10-000-00025 10-000-00052 Fork 26" rigid Axle housing 10-000-00003 10-000-00003 10-000-00003...
  • Page 29 Exploded drawing Part Lesto Lesto Lesto Item No: 12" 16" 20" 08/0020.25 08/0020.27 08/0020.28 Frame 08/0000.03 08/0000.04 08/0000.05 Fork rigid 08/0020.07 08/0020.11 08/0020.11 Axle housing 08/6000.14 08/6000.25 08/6000.26 Front wheel 08/6020.03 08/6020.02 08/6020.05 Impeller rear right 08/7020.10 08/7020.11 08/7020.12 Impeller rear left 08/7020.03 04/7020.05 04/7020.05...
  • Page 30 Exploded drawing Part Grazia Merano Item No: 26"-24" 26"-24" 10-000-00021 10-000-00021 Main frame Grazia/Merano 10-000-00022 10-000-00022 Chainstays Grazia/Merano 10-000-00027 Fork 26" silver sprung 10-000-00025 Fork 26" rigid 10-000-00023 10-000-00003 Axle housing 10-000-00036 10-000-00031 Cable duct 10-000-00037 10-000-00037 Ribbed insert for footboard 80x40 10-070-00001 10-070-00001 Axle f.
  • Page 31 Exploded drawing Part Comfort Item 11.0090.01 Frame 11.0090.02 Chainstays 10.000.00028 Fork 24" rigid 10.000.00007 Axle housing 11.060.XXXXX Impeller front 24" aluminium hollow chamber 11.060.00004 Impeller rear 24" aluminium hollow chamber 10.070.00001 Axle right 10.070.00002 Axle left 10.060.00012 Mud guard front black 10.060.00024 Wheel protection strut 10.080.00047...
  • Page 32 Exploded drawing Part Therapy supports Item No: 12" 16" 20" 24" 26" 28" 03/0015.13 03/0015.16 03/0015.22 03/0015.01 03/0015.26 03/0015.50 Frame 03/0015.25 L 03/0015.25 L 03/0015.03 L 03/0015.03 L 03/0015.03 L 03/0015.03 L Jib left 03/0015.25 R 03/0015.25 R 03/0015.03 R 03/0015.03 R 03/0015.03 R 03/0015.03 R...

  • Page 33: Handover Protocol

    Handover certificate trade Details of dealership: Company name Street Street No. ZIP/City Telephone Customer details: Name Street Street No. ZIP/City Email Product Name Brand Delivery Date Con rmation ❑ I have thoroughly checked the above named product. ❑ The delivery was complete and without any apparent damage. ❑...

  • Page 34: Maintenance Log

    Maintenance log 7.0 Maintenance log Periodic maintenance by an authorised workshop is prerequisite to successful warranty claims. The maintenance intervals should not surpass 6 months in order to guarantee traf c safety and a technically sound vehicle! Have all maintenance work documented here: Date Stamp/ Authorised workshop Signature...

  • Page 35: Bicycle Passport

    Bicycle Passport Bicycle Passport Some good advice Note down the speci c data of your cycle immediately after purchase. You will then be able to provide an accurate description of you vehicle, should it be stolen. This point is of particular importance if you will be making an insurance claim.

  • Page 36: Declaration Of Conformity

    EC DECLARATION OF CONFORMITY EC DECLARATION OF CONFORMITY In compliance with Appendix VII of the Directive 93/42/EEC on Medical Products PFIFF Vertriebs GmbH I/ We Name and address of the manufacturer Wilhelmstraße 49 D-49610 Quakenbrück declare in sole responsibility that the products:...
  • Page 37 EC DECLARATION OF CONFORMITY EC DECLARATION OF CONFORMITY In compliance with Appendix VII of the Directive 93/42/EEC on Medical Products PFIFF Vertriebs GmbH I/ We Name and address of the manufacturer Wilhelmstraße 49 D-49610 Quakenbrück declare in sole responsibility that the products: Therapy Cycles Model Amico 12"...
  • Page 38 EC DECLARATION OF CONFORMITY EC DECLARATION OF CONFORMITY PFIFF Vertriebs GmbH I/ We Name and address of the manufacturer Wilhelmstraße 49 D-49610 Quakenbrück declare under our sole responsibility that the products: Model Advanced Model ScooterTrike “L” + “S” Model Alluminio...
