- Page 1 USER MANUAL U80PRO Ultrasonic Humidification System...

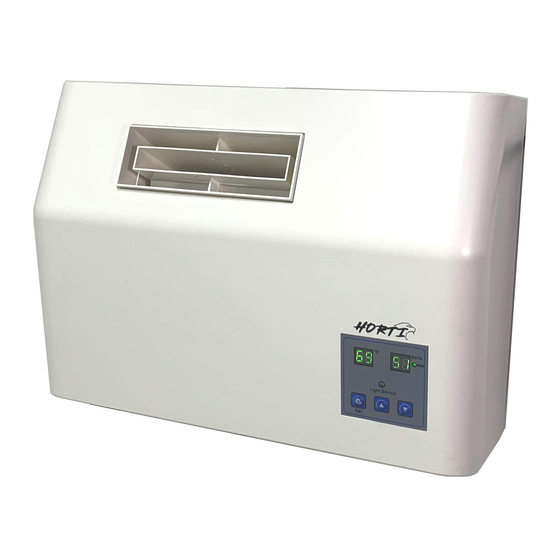

- Page 2 The Leader of Ultrasonic Misting Technology INTRODUCTION Thank you for choosing the Horticat U80PRO Ultrasonic Humidifier! This unit is designed for easily and efficiently adding humidity to any environment that requires on demand humidity frequently. This unit will disperse up to 80 pints of humidity per day. Depending on how tightly sealed your environment is or how much humidity is lost or removed, this unit can humidify up to 2000 sq.ft.
-
Page 3: Table Of Contents
The Leader of Ultrasonic Misting Technology Page Index 1 Product Overview ..............1.1 Appearance ..................3 1.2 Product Features .................. 3 1.3 Package Listing ..................5 2 Product Specifications ............. 2.1 Specifications ..................6 3 Installation Guideline ..............3.1 Installation ..................... 7 3.2 Connecting the Unit ................ -
Page 4: Product Overview
The Leader of Ultrasonic Misting Technology Product Overview 1.1 Appearance 1.2 Product Features Large Volume Output & Ultra-fine Mist Particle Size Ultrasonic mist output up to 80 pints per day. Ultra-fine mist droplets of ≤5μ with high gasification rate up to 80% to enhance humidification effectiveness. B Convenient Autofill Directly connects to water source and fills itself as needed with the built-in float mechanism. - Page 5 The Leader of Ultrasonic Misting Technology D Intelligent Auto-control With built-in humidistat for precise control of humidity ranging from 35-85%. E Overflow / Loss of Water Protection In the event the float valve gets stuck open, there is an overflow drainage outlet to protect the unit from overflowing and causing internal damage to the unit.
-
Page 6: Package Listing
The Leader of Ultrasonic Misting Technology 1.3 Package Listing Product/Pic Product/Pic Product/Pic Push-fit connector U80PRO Unit Saddle Valve 1/2" to 1/4" Push-fit 1/2" to 1/4" Push-fit 1/2" to 3/8" Push-fit connector PE shut connector off valve connector 25ft 25ft Expansion screws 3/8”... -
Page 7: Product Specifications
The Leader of Ultrasonic Misting Technology Product Specifications 2.1 Specifications Ambient 110AC ≤50℃ Input Voltage 9.9 lbs 50/60Hz Temperature Ambient ≤85%RH Power 130 W 14.33 lbs Humidity Atomizing 16.5x11.75x6.25 Mist Output 80 pints day Dimension Tap-water inches Media Mist Particle Water ≤5μm Atomizing... -
Page 8: Installation Guideline
The Leader of Ultrasonic Misting Technology Installation Guideline 3.1 Installation Mount securely to wall or structure that can support at least 30lbs. Please use the level ruler to position the wall mount panel on the wall, mark the holes, install the wall panel on the wall using anchors, and then hang the machine on the wall panel as shown below: 3.2 Connecting the Unit A. - Page 9 The Leader of Ultrasonic Misting Technology B. Connecting the Humidistat Plug in the supplied humidistat into the rj45 port next to the water inlet on the bottom of the unit. The humidistat is tucked into the foam in the box for shipping purposes, this humidistat can be extended by an rj45 extension to be hung anywhere you desire for a better relative humidity reading.
-
Page 10: Getting Started
The Leader of Ultrasonic Misting Technology Getting Started 4.1 Steps to Success 1) Be sure the drain inline valve is closed 2) Make sure sensor is plugged in via rj45 port by the water inlet on bottom side 3) Turn on your water source 4) Ensure the unit is plugged into power source 5) The unit is powered on 6) Adjust to desired humidity levels... -
Page 11: Setting The Humidity Levels
The Leader of Ultrasonic Misting Technology 1.3 Setting Parameters Parameter Value Description 35-85 Daytime desired humidity 2-10 Daytime humidity tolerance limit 35-85 Night humidity desired limit 2-10 Night humidity tolerance limit 0-41 Communication channel selection Set daytime humidity upper limit: In normal operation, press and hold the SET key, the controller enters into the setting state, the left digital display shows "d1", the right digital display shows the daytime humidity upper limit. - Page 12 The Leader of Ultrasonic Misting Technology Set night humidity upper limit: The left digital display shows "n1" and the right digital display shows the night humidity upper limit. Press ▲ ▼ key to modify, press SET key to save data and automatically goes to the next parameter setting.
-
Page 13: Maintenance
The Leader of Ultrasonic Misting Technology Maintenance 5.1 Air Filter Maintenance The air filter should be cleaned every week or as needed. To do so, remove the filter from the back of the unit clean and dry it then re-insert into the back of the unit. 5.2 Ultrasonic Plate Maintenance The ultrasonic mist plate and chamber needs to be cleaned every month or as needed. -
Page 14: Troubleshooting
The Leader of Ultrasonic Misting Technology Troubleshooting Problem Causes Treatment Clean the ultrasonic plate and Low output Buildup on ultrasonic plate. chamber. Verify unit is powered on. No output Verify water source is on. Basin water level too low。 Check drain valve is closed. Verify valve shuts off when in up Water overflow Float valve malfunction. - Page 15 The U-80PRO carries a six month limited manufacturer warranty. For support you may contact your local dealer or reach us directly at 1-800-259-3743, e-mail help@horticat.com find Instagram @horticatgrowtech. Horticat Grow Technologies 5656 Opportunity Drive Unit 5 Toledo, Ohio 43612 Email：Sales@horticat.com Phone : 1-800-259-3743 www.horticat.com...
