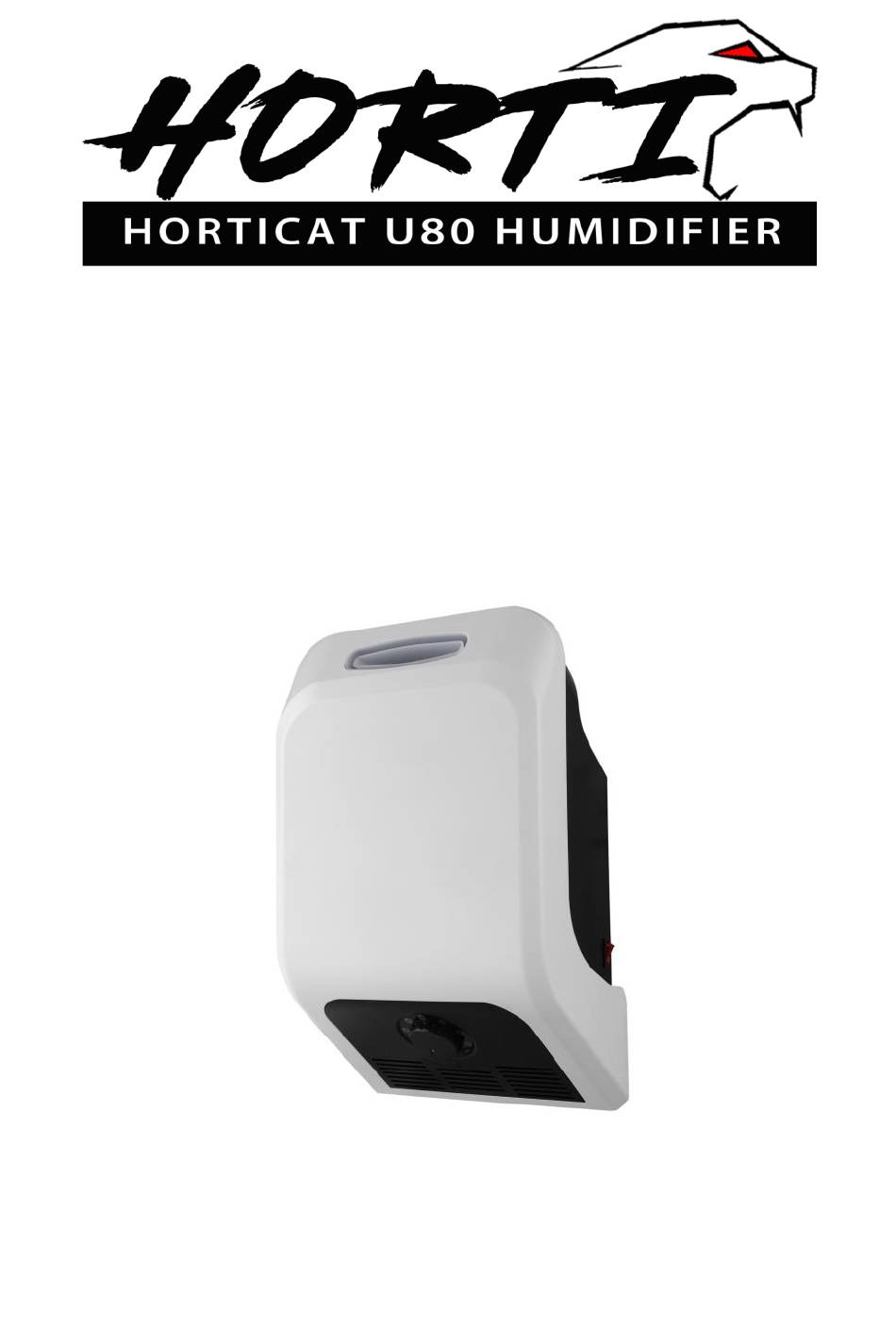

- Page 1 USER MANUAL U80 Ultrasonic Humidification System INTRODUCTION...
- Page 2 The Leader of Ultrasonic Misting Technology Thank you for choosing the Horticat U80 Ultrasonic Humidifier! This unit is designed for easily and efficiently adding humidity to any environment that requires on demand humidity frequently. Ideal for controlled growing or manufacturing needs.
-
Page 3: Table Of Contents
The Leader of Ultrasonic Misting Technology 1 Product Overview ..............2 1.1 Appearance ..................2 1.2 Product Features................. 3 1.3 Package Listing ................... 4 2 Product Specifications ............. 5 2.1 Specifications ..................6 2.2 How it Works ..................6 3 Installation Guideline ..............7 3.1 Installation .................. -
Page 4: Product Features
The Leader of Ultrasonic Misting Technology 1.2 Product Features Large Volume Output & Ultra-fine Mist Particle Size Ultrasonic mist output up to 80 pints per day. Ultra-fine mist droplets of ≤5μ with high gasification rate up to 80% to enhance humidification effectiveness. B Convenient Autofill Directly connects to water source and fills itself as needed with the built-in float mechanism. -
Page 5: Package Listing
The Leader of Ultrasonic Misting Technology In the event the float valve gets stuck open, there is an overflow drainage outlet to protect the unit from overflowing and causing internal damage to the unit. In the event of loss of water pressure or the float valve is stuck closed, the unit will stop functioning to protect itself from internal overheating and damage to the ultrasonic plate. -
Page 6: Product Specifications
The Leader of Ultrasonic Misting Technology U80 Unit Push-fit connector Saddle Valve 1/2" to 1/4" Push-fit 1/2" to 1/4" Push-fit 1/2" to 3/8" Push-fit connector connector PE shut off valve connector ¢5X80 50ft 5pcs of Hose nail for 1/4" &... -
Page 7: Specifications
The Leader of Ultrasonic Misting Technology 2.1 Specifications Ambient 110AC ≤50℃ 9.9 lbs Input Voltage 50/60Hz Temperature Ambient ≤80%RH Power 120 W 14.33 lbs Humidity 14.25x8x21.5 Atomizing Dimension Mist Output 80 pints day Tap-water inches Media Mist Particle Water ≤5μm 50~130 °F Atomizing 10ft throw... -
Page 8: Connecting The Unit
The Leader of Ultrasonic Misting Technology 3.2 Connecting the Unit A. Overflow and Drain Connections Connect the tubing as shown in the picture. Be sure to insert the rubber rings (washers). Connect supplied tubing and run to the nearest drain, this U shaped piping assembly connection is for draining the unit to clean and to provide over flow outlet in case of float device malfunction. -
Page 9: Getting Started
The Leader of Ultrasonic Misting Technology Getting Started 4.1 Steps to Success 3. Open outlet port cover Chart 3.5 1. Be sure the drain valve is closed 4. Ensure unit is plugged into power source 2. Turn on 6. Adjust to desired water source humidity level 5. -
Page 10: Maintenance
The Leader of Ultrasonic Misting Technology Note: When using multiple units they should each be connected to the water supply separately, drain separately and have one filter for each unit as shown in chart 4.2. Maintenance 5.1 Air Filter Maintenance The air filter should be cleaned every six months or as needed. -
Page 11: Troubleshooting
The Leader of Ultrasonic Misting Technology Troubleshooting Problem Causes Treatment Adjust the float valve. 1. Basin water level too high。 Low output Clean the ultrasonic plate and 2. Buildup on ultrasonic plate. chamber. Verify unit is powered on. Verify water source is on. No output 1. - Page 12 The Leader of Ultrasonic Misting Technology Note: The float valve should be about 1 inch above the ultrasonic plate, when the basin fills and the float valve closes there should be approximately 2 inches of water.
- Page 13 Warranty and Customer Service The U-80 carries a 6-month limited manufacturer warranty. For support you may contact your local dealer or reach us directly at 1-800-259-3743 or e-mail us at help@horticat.com. Horticat Grow Technologies 5656 Opportunity Drive Unit 5 Toledo, Ohio 43612 Email：Sales@horticat.com Phone : 1-800-259-3743...
