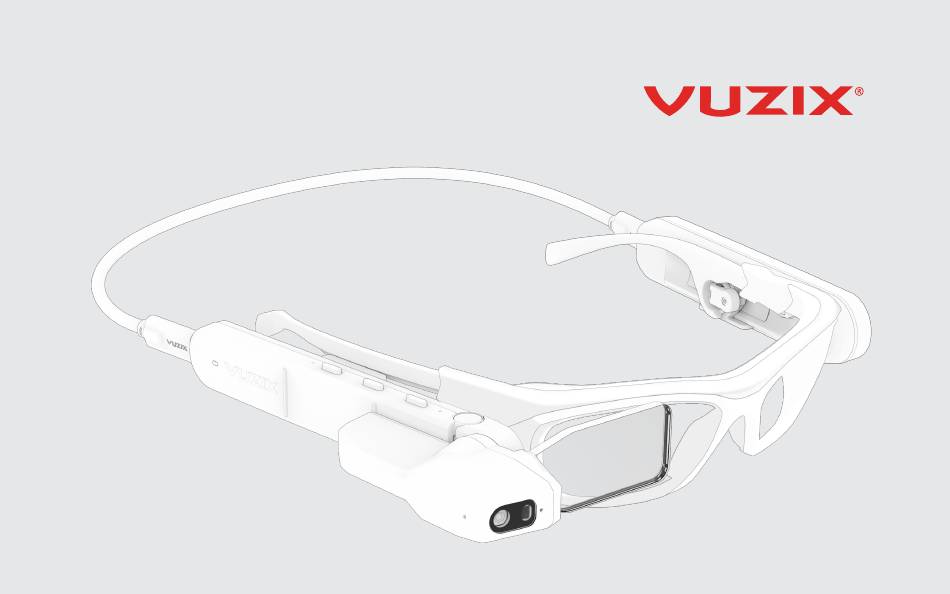

- Page 1 M4000 Quick Start Manual v1.2 Model 490...
- Page 2 CONGRATULATIONS ON YOUR NEW VUZIX M4000 SMART GLASSES SYSTEM Your M4000 Smart Glasses System is an ergonomically designed, wearable Android-based computer with Wi-Fi connectivity, voice-command functionality and HD camera — right out of the box, including: • M4000 see-through viewer with adjustable waveguide display screen •...
- Page 3 CHARGING FOR FIRST-TIME USE USB-C BATTERY VIEWER USB-C TO USB-C CABLE Charge battery before use with a standard USB wall charger, wait until all three LEDs are solid. Assembling the M4000 mounting system Can take up to two hours if the battery is fully empty. Power to M4000 from Battery...
- Page 4 ASSEMBLING YOUR M4000 SMART GLASSES SYSTEM Before attaching the viewer to either side of the smart glasses frame, determine your dominant eye for optimum use of M4000 capabilities Attach viewer to your preferred side of the safety glasses by sliding the mounting rail onto the temple mount on the frames.
- Page 5 ADJUSTING & CLEANING THE M4000 Holding only the plastic housing of the lens, adjust left, right, up and down for optimal use. NEVER adjust by touching/moving the waveguide display—doing so may damage or destroy the waveguide display. When cleaning, you may stabilize the display by gently holding the outer edge, but only if the rest of the unit is properly supported.
- Page 6 NAVIGATING THE M4000 USB-C Port Mounting Rail Navigation Buttons Back Center Front Power LED Waveguide Display Touchpad Power Button (rotate arm to access) Camera Flash Recording LED...
-
Page 7: Touchpad Navigation
TOUCHPAD BUTTON NAVIGATION Short press for primary functions: front: forward navigation center: back navigation back: select Long press (approx one sec) touch for secondary functions: front: right-click center: exit to home menu back: back one step TOUCHPAD NAVIGATION The 2-axis pad responds to up and down or back-to-front finger swipes. - Page 8 Open Scanner from the main carousel. Center available QR code in viewfinder to scan. *Vuzix cares about your privacy and security. By visiting this link, our website sends your browser the software to create the QR code. Your confidential data is processed locally on your own device, and never sent to our server.
-
Page 9: Registering Your Device
INSTALLING APPLICATIONS One finger: Applications can be installed on the M4000 via the Vuzix App Store. The Vuzix App Store will Register your device by logging on install and manage applications via the OTA to your Vuzix App Store account or... - Page 10 GETTING THE LATEST UPDATES The M4000 will automatically check for updates once it is connected to Wi-Fi. Click Update Now on the following pop-up. Note: If your corporate firewall prevent access to the external website, your system administrator may provide additional settings for your M4000 or may provide a software update offline.
- Page 11 DEVELOPING FOR M4000 Developer documentation is available at vuzix.com/developers. In order to power the unit during development, please note: • The included battery does not support data pass-through. • The viewer should be plugged into the developer’s machine with a USB C-to-C cable for the best experience.
-
Page 12: Troubleshooting Common Issues
TROUBLESHOOTING COMMON ISSUES SYMPTOM DIAGNOSIS REMEDY M4000 will not turn on and Battery is discharged. Connect battery to wall charger for up to two status LED is not lit. hours for a full charge, then connect battery to viewer. M4000 will not turn on and Internal battery is Leave viewer connected to USB power. -
Page 13: Cleaning And Care
CLEANING AND CARE • Clean the viewer and battery with a damp cloth and mild detergent if necessary. Do not use all-purpose cleaners as these may damage the seals and impair the water resistance. • Make sure that there is no standing water in the USB connector before inserting the cable. -
Page 14: Regulatory Information
REGULATORY INFORMATION Regulatory information can be viewed from the Settings application: Open “System” Open “About Glasses” Open “Regulatory Labels” FCC Caution: installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance This transmitter must not be co-located or operating in with the instructions, may cause harmful interference to radio conjunction with any other antenna or transmitter. - Page 15 The device has been tested and in compliance with SAR limits. et/ou aux limites d’intensité de champ RF, les utilisateurs This equipment should be installed and operated with minimum peuvent sur l’exposition aux radiofréquences et la conformité distance 0mm between the radiator & your body. and compliance d’acquérir les informations correspondantes.
-
Page 16: Learning More
25 Hendrix Road West Henrietta, NY 14586 ©Vuzix 2020. This User Manual is subject to change. Please read the included safety information, also at www.vuzix.com/support/safety-warranty-m-series before using this product. All trademarks belong to respect owners. 490PB0001 (0003) – M4000 QUICK START GUIDE...
