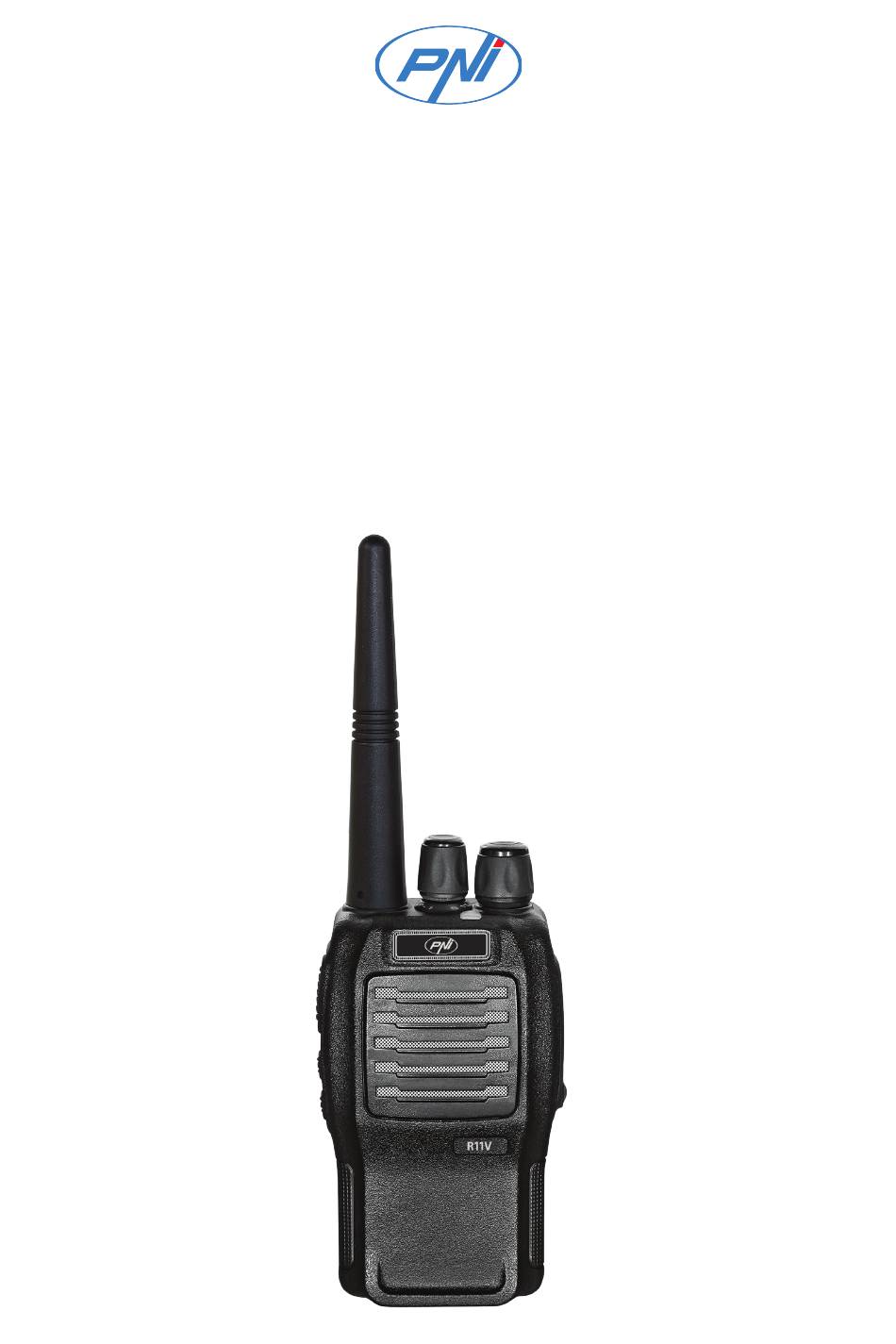

- Page 1 Statie radio UHF portabila PNI PMR R11V MANUAL DE UTILIZARE...
-
Page 2: Table Of Contents
Specificatii tehnice ... 7 Ÿ 1. INTRODUCERE: PNI PMR R11V este o statie radio portabila care se poate folosi gratuit in majoritatea tarilor din Europa. PNI PMR R11V este solutia ideala pentru profesionistii care vor sa fie in contact cu colegii (constructii, cladiri, hoteluri, show-uri televizate) sau cu cei apropiati (prietenii si familia) in timpul liber. -
Page 3: Atentionari Speciale
4. ATENTIONARI SPECIALE: - Pentru a nu deteriora statia radio, nu folositi statia fara o antena corespunzatoare - Pentru reparatii, adresati-va doar unui service specializat - Inchideti statia daca va aflati intr-o benzinarie - Nu expuneti statia la soare si nu o lasati in apropierea corpurilor de incalzire - Daca observati ca din statie iese fum sau miros, inchideti imediat statia radio si duceti-o la un centru service sau la distribuitor - Pentru a nu deteriora statia, nu emiteti timp prea indelungat... -
Page 4: Instalarea Accesoriilor
7. INSTALAREA ACCESORIILOR: Instalarea acumulatorului Pozitionati acumulatorul pe statie ca in imaginea de mai jos. Apasati usor in jos, pana cand auziti un click. (Imaginea 1) Pentru a scoate acumulatorul, apasati pe butonul de siguranta al acestuia, in timp ce trageti in sus. - Page 5 Instalarea clemei pentru curea si conectarea castilor: Fixati clema pentru curea folosind suruburile din pachet. (Imaginea 5) Pentru a conecta o pereche de casti, indepartati protectia de cauciuc si conectati mufa castilor. (Imaginea 6) Imaginea 5 Imaginea 6 Instalarea snurului pentru incheietura: Fixati snurul pentru incheietura mainii ca in imaginea de mai jos.
-
Page 6: Descriere Comenzi Si Functii
8. DESCRIERE COMENZI SI FUNCTII: Selector canale: Rotiti pentru a schimba canalele (1 - 16) Antena Buton inchis/deschis Volum: LED indicator: Rotiti in sensul acelor de LED Rosu - emisie ceasornic pentru a deschide LED verde - receptie statia Difuzor Microfon R11V Buton PTT:... -
Page 7: Programare Functii Taste
9. PROGRAMARE FUNCTII TASTE: Tastele 1 si 2 pot fi programate cu ajutorul software-ului dedicat cu urmatoarele functii: MONITOR SCAN ON SCAN TEMPORARY DELETE TALK AROUND REVERSE FREQUENCY VOX ON ONITOR Functia Monitor permite dezactivarea temporara a squelch-ului pentru a receptiona eventuale semnale extrem de slabe. -
Page 8: Specificatii Tehnice
10. SPECIFICATII TEHNICE: Functii: - Monitor - Scan - Scan temporary delete - Talk Around - Frecventa inversata - Vox - BCL (Busy Channel Lockout - Blocare canal ocupat) - Codare DTMF ANI - Squelch programabil (9 nivele) - TOT (Time Out Timer) 0 - 270 secunde - Economisire baterie - Roger Beep - Taste programabile... - Page 9 Portable UHF transceiver PNI PMR R11V USER MANUAL...

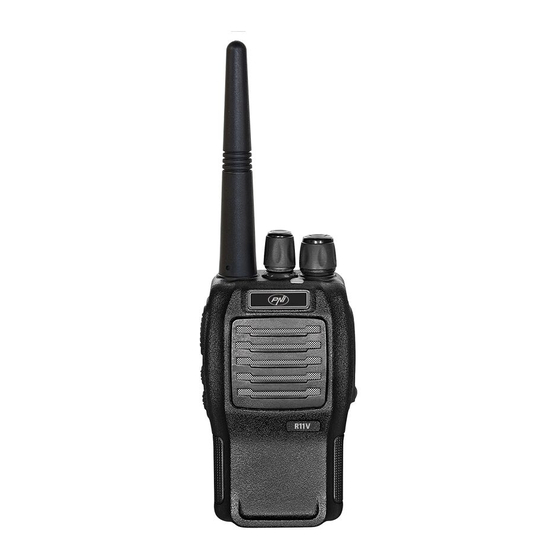

- Page 10 PNI PMR R11V is a portable transceiver that is free use in almost all European countries. PNI PMR R11V is the ideal and effective solution for the professionals who need to stay in touch with the working team (in construction sites, buildings, shows, trade fairs or hotels) or for leisure users that just want to keep up with friends and family.
- Page 11 4. CAUTIONS: - Do not operate this radio without a proper antenna attached - Refer service to qualified technicians only - Turn the radio off while parked in a gasoline service station - lf it appears that the radio diffuses peculiar smell or smoke, please shut off its power immediately, then contact with the nearest dealer.
- Page 12 7. INSTALLING ACCESORIES: Installing the battery Match the two grooves of the battery pack with the corresponding guides on the back of the transceiver then slide it. After that press the upper of the battery pack until a clicik sounds. (Img 1) To remove the battery pack, turn off power and puii back on the release latch and slide the pack away from the transceiver.
- Page 13 Installing the belt clip and the speaker/microphone: Attach the belt clip using the two supplied screws. You can unscrew it to remove the belt clip. (Img 5) Open the cover of the speaker/microphone jack and insert the speaker/microphone plugs into the jacks castilor.(Img 6) Img 5 Img 6 IInstalling the wrist strap:...
- Page 14 8. OPERATIONS AND FUNCTIONS: Channel selector: Rotate to change the channel (1 - 16) Antenna On/Off Volume: LED indicator: Turn clockwise to switch ON the red-transmiting transceiver. To switch OFF the green- receiving transceiver, turn counterclockwise until a click sounds. Rotate to adjust the volume leveli.
- Page 15 9. PROGRAMMABLE KEY FUNCTIONS: Distributor can program the SIDE KEY 2 and SIDE KEY 3 with the functions as follow (long press/short press): MONITOR SCAN ON SCAN TEMPORARY DELETE TALK AROUND REVERSE FREQUENCY VOX ON ONITOR Monitor function allows to temporarily disable the squelch for receiving the very weak signals possible.
- Page 16 10. TECHNICAL SPECIFICATIONS: Functions: - Monitor - Scan - Scan temporary delete - Talk Around - Reverse frequency - Vox - BCL (Busy Channel Lockout) - DTMF ANI - Squelch programabil (9 nivele) - TOT (Time Out Timer) 0 - 270 secunde - Energy saving function - Roger Beep - Programmable keys...
- Page 17 CODURI CTCSS SI DCS DISPONIBILE LA PROGRAMAREA DE PE CALCULATOR CTCSS AND DCS CODES AVAILABLE BY PC PROGRAMMING...
- Page 18 TABELUL FRECVENTELOR INSTALLED FREQUENCIES CHART RX frequency TX frequency QT/DQT Dec QT/DQT Enc 446.00625 446.00625 446.01875 446.01875 446.03125 446.03125 446.04375 446.04375 446.05625 446.05625 446.06875 446.06875 446.08125 446.08125 446.09375 446.09375 446.00625 446.00625 114.8 114.8 446.01875 446.01875 114.8 114.8 446.03125 446.03125 114.8 114.8 446.04375 446.04375...
- Page 19 RESTRICTII DE UTILIZARE CONFORM DIRECTIVEI 99/05/CE INFO ON USE RESTRICTIONS ACCORDING TO THE 99/05/CE DIRECTIVE Country PMR446 Use restrictions and other comments Austria Free use Belgium Free use Bulgaria Free use Croatia Free use Cyprus Free use Czech Republic Free use Denmark Free use Estonia...
