Please read all instructions thoroughly and carefully prior to installing this product.
Retain these instructions for future reference.
Failure to follow these instructions could result in voiding the product warranty.
READ FIRST: IMPORTANT SAFETY INSTRUCTIONS
Before you begin install, service, or maintenance of this product, follow these general precautions.
•
To reduce the risk of death, personal injury or property damage from fire, electric shock, falling parts, cuts/abrasions
and other hazards, please read all warnings and instructions included with and on this product prior to installation.
•
For residential installation: If you are unsure about the installation of this product, consult a qualified licensed
electrician.
•
Do not mount the unit against flammable surfaces.
•
This product is intended to be used outdoors and be subject to the elements, such as rain and snow.
•
We recommend it to be mounted at least 6' 6" off the ground.
•
This LED product must be powered directly to a switched circuit.
•
This product should not be used in areas with limited ventilation or high ambient temperatures.
•
This product CANNOT be used with a dimmer switch, motion or occupancy sensor or other electronic switching
devices.
•
This product is intended to be connected to a properly installed and grounded UL listed junction box.
WARNING: RISK OF ELECTRICAL SHOCK
•
Turn off electrical power at fuse or circuit breaker box before wiring product to the power supply.
•
Verify voltage is 110V-240V before installing.
•
Make all electrical and grounded connections in accordance with the National Electric Code and any applicable local
code requirements.
•
All wiring connections should be capped with UL listed wire connectors.
CAUTION: RISK OF PRODUCT DAMAGE
•
Never connect fixture with the power on.
•
Do not mount or support product in a manner that can cut the outer wire jacket or damage the wire insulation.
•
Avoid covering LED products with insulation, foam, or other materials that will prevent convection or conduction
cooling.
•
LED products are polarity-sensitive, ensure proper polarity before installation.
•
Electrostatic Discharge (ESD) can cause damage to LED products. Wear personal grounding equipment during
Installation and service of the product.
•
Do not touch the individual electronic components, it may cause ESD (Electronic Discharge), shorten lamp life or alter
performance.

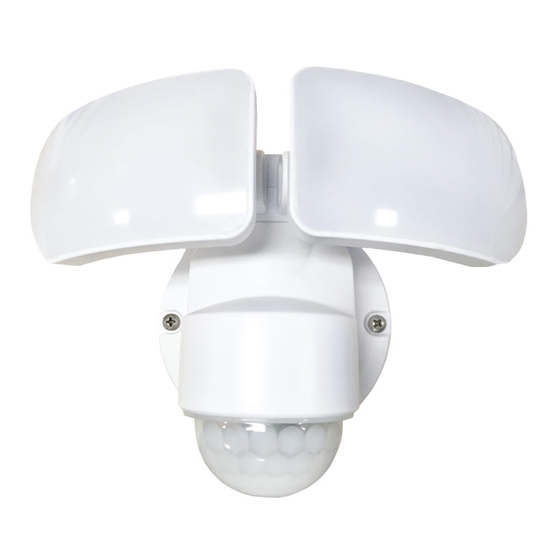

Motion Activated 2200 Lumen
LED Security Light
Model: 1OV-2200M-PW/ 1OV-2200M-PB
rev030717
1
Advertisement
Table of Contents
Related Manuals for StonePoint 1OV-2200M-PW
Summary of Contents for StonePoint 1OV-2200M-PW
- Page 1 Motion Activated 2200 Lumen LED Security Light Model: 1OV-2200M-PW/ 1OV-2200M-PB Please read all instructions thoroughly and carefully prior to installing this product. Retain these instructions for future reference. Failure to follow these instructions could result in voiding the product warranty.
- Page 2 CAUTION: RISK OF INJURY • Avoid direct eye exposure to the light source while it is on. • LED LIGHTS ARE EXTREMELY BRIGHT, UNDER NO CIRCUMSTANCES SHOULD YOU LOOK DIRECTLY INTO AN LED LIGHT, THIS MAY CAUSE IRREPARABLE DAMAGE TO THE EYES. •...
- Page 3 MOUNTING AND WIRING THE LIGHT NOTE: RECOMMENDED INSTALLATION HEIGHT IS BETWEEN 6 ½ AND 10 FEET This product is intended for use with the enclosed gasket and with a junction box marked “for use in wet locations”. Before you begin make sure that your power is turned off at your circuit breaker box. Do not rely on the switch power being turned off.
- Page 4 Connect supply wires with wire nuts (not included) as shown in main diagram on page 3. Black supply wire connects to the Black power supply wire (Live) White product wire connects to the White supply wire (Neutral) Install the light fixture (B) to the quick connect (D). Use silicon sealant (not included) around the perimeter of the light to seal for Screw in the quick connect screw (C) to hold the fixture in place.
- Page 5 LUX SETTINGS The LUX settings control when the light will come on and the amount of light needed to turn the light on. The LUX settings are marked on the bottom side of the motion sensor. Use one of the three pre-determined settings as illustrated above. To adjust the light to come on when it is darker outside, slide the switch to “Night”.
- Page 6 PRODUCT WARRANTY Keystone Group will cover any manufacturing defect for a period of three (3) years from the date of purchase with original proof of purchase. Keystone Group will either repair or replace your product at our discretion. The warranty is not transferable and is only valid to the original purchaser. This warranty does not apply to the following;...
