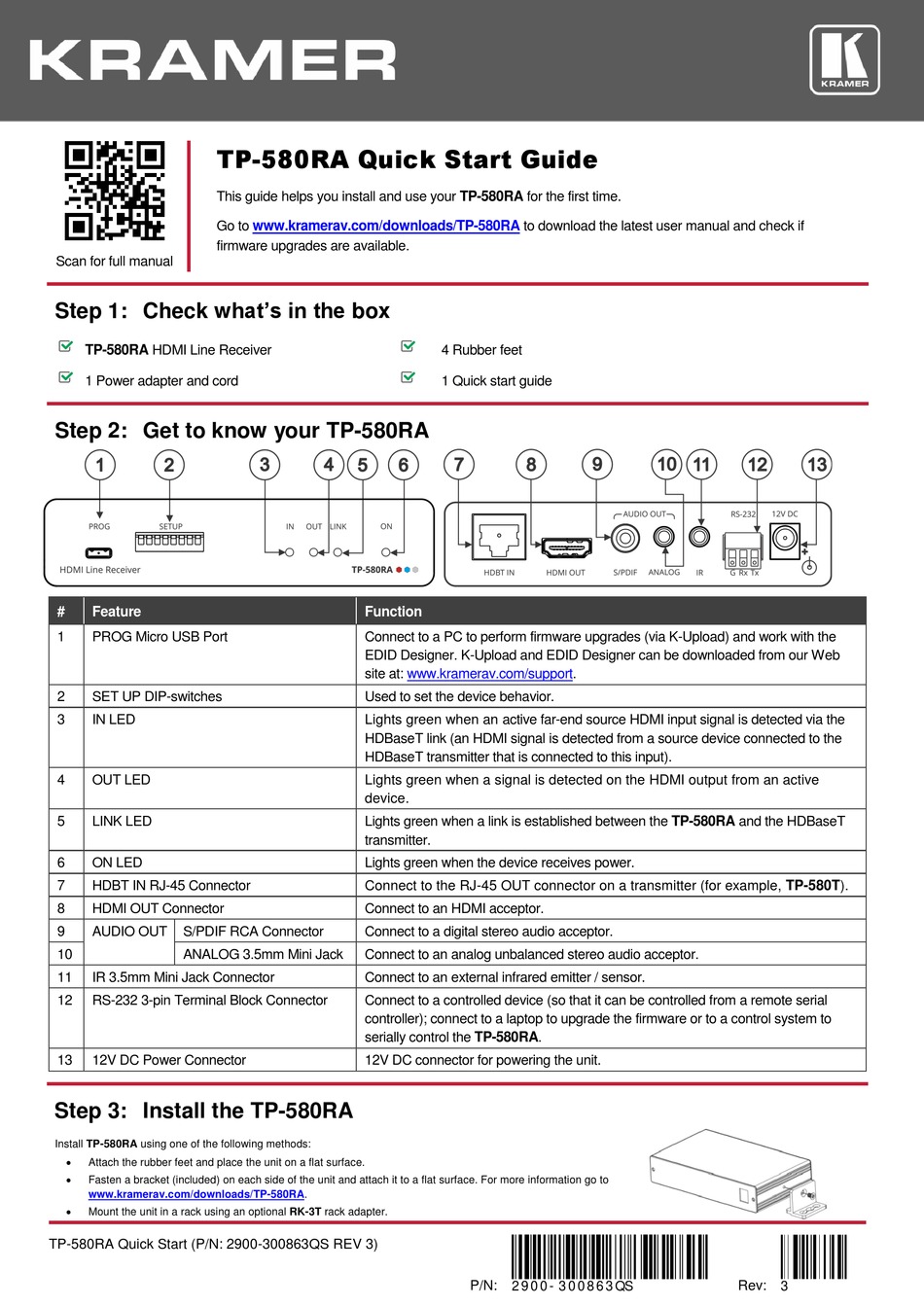

TP-580RA Quick Start Guide
This guide helps you install and use your TP-580RA for the first time.
Go to
firmware upgrades are available.
Scan for full manual
Step 1: Check what's in the box
TP-580RA HDMI Line Receiver
1 Power adapter and cord

Step 2: Get to know your TP-580RA

# Feature
1 PROG Micro USB Port
2 SET UP DIP-switches
3 IN LED
4 OUT LED
5 LINK LED
6 ON LED
7 HDBT IN RJ-45 Connector
8 HDMI OUT Connector
9 AUDIO OUT S/PDIF RCA Connector
10 ANALOG 3.5mm Mini Jack
11 IR 3.5mm Mini Jack Connector
12 RS-232 3-pin Terminal Block Connector
13 12V DC Power Connector

Step 3: Install the TP-580RA

Install TP-580RA using one of the following methods:

Attach the rubber feet and place the unit on a flat surface.

Fasten a bracket (included) on each side of the unit and attach it to a flat surface. For more information go to
www.kramerav.com/downloads/TP-580RA.

Mount the unit in a rack using an optional RK-3T rack adapter.
TP-580RA Quick Start (P/N: 2900-300863QS REV 3)
www.kramerav.com/downloads/TP-580RA
Function
Connect to a PC to perform firmware upgrades (via K-Upload) and work with the
EDID Designer. K-Upload and EDID Designer can be downloaded from our Web
site at: www.kramerav.com/support.
Used to set the device behavior.
Lights green when an active far-end source HDMI input signal is detected via the
HDBaseT link (an HDMI signal is detected from a source device connected to the
HDBaseT transmitter that is connected to this input).
Lights green when a signal is detected on the HDMI output from an active
device.
Lights green when a link is established between the TP-580RA and the HDBaseT
transmitter.
Lights green when the device receives power.
Connect to the RJ-45 OUT connector on a transmitter (for example, TP-580T).
Connect to an HDMI acceptor.
Connect to a digital stereo audio acceptor.
Connect to an analog unbalanced stereo audio acceptor.
Connect to an external infrared emitter / sensor.
Connect to a controlled device (so that it can be controlled from a remote serial
controller); connect to a laptop to upgrade the firmware or to a control system to
serially control the TP-580RA.
12V DC connector for powering the unit.
to download the latest user manual and check if
4 Rubber feet
1 Quick start guide
