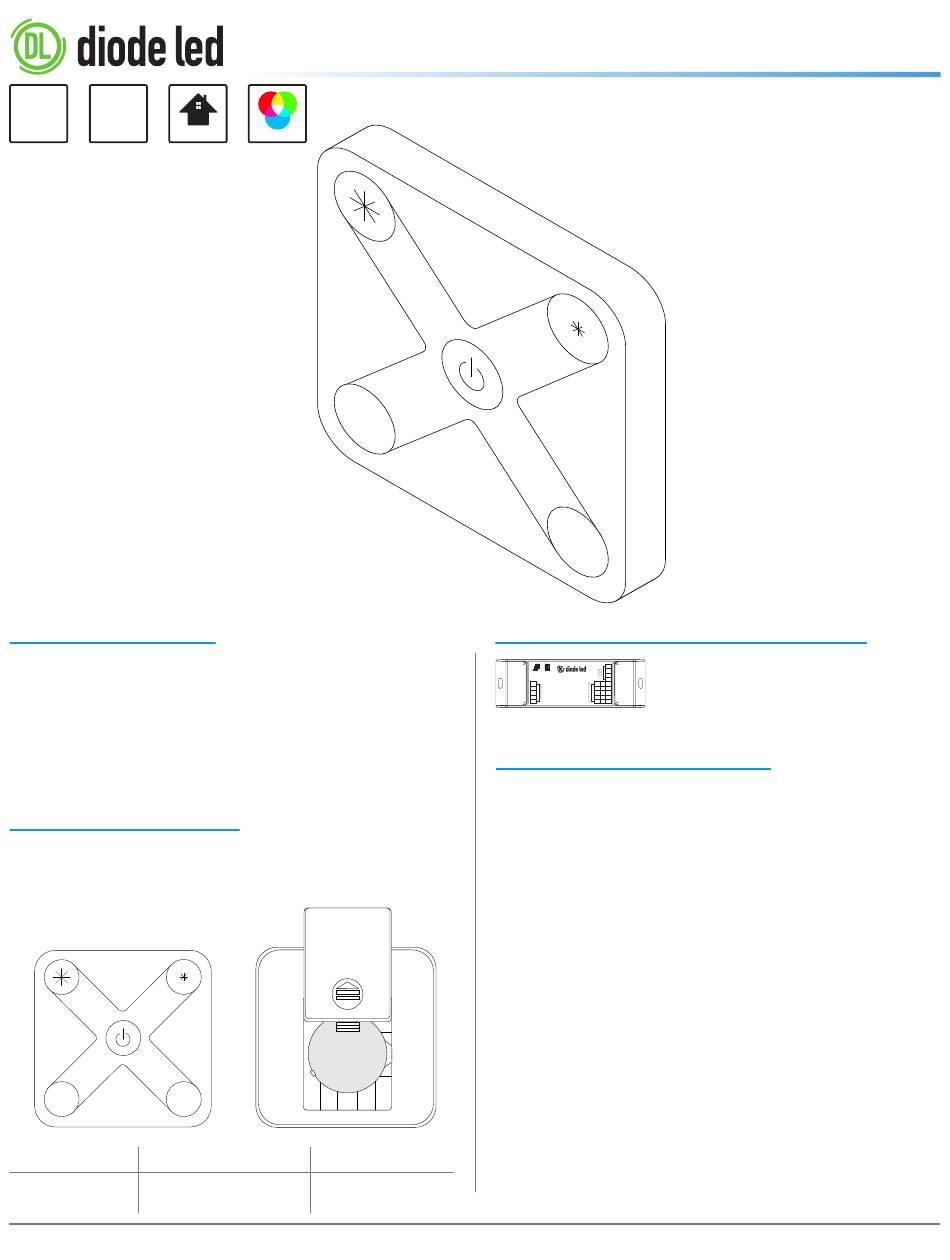

DIODE LED TOUCHDIAL Installation Manual

12VDC 24VDC
DRY LOCATION
SAFETY & WARNINGS
1. Only for use with compatible 12V and 24VDC constant voltage
luminaires.
2. This product is rated for indoor installation and is not protected
against moisture.
3. Do not modify product beyond instructions or warranty will be
void.
QUICK SPECS / MODELS
DI-RF-REM-RGBW-1
FRONT
RGB
W
Input Operating Frequency Dimensions
3V (CR2430)
869.5/434MHz
Battery (Included)

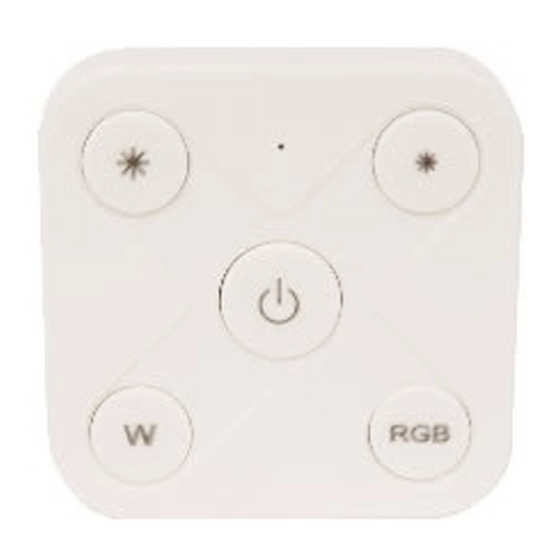

TOUCHDIAL
Mini Remote RGB(W) Control INSTALL GUIDE
™
TOUCHDIAL
®
COLOR-CHANGING
W
BACK
CR2430
Battery
2.16 x 2.16 x 0.43 in.
(L x W x H)
Mini Remote RGB(W) Control
™
R G
B
ADDITIONAL TOUCHDIAL COMPONENTS
V−
®
V−
MASTER COMPANION
V+
TOUCHDIAL
™ Receiver
LEARNING KEY
V+
GND V+ V+ V+
D1+ W WW R
D1─ W CW G
D2+ W WW B
D2─ W CW W
APPROVED LED LUMINAIRES
The TOUCHDIAL Mini Remote RGB(W) Control is compatible
with all Diode LED 12V and 24VDC color constant voltage tape
lights and fixtures.
1 OF 3
INSTALLATION GUIDE
DI-RF-REC-CV-A
TOUCHDIAL Receiver
(Required)
IG070319-2.0
