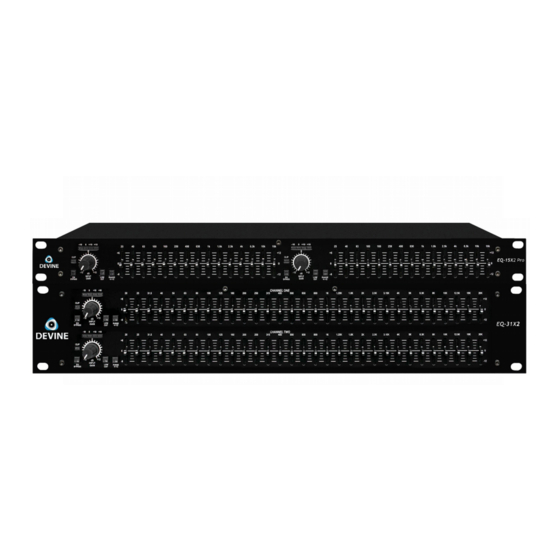

- Page 1 EQ series (EQ-15X2 Pro, EQ-31X2, EQ-31X2 Pro) Graphic equalizer User manual The information in this user manual is subject to change at any time without notice. Version: 1.0 Date of creation and author's initials:23-09-2017 RV Revision date and author's initials: -...
- Page 2 Introduction Thank you for purchasing this Devine EQ series equalizer. We advise that you read this user manual in its entirety before unpacking the contents of the box, so that you are familiar with all of the functionality that this product has to offer.
-
Page 3: Safety Instructions
Safety instructions WARNING! Keep this device away from moisture, water and rain to avoid the chance of electric shocks. Everyone involved with the installation, operation and maintenance of this device must: - Be qualified - Be skilled - Have read the instructions in this user manual - Be sure that neither the device nor the included accessories are damaged. - Page 4 - Should the device not be used in the manner described in this user manual, damages or even injuries could occur. Devine cannot be held responsible for any injuries or damages that occur as a result of improper use of this product.
- Page 5 Guidelines and operation of the device Devine's EQ series is equipped with lots of practical features to get the best out of your speaker system. On this page, you can see the possibilities offered on the front of each model and on the next page the back of each unit is shown.
- Page 6 1. power input 2. balanced 3-pin XLR output channel 2 3. balanced TRS jack output channel 2 4. balanced TRS jack input channel 2 5. balanced 3-pin XLR input channel 2 6. balanced 3-pin XLR output channel 1 7. balanced TRS jack output channel 1 8.
-
Page 7: Operating The Device
Operating the device What is an equalizer? An equalizer is a device used to manipulate the sound balance of an audio source. It is typically used to adjust the audio signal from a sound source like a mixer or DJ controller for optimal sound reproduction by the speaker system. -
Page 8: Slide Controls
In most situations, using a separate subwoofer is the best solution. Contact your retailer if you need more advice about this. Slide controls The EQ series equalizers are equipped with sliders that can be used to adjust certain frequency ranges. The greater the number of controls, the more accurately the sound can be adjusted. Functionality The functionality of each equalizer model is different, which is why we have specified them separately. -
Page 9: Inputs And Outputs
LED indicator that clearly shows the selected range. Housing The EQ series equalizers can all be mounted in front or top-loading 19-inch racks or flight cases. The equalizers take up either 1, 2 or 3 units of rack height space. Each device is equipped with rack ears that have pre-drilled holes for easy mounting. -
Page 10: User Applications
Protection during transport Products in the Devine EQ series are suitable for mobile use, but they should be adequately protected during transport. They are not waterproof and caution is therefore advised if they are taken outside during rain or in adverse weather conditions. - Page 11 Solving equalizer problems If you have a problem with your equalizer, please consult this troubleshooting section for possible solutions. If, after consulting this section, the problem remains unresolved, please contact your dealer for more information and/or help. This troubleshooting section contains information on how to solve the most common equalizer problems, but it does not and cannot cover every eventuality.
- Page 12 Volume control is too loud Turn the volume down The tone controls for certain Turn all the tone controls back to frequencies are too low or too high 12 o'clock and listen to see if clipping is still audible. Speaker or amplifier is faulty If a speaker or amplifier is exposed to a loud, distorted, or clipped signal for a longer period of time,...
-
Page 13: Specifications
Specifications General specifications for all models: – suitable for manipulating the tone of a wide range of audio signals – compact 19-inch 1U model to comprehensive 19-inch 3U model – two-channel setup for dual mono or stereo use – inputs and outputs with various connectors –...
