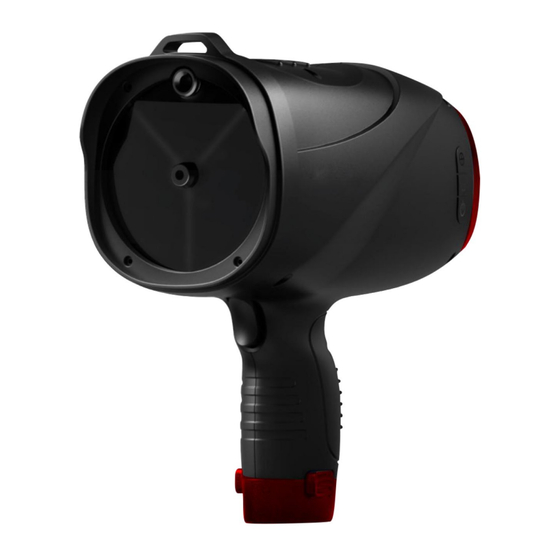

- Page 1 TDL 300 User Manual Handheld Laser Methane Detector www.infraredcamerasinc.com | sales@infraredcamerasinc.com INFRARED CAMERAS INC. We are IR ™ Phone: (409) 861-0788 2105 W. Cardinal Dr. Toll Free: (866) 861-0788 Beaumont, TX 77705...
- Page 2 Copyright About The contents of this user manual are proprietary to ICI. Copy, ICI manufactures complete Our knowledge and Additionally, our ICI 7320 infrared systems and experience stems from was awarded “Product of translation, storage in a database or retrieval system, or in any technology.
- Page 3 ICI will prepare and revise this user service department or caused by problems due to force majeure, manual to ensure its accuracy and reserves the right to make will incur maintenance charges.
- Page 4 • Check the battery before using the instrument and make sure the • Only a qualified TDL 300 repair technician should attempt to connection is correct. repair or adjust the detector.
-
Page 5: Table Of Contents
Symbol Definition Contents Before continuing or using the device the operator should be Overview -------------------------------------------------------------------------------------- familiar with the symbols that may appear in this manual: Main Function & Technical Features ------------------------------------ Main Technical Specification ----------------------------------------------- Product Introduction ---------------------------------------------------------- Principle Introduction ------------------------------------------------------------------- Detection Principle -------------------------------------------------------------... -
Page 6: Overview
1. Overview The Tunable Diode Laser 300 (TDL 300) is an advanced handheld 1.1 Main Function & Technical Features remote laser gas detector developed by ICI. This solution adopts the most advanced non-contact and remote technology in the world, allowing inspectors to see gases in places they cannot reach. The •... -
Page 7: Main Technical Specification
1.2 Main Technical Specification CH 4 • The sensitivity to gas relies on the distance of the device to the Sensitivity Distance ≤ 10 m Sensitivity: 5 ppm.m target, and the reflective surfaces in the area Distance ≤ 25 m Sensitivity: 10 ppm.m • The device uses “Methane Column Integral Concentration” as the Range 0 ~ 50000 ppm.m measurement unit (ppm.m);... -
Page 8: Product Introduction
1.3 Product Introduction TDL 300 adopts a transceiver optical design. The remote detector will send two laser beams; the detector laser is invisible and the • The Spotter laser is a Class 3R laser. Do NOT stare directly into spotter laser is visible. -
Page 9: Detection Principle
Reflection Light Fault: a fault caused when the handheld detector When the laser of the TDL 300 is aimed at the target gas pipeline, cannot get enough returned light because the reflective rate is low, part of the laser beam is absorbed by leaking Methane. - Page 10 3. Operational Instruction 3.1 System Components The TDL 300 handheld remote laser gas detector package contains the device, two batteries, charger, shoulder strap, and carrying case. 3.1.1 Battery Pack The battery is a rechargeable Lithium-ion pack; two pieces are provided. One battery is designed to provide 6 hours of operating...
-
Page 11: Operation Instruction
3.1.2 Charger 3.2 Operation Instruction Charge the battery pack fully before first time use. The charger will charge both battery packs at the same time. The charger is only suitable for the provided 3.7 V Lithium-ion batteries. There are three LED lights on the charger: green light for power connection and two red lights for the charge ports. -
Page 12: Power On/Off
3.2.1 Power On/Off To turn the device on, hold the On/Off button for one second and release when you hear the tone as well as feel the vibration. To turn the device off, hold the On/Off button for three seconds until the “turning off”... -
Page 13: Concentration Alarm Menu
3.2.3 Concentration Alarm Menu 3.2.5 Volume Setting Menu When the gas concentration exceeds the alarm threshold, the In normal status, press the “+” button to increase volume and “–” detector will give visual and audio alarms. The display will show button to decrease volume. -
Page 14: Spotter Laser Power On/Off
3.2.7 Spotter Laser On/Off 3.2.9 SIM Card The spotter will flash when you press the trigger and you can begin The detector can upload gas concentration information by GPRS. detection. The spotter will turn off and stop detecting after releasing Follow diagram 3-9 to install or uninstall the SIM card. -
Page 15: Battery Charging
• Charge in a dry and safe environment. • Do NOT use in temperatures above 50 °C • Remove charger from power socket when not charging. • Only use the charger provided by ICI to charge the battery packs to avoid damage and danger. -
Page 16: Measurement Method
4. Measurement Method 1. In order for the TDL 300 to detect a gas leak, three conditions 5. To determine the location of a gas leak, work the laser beam in a must be met: stable “S” pattern route back and forth to ensure the laser passes through the target area. -
Page 17: Maintenance
6. The TDL 300 can detect gas leaks from up to 30 m. Actual 2. If needed, clean the outer surface of the device with a clean cloth. - Page 18 System Fault Laser wavelength Reboot detector drift • Should you have a problem not listed or the solution does not Perform calibration work, contact ICI for further assistance. Contact ICI Low Battery Check, recharge, or change the battery Constant leak...
-
Page 19: Notes
7. Notes 8. Contact • The visible green spotter laser is a Class 3R Laser. Do NOT stare Infrared Cameras Inc. directly into the beam or point the beam into other people’s eyes. 2105 W. Cardinal Dr. Beaumont, TX 77705 •...
