Summary of Contents for Spreco SHARKY

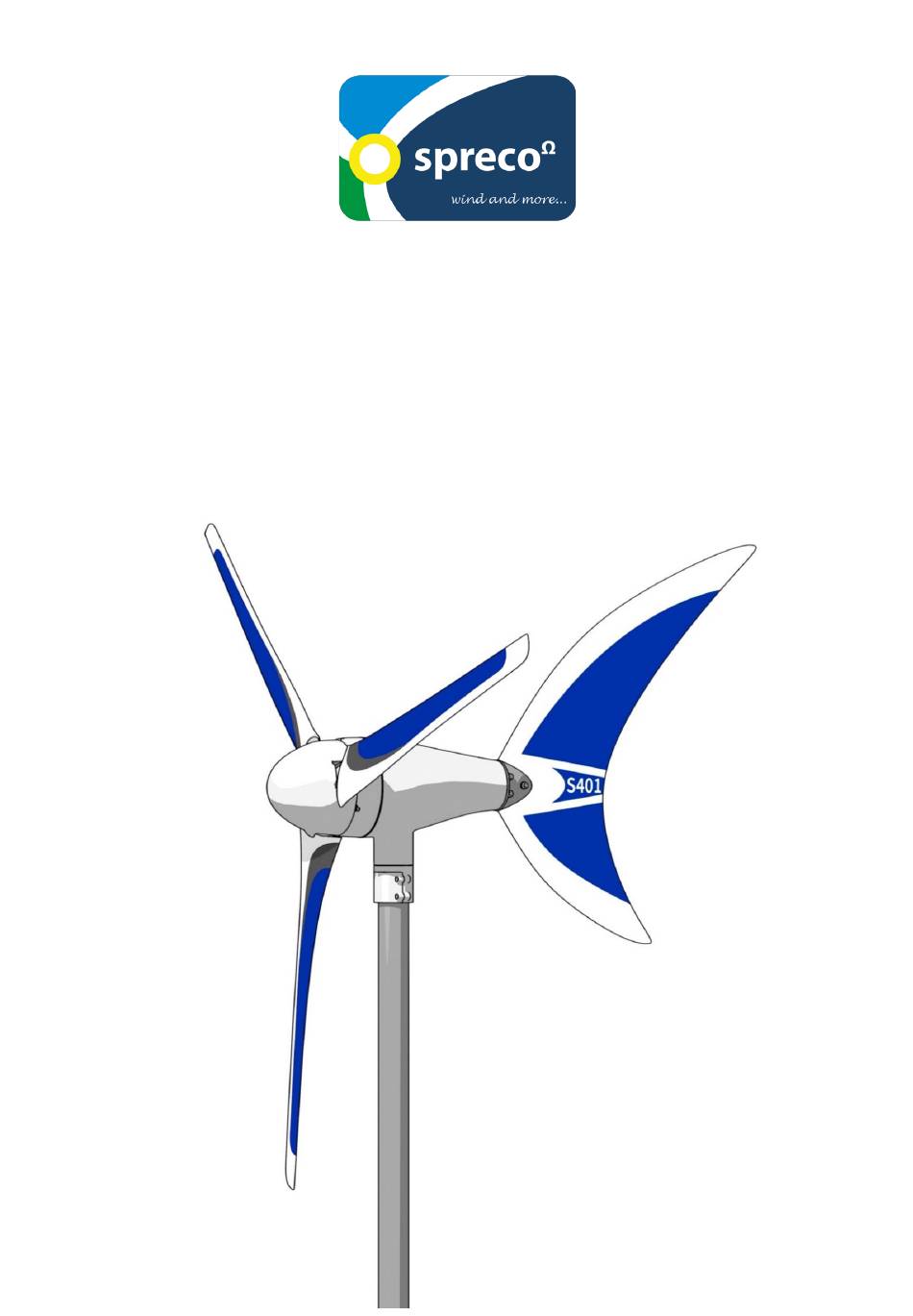

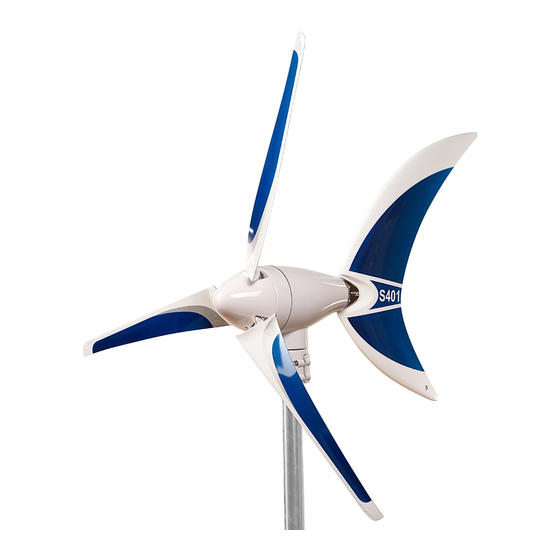

- Page 1 User and installation guide SHARKY 12V / 24V / 48V...
- Page 2 Dear customer! Congratulations on your decision to purchase the SHARKY S401. He is distinguished from conventional wind generators with high security, enormous efficiency and very low noise level over the entire range. You also benefit from our more than 30 years of experience with various wind generators used on the high seas (Silent Wind from Spreco on sailing boats).
-
Page 3: Table Of Contents
Index: 1. Use and area of application ........................4 2. Safety instructions ..........................5 2.1 Mechanical hazards ........................... 5 2.2 Electrical hazards ..........................5 2.3 Installation hazards ..........................6 3. Technical data ............................7 3.1 Wind generator ........................... 7 3.1.1 Electrical data ..........................7 3.1.2 Mechanical data .......................... -
Page 4: Use And Area Of Application
230 V inverter. Our wind generator is very efficient and aerodynamic. If the energy requirement is higher, several SHARKY S401 wind generators can be used in parallel. Due to the low noise level, the SHARKY S401 wind generator can be installed in residential areas and on sailing yachts without disturbing the neighbors. -
Page 5: Safety Instructions
2. Safety instructions Wind generators are due to the high speed and the voltage generated not harmless. Therefore, please read the following safety instructions with great care: 2.1 Mechanical hazards The rotating rotor poses a great danger. Above a certain wind speed, it even appears transparent so that the danger is not visually recognized. -
Page 6: Installation Hazards
It must be ensured that the electrical installation is only carried out by people with expertise. Before a storm, the SHARKY S401 should be braked using the stop switch built into the charge controller. In the event of an oncoming hurricane, it makes sense if a rotor blade is tied to the mast. -
Page 7: Technical Data
otherwise the charge controller may be destroyed. The electrical installation must be completed 3. Technical data 3.1 Wind generator 3.1.1 Electrical data Generator type Permanent magnet generator, 3-phase, Nominal voltage 12 V DC / 24 V DC / 48V DC with boost charge controller Rated capacity 450 Watt... -
Page 8: Charge Controller
Color White, poder coated - 2 layers Warranty 24 Months 3.2 Charge controller Charging criteria are set using the supplied external hybrid charge controller with boost function. The charge end voltage is adjustable for lead acid, gel, AGM, and lithium batteries. -
Page 9: Power Curve
3.4 Power curve 3.5 Dimensions... -
Page 10: Scope Of Delivery
4. Scope of delivery Generator, powder coated Fin, Carbon Nose cone, ABS Rotor blade, Carbon Boost charge controller Quick guide Screw set rotor blades Screw set Fin Allen key 4mm Allen key 5mm... -
Page 11: Functional Description
IAllen key 8mm All information is reliable. However, the manufacturer assumes no responsibility for inaccuracies or imperfection. The user of this information as well as the product bears full responsibility and risk. All specifications are subject to change without prior notice. 5. -
Page 12: Cable Sizing
6. Cable sizing System voltage 12 Volt: 0 - 9 10 – 19 20 – 29 30 – 44 45 – 69 70 – 110 Distance from wind generator to charge controller in m Cable cross section in mm2 0 - 9 10 – 19 20 – 29 30 – 44 45 – 69 70 – 110 Distance from charge Controller to Battery in m Cable cross section in mm2... -
Page 13: Assembly
System voltage 48 Volt: 30 – 79 80 – 99 100 – 150 Distance from wind 0 - 29 generator to charge controller / inverter in m Cable cross section in mm2 0 – 29 30 – 69 70 – 99 100 –... - Page 14 Stationary assembly: The required assembling height depends on how much the surrounding objects deflect the wind from his main direction. To do this, you can first carry out a simple experiment by attaching a plastic tape (approx. 3 m long and 4 cm wide) to a rod that is at least 4 m long, at the upper end and additionally attach a second tape two meters lower.
- Page 15 When the mast is installed in the correct location, the relatively simple assembly of the SHARKY S401 can begin. To do this, first mount the three carbon fiber blades with the respective screw set on the Hub. Note - The screws must be properly tightened (the tightening torque is 7 - 8 Nm.) Please see our videos in the...
- Page 16 The blades are balanced by the shape of the hub disc by the special type of manufacture (conical mount). An incorrect tightening torque represents a considerable safety risk. Check the rotor blades regularly for tightness, optically and mechanically! Should it happen that a blade is damaged by external influences, a single blade can be ordered by notifying the exact weight of the remaining good blades.
-
Page 17: Commissioning
The 3 wired cable must be short-circuited. Otherwise, the rotor can start running and cause injuries. If you remove the SHARKY S401 from the mast to replace the rotor blades, you must ensure that the blades do not start moving before you have finished the work (3 AC cable short circuit). - Page 18 Inspection O.K. Mast construction (not included); Check according to the enclosed instructions, in particular all screw connections, anchoring, vertical alignment. Earthing and lightning protection connected according to local regulations? Electrical installation: Check the condition of the battery and connect it to the charge controller with the correct polarity Charge controller: Is the charge controller securely attached to the installation site? (Choose...
-
Page 19: Start And Stop
Mast mounting: Is the damping rubber correctly screwed to the flange and checked for tightness? Rotor blades: Is the assembly carried out according to the instructions? Blade Hub: Is the hub mounted on the generator shaft? Has the central fastening screw been tightened to 30 Nm? If our charge controller is not used: Connection to the three-phase rectifier (optionally available from us in the shop) can be found in the package Leaflet. -
Page 20: Checks
11. Checks Your SHARKY S401 is designed to last for years without any maintenance. However, simple and regular checks are always part of it to ensure the necessary operational safety. Your safety is very important to us! Before you start the check, make sure that during all work on the system, the rotor is brought to a standstill and the battery is disconnected from the system. -
Page 21: Corrosion Protection
11.4 Corrosion protection All housing parts consist of a seawater-proof aluminum alloy and are additionally treated with a powder coating (2-layer structure). If this layer is damaged, there is a risk of corrosion. Please touch up with a suitable varnish. 11.5 Mast construction The mast should have an outer diameter of 48mm and a wall thickness of at least 2.5mm. -
Page 22: Maintenance
12. Maintenance There is no maintenance work on the SHARKY S401. The SHARKY S401 was designed for years of trouble-free operation. This goal was very important to us. 13. Troubleshooting You should be able to solve a problem yourself with the following checklist:... - Page 23 Fuse interrupted Check conductance of Replace fuse, or wait for fuse automatic circuit breaker to cool down Built-in Check carbon brushes and Replace carbon brushes, Current collector (slip springs in the housing make springs usable ring unit) has no contact Battery is not fully charged: Possible cause Test...
- Page 24 The company Bach Energiesysteme guarantees that all of the devices it sells have no defects in materials and workmanship within the warranty period from the time of purchase. The following warranty periods apply: SHARKY S401 24 Months BOOST charge controller 24 Months...
- Page 25 Otherwise, the "General terms of delivery for products and services of the electrical industry" apply in Germany. Name Adress Purchase date SHARKY S401 Serial Nr. Boost controller Serial Nr. Dealer Dealer Adress SPRECO Windgenerator Bach Energiesysteme Brand 74...
