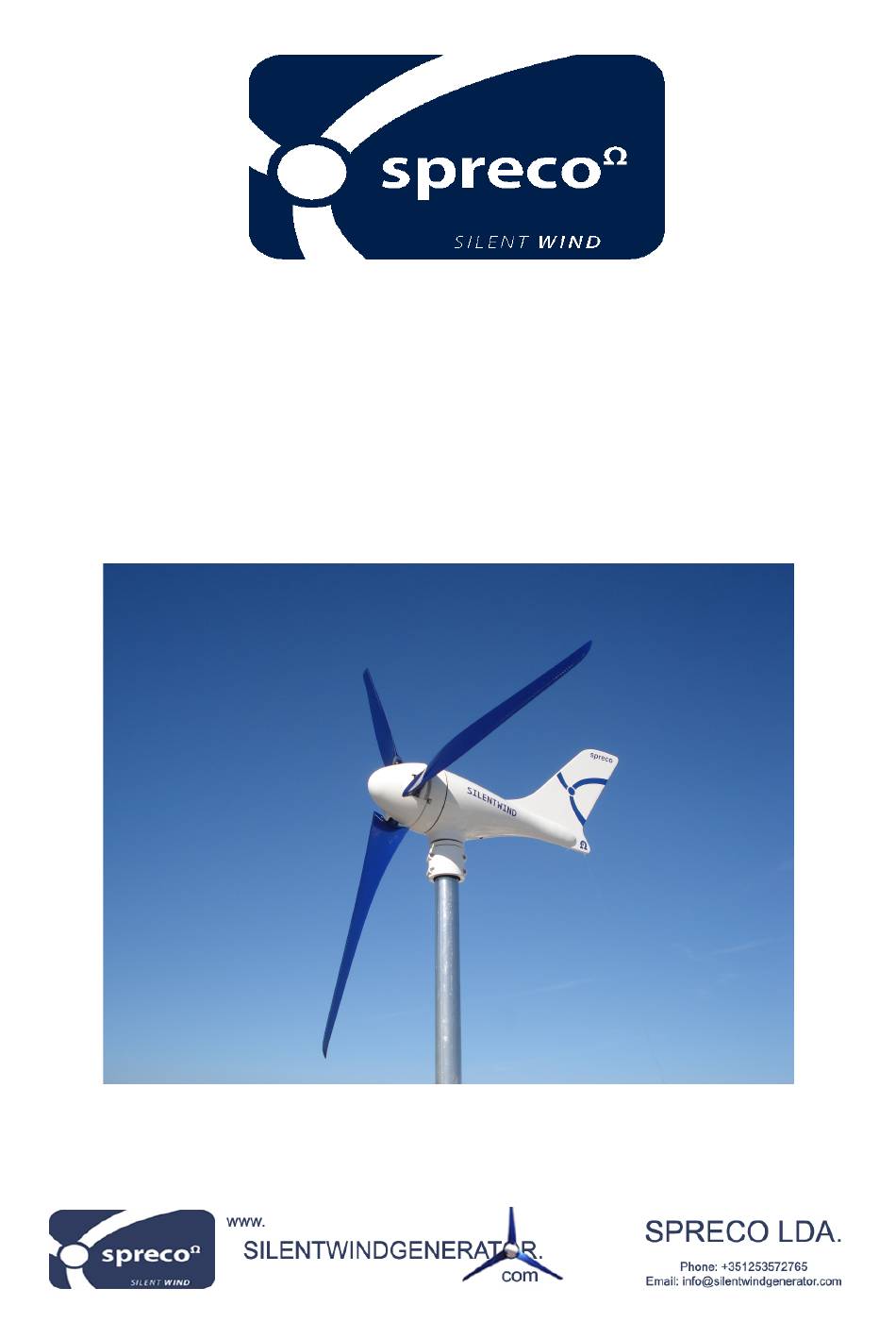

- Page 1 / installation manual SILENTWIND...
- Page 2 Silentwind generator. This manual should always be kept near the product and passed on to future owners. This manual is addressed to the person installing the Silentwind generator. This person should be familiar with electric wiring and the use of appropiate tools.
-
Page 3: Table Of Contents
Contents: 1. Operation and use 2. Safety instructions 2.1. Mechanical risks 2.2. Electrical risks 2.3. Installation risks 3. Technical data 3.1. Windgenerator 3.1.1. Electrical data 3.1.2. Mechanical data 3.2. Charge controller 3.2.1 Electrical data 3.2.2 Mechanical data 3.3. Dimensions 3.4. Power diagram 4. -
Page 4: Operation And Use
Our charge regulater is suitable both for 12 and 24 volt usage and can be connected to the Silentwind generator and solar panel. Another advantage of the Silentwind generator ist hat it does not have any inbuilt electronics which means that there is hardly any maintenance work on the mounted windgenerator. -
Page 5: Electrical Risks
The electrical installation should be carried out by persons with suitable skills who know what they do. Before a storm the Silentwind generator should be manually stopped with the stop switch on the charge regulator. In case of storms we... -
Page 6: Installation Risks
2.3. Installation risks Only use mounting constructions that can take the load of the generator and the blast pressure of the wind in any condition. Working on the mounting unit should only be carried out on a calm day. Make sure that nobody is close to the mast. -
Page 7: Mechanical Data
3.2.1. Electrical data System voltage 12/24 VDC Max. input current windgenerator 30 A Max. input current solar 10 A ( 100Wp) LCD + LED displays W, V, A, kWh, Ah, load data 3.2.2 Mechanical data weight 1,15kg (regulator) Package dimensions 190x120x65mm Warranty 24 months... -
Page 8: Power Diagram
3.4. Power diagram 4. List of enclosed parts All information is reliable. The producer does not take any resonsibility for inaccuracies. The user of both the instructions and the product takes any responsibility and any risk. All specifications are subject to change without notice. -
Page 9: Operation Description
Cabel diameter in mm 7. Installation Before mounting the Silentwind generator onshore find a suitable position fort he windgenerator. It is an ideal position if the wind flows against the blades without any obstructions. This means that the generator is mounted as high as possible. The height depends on the distraction of the wind by surrounding objects. - Page 10 Once the mast is mounted you can start the relatively simple installation of the Silentwind generator. First connect the 3 CF blades to the assembly hub (see page 17, sketch 4) with the enclosed srews (page 18, sketch 9). The enclosed nylon discs protect against electrolytic corrosion.
-
Page 11: Getting Started
Otherwise the rotor system may start running and you can get injured. At last you mount the Silentwind generator to the mast. Fix the 4 hexagon screws to the yaw clamp after having put in the rubber pad (see page 18, sketch 8) 8. -
Page 12: Run And Stop
Switch the enclosed stop-switch or the stop-switch of the charge regulator in position run. If the wires are correctly connected to the battery (without having mixed up the polarity) the Silentwind generator should start charging if windspeed is sufficient. You can control this on the LCD-display of the charge regulator. -
Page 13: Blades
Check this construction in line with the instructions concerned (optional). 11.6 Electrical system Please first stop the Silentwind generator so that all wires carry no voltage. Check if all connections are properly fixed and not corroded. Possible corrosions must be removed and treated with contact spray. -
Page 14: Maintenance
12. Maintenance Maintenance of the Silentwind generator is not necessary. The Silentwind generator is produced for troublefree long-term use. 13. Troubleshooting In case of problems, however, these can be easily solved. Windgenerator doesn´t start to run: Possible Cause Test Solution... - Page 15 Battery is not fully charged: Possible cause Test Solution Old, damaged battery Test battery status and Replace battery refill deficient liquid of every battery destilled water (not necessary for Gel oder AGM) Fuse gone Check fuse Replace fuse, find cause of deficiences Charge regulator wrongly Check in line with manual...
-
Page 16: Attachment / Sketches
14. Attachment / sketches sketch 1 sketch 2 sketch 3... - Page 17 sketch 4 sketch 5 sketch 6 sketch 7...
- Page 18 sketch 8 sketch 9 sketch 10 sketch 11...
-
Page 19: Warranty
Charge regulator W + S 1 24 months If material or processing defects are detected in this period, Spreco Lda. will repair the appliance or replace broken parts of the appliance at their expense. Guaranty is only provided if the warranty note (page 21) is filled in properly and the original invoice can be presented. - Page 20 Notice:...
-
Page 21: Warranty Note
16. Cerificate of guarantee ------------------------------------------------------------------------------------------------------------- Guarantee Name und Anschrift des Käufers / Name and address of the purchaser: Seriennummer Windgenerator / Serialnumber windgenerator: Seriennummer Laderegler Serialnumber charge controller: Verkäufer (Firmenstempel / Unterschrift) / Purchaser (company stamp / signature): Kaufdatum / date of purchase: Die genauen Garantie-Bedingungen finden Sie in der Gebrauchsanweisung auf Seite 19.
