inVue Plunger Lock II Instruction Manual

Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
Plunger Lock II
PL202

Advertisement

loading
Need help?

Need help?

Do you have a question about the Plunger Lock II and is the answer not in the manual?

Questions and answers

Related Manuals for inVue Plunger Lock II

Summary of Contents for inVue Plunger Lock II

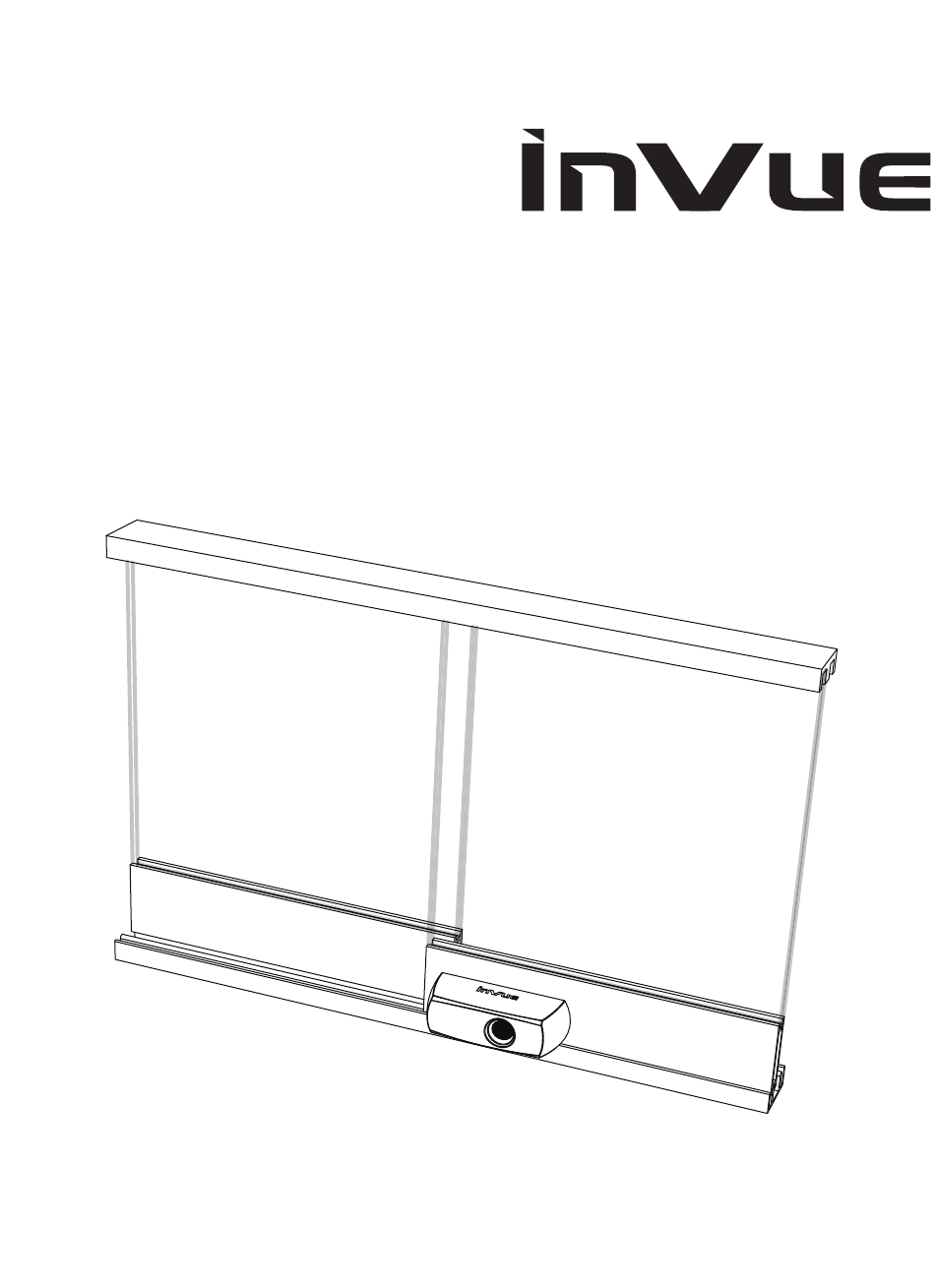

  • Page 1 Plunger Lock II PL202...
  • Page 2 (0.88”). Reference cabinet requirements on page 5. Cabinet Specification Panels can be wood or metal framed glass. System Components 1. Plunger Lock II (PL202) 2. IR2 Key (PK4400) Setup in 5 easy steps: 1. Gain access to front and back of front panel and hole Plunger Lock II 2.

  • Page 3: Cabinet Requirements

    CABINET REQUIREMENTS CABINET REQUIREMENTS X = Total Plunger Length = 23 mm (0.92”) Y = Panel Thickness + Panel Gap must be 20.5 mm (0.79”) or less Z = Metal Frame or Wood Panel Thickness: 8 mm – 12 mm (0.31” – 0.47”) 3 mm (0.12”) Plunger II Lock 22 mm/0.86”...
  • Page 4 Determine if front panel is on right or left hand side. Make sure lock is unlocked using IR2 Key. Slide Note: The illustrations in this booklet are for right Plunger Lock through hole in front panel. front panel orientation. For a left front panel cabinet install lock in opposite direction.
  • Page 5 Rotate back plate until holes on back plate align and Using screws provided, alternate tightening screws to seat with screw holes on Plunger Lock. ensure proper fit. Note: #1 Phillips screwdriver with magnetic tip recommended. Back Plate...
  • Page 6 Using wood or metal screws provided, tighten back Close cabinets before testing lock operation. plate onto panel. Note: If drilling is required, use a 3/32” drill bit.
  • Page 7 LOCK STATUS INDICATORS Position IR2 Key against lock, push button and wait for “beep” before removing key. Lock and unlock product several times to ensure proper operation. IR2 Key must be charged and activated. See IR2 Key Locked instruction guide. Hold until you get a confirmation “beep.”...
  • Page 9 Corporate Office (North America) // 704.752.6513 • 888.55.INVUE Europe, Middle East & Africa // +31.23.8900150 Asia Pacific // +65.6766.4844 Latin America // +52.55.9000.3957 © 2012 InVue Security Products Inc. All rights reserved. InVue is a registered trademark of InVue Security Products.

This manual is also suitable for:

Pl202
