Summary of Contents for Devine Blist Live

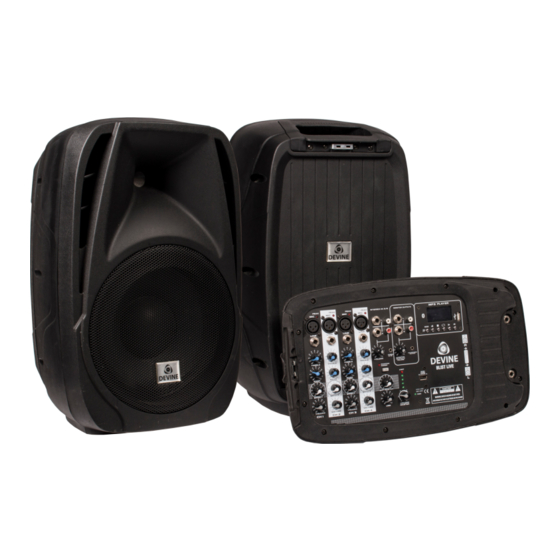

- Page 1 Blist Live Portable powered speaker system User manual Any information and illustrations shown in this user manual are subject to change without further notice. User manual version: 2.0 Creation date + author initials: 29-09-2015 RV Revision date + author initials: 18-02-2017 RV...
-
Page 2: Safety Instructions
Safety instructions WARNING! Always keep this device away from moisture and rain! Hazardous electrical shocks may occur! WARNING! Only connect this device to a matching power outlet. This device is intended to work on a specified AC currency. Connecting this device to power outlets with other voltages may result in permanent damage and possible hazardous situations, such as fire or electrical shocks! WARNING! Be careful with every operation of this device. - Page 3 - Familiarize yourself with the functions of the device before use. Do not allow operation of the device by unskilled or unqualified people. - Use of the device in other ways than described in this user manual may cause damage and injury. Devine can not be held responsible for any damage or injury caused by improper use.
- Page 4 are loose. - Do not use the power cord if the cores are visible. Contact your dealer for a replacement if needed. - Avoid the buildup of dust and dirt. Clean the exterior of the fixture every month with a dry or damp cloth. When using the device intensively, the cleaning frequency needs to be increased.
- Page 5 Indoor use only: This device is designed to only be used indoor. The maximum ambient temperature should not exceed 40 degrees Celsius (104 degrees Fahrenheit) Contact: Devine pro audio and studio products Verrijn Stuartweg 18 4462 GE Goes The Netherlands Please do not send any products directly to this address.
- Page 6 Guidelines for speakers WARNING! This loudspeaker system is capable of producing a sound pressure level which can be harmful for humans and animals when used incorrectly and/or without protection. Possible permanent hearing loss may occur when humans or animals are exposed to high sound pressure levels, even during a small period of time.
-
Page 7: Box Contents
Box contents Box contents: 1x Blist Live speaker with powered mixer panel attached 1x Blist Live speaker with accessory compartment attached 1x power cable IEC C14 to Schuko (inside compartment) 1x power cable IEC C14 to UK (inside compartment) 2x dynamic microphone (inside compartment) 2x speaker cable (inside compartment) 2x XLR 3p male –... -
Page 8: Product Overview
Product overview Mixer panel 1. 3P XLR balanced microphone input 2. 6.35 mm mono TS jack line input 3. Red peak LED for each mono channel 4. EQ section: Treble adjustment (+/- 6dB) 5. EQ section: Bass adjustment (+/-6 dB) 6. - Page 9 MP3 functions: - Mode switch button (ON/OFF function when held for 2 seconds) - Play/pause button - Stop button - Loop mode button - Previous button (also used for audio forward when held for 2 seconds) - Next button (also used for audio rewind when held for 2 seconds) - USB input for USB drives (up to 32 GB) - Bluetooth audio pairing with any device capable of sending Bluetooth audio - Clear, bright display...
- Page 10 Use of the PA system If you want to set up the system, follow the next steps to ensure that you connect all elements of this product properly. 1. The unit exists of the following parts: – Speaker (2x) – Rear compartment for cables (installed on the speaker) –...
- Page 11 needed. Also use your ears to check wether the speakers are producing a distorted sound. If so, decrease the volume level of the speakers with the mixing panel's master volume. – Use the USB player to play music from USB devices, such as small hard disks or USB thumb drives. This makes it possible to provide background music or playback music during performance.
- Page 12 It is also possible to use the included speakers of Blist Live for monitoring, while another (larger) speaker set is connected as your main PA system. – The Bluetooth system included in the MP3-player, is a great way to send music from your wireless device to your mixing panel.
- Page 13 Powered speaker troubleshooting If you have any problems with active speakers, consult this troubleshooting section to solve any difficulties with your product. If this troubleshooting section does not solve your problem, contact your dealer for more information and help. This troubleshooting section contains the most frequent problems and is not a complete collection of possible faults, defects and solutions.
- Page 14 CLIP limiter indicator keeps on CLIP limiter circuit is active to Decrease volume settings (signal flickering or is constantly lit prevent overloading of internal source, signal source on mixer components panel or master volume) Also try to set Treble and Bass to normal levels.
-
Page 15: Technical Specifications
Technical specifications - self-powered portable PA system - consists of two portable speakers, with an accessory compartment and mixing panel attached - easy to set up, easy to use - quick reference sticker for inputs on compartment lid - compact system with two 10 inch durable speaker enclosures - mixing panel with integrated power amplifier Mixing panel features: - 4 mono inputs with Peak LED indicator...
