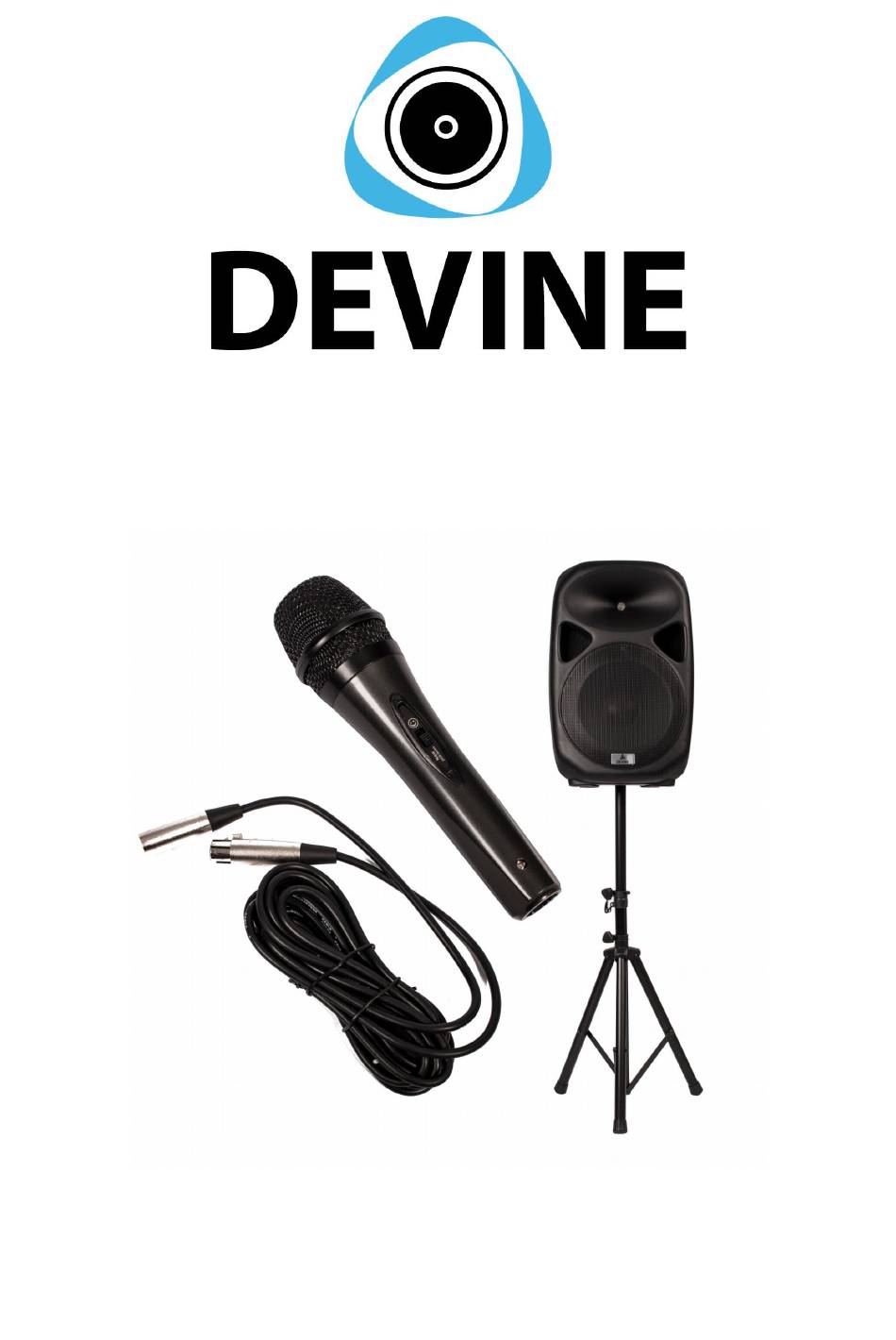

- Page 1 MOH 15A Powered speaker kit with accessories User manual Any information and illustrations shown in this user manual are subject to change without further notice. User manual version: 1.0 Creation date + author initials: 17-06-2015 RV Revision date + author initials:...
-
Page 2: Safety Instructions
Safety instructions WARNING! Always keep this device away from moisture and rain! Hazardous electrical shocks may occur! WARNING! Only connect this device to a matching power outlet. This device is intended to work on a specified AC currency. Connecting this device to power outlets with other voltages may result in permanent damage and possible hazardous situations, such as fire or electrical shocks! WARNING! Be careful with every operation of this device. - Page 3 - Familiarize yourself with the functions of the device before use. Do not allow operation of the device by unskilled or unqualified people. - Use of the device in other ways than described in this user manual may cause damage and injury. Devine can not be held responsible for any damage or injury caused by improper use.
- Page 4 are loose. - Do not use the power cord if the cores are visible. Contact your dealer for a replacement if needed. - Avoid the buildup of dust and dirt. Clean the exterior of the fixture every month with a dry or damp cloth. When using the device intensively, the cleaning frequency needs to be increased.
- Page 5 Indoor use only: This device is designed to only be used indoor. The maximum ambient temperature should not exceed 40 degrees Celsius (104 degrees Fahrenheit) Contact: Devine pro audio and studio products Verrijn Stuartweg 18 4462 GE Goes The Netherlands Please do not send any products directly to this address.
- Page 6 Guidelines for speakers WARNING! This loudspeaker system is capable of producing a sound pressure level which can be harmful for humans and animals when used incorrectly and/or without protection. Possible permanent hearing loss may occur when humans or animals are exposed to high sound pressure levels, even during a small period of time.
-
Page 7: Box Contents

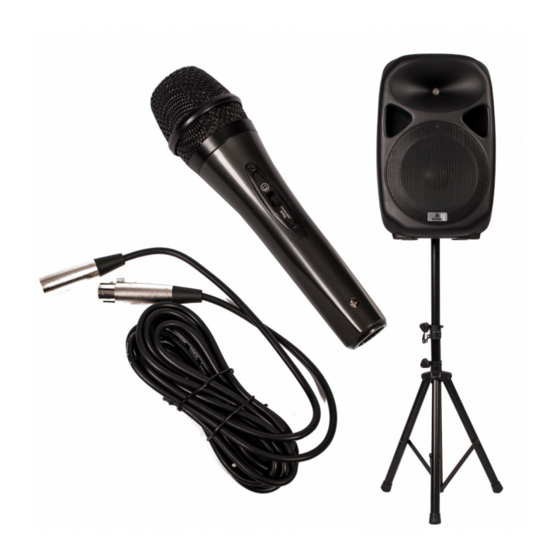

Box contents Box contents: 1x Devine MOH 15A speaker 1x dynamic microphone with microphone cable 1x telescoping speaker stand 1x remote control 1x power cable IEC C13 to Schuko 1x power cable IEC C13 to UK Unit and accessory inspection - Always use the supplied power cable to connect the unit to a power supply. -
Page 8: Product Overview
Product overview 1. MP3 player 2. Volume control channel 1 3. Balanced microphone input (6.35 mm TS jackplug) 4. Balanced microphone input (XLR 3p) 5. Volume control channel 2 6. Line input (3.5 mm TRS mini-jackplug) 7. Line input stereo RCA 8. - Page 9 Use of the speaker When using use the MOH 15A for lots of different purposes, it is important to be aware of all the functions and options of the unit. This section reveals all kinds of information which you can use to use the MOH 15A optimally.
- Page 10 FM radio The integrated FM radio of the MOH 15A makes it possible to listen to FM radio frequencies, starting at 87.5 MHz. With the included remote or the menu buttons on the speaker, you are able to change radio stations. It is also possible to create up to 30 radio presets, based on the strongest FM radio signals which can be found by the integrated player and antenna.
- Page 11 The MOH 15A can be used with regular speaker stands which usually have a diameter of around 35 mm (or a value which is very close to this), such as the included speaker stand. Before placing the speaker on a stand, loosen the tightening knob so it will not interfere with the speaker stand.
- Page 12 Powered speaker troubleshooting If you have any problems with active speakers, consult this troubleshooting section to solve any difficulties with your product. If this troubleshooting section does not solve your problem, contact your dealer for more information and help. This troubleshooting section contains the most frequent problems and is not a complete collection of possible faults, defects and solutions.
- Page 13 components panel or master volume) Also try to set Treble and Bass to normal levels. Speaker can not be placed on a Tightening knob is turned too tight Loosen tightening knob speaker stand Stand not suitable Measure stand top diameter, this should be around 33-36 mm for optimal placement.
-
Page 14: Technical Specifications
Technical specifications - Self-powered PA speaker kit with one powered speaker, microphone, speaker stand and cables - built-in power amplifier - built-in MP3 player with Bluetooth connectivity, SD card and USB drive support - lightweight construction - wide projection dispersion horn for optimal wide audio coverage - built-in audio mixer, for microphones and line-level audio sources - line output for speaker daisy-chaining - elegant moulded housing with rounded edges for a clean look...
