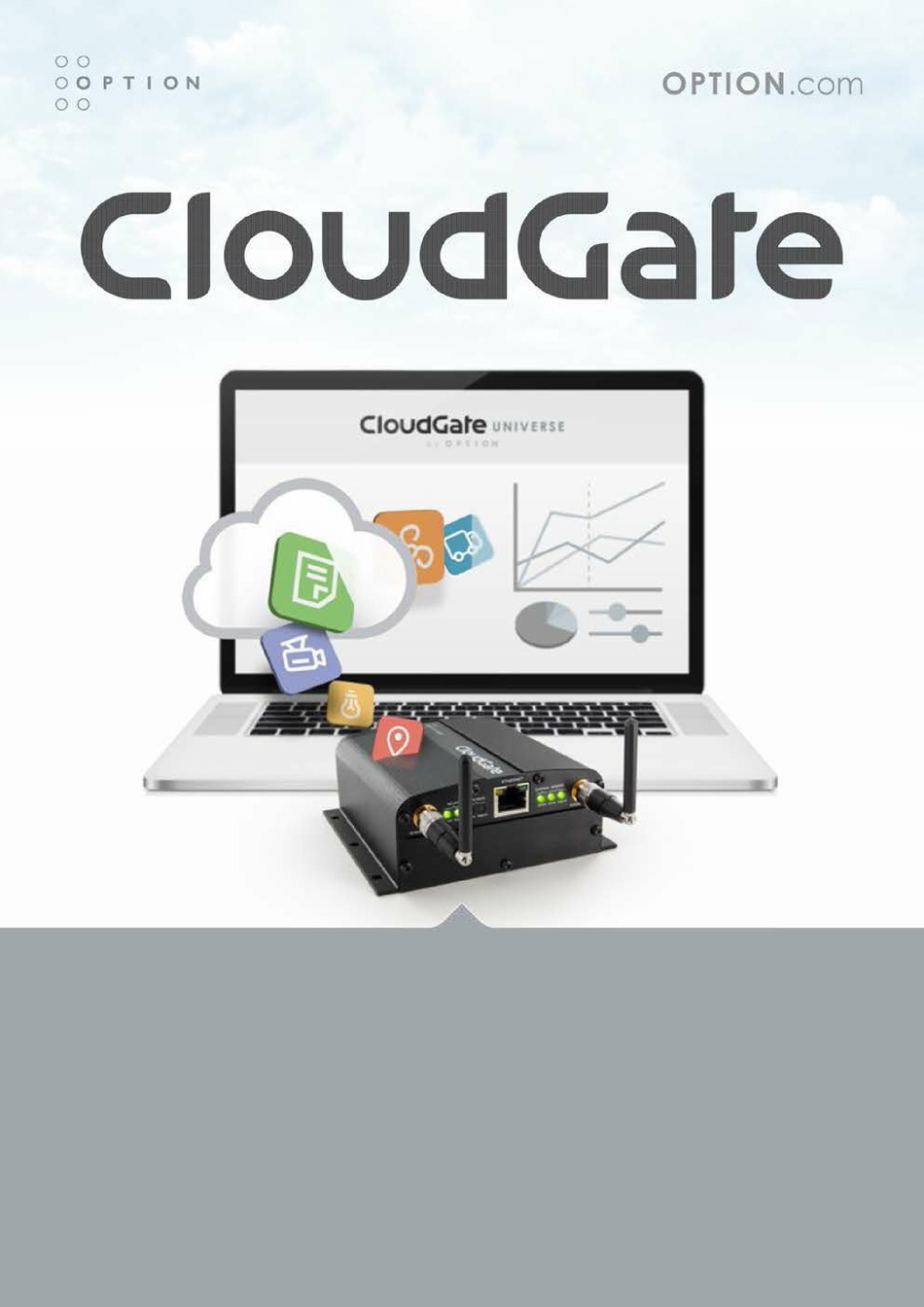

  • Page 1 CloudGate User Guide CloudGate LTE WW Rev 4 (CG0124)

  • Page 2: Table Of Contents

    Table Of Content 1. CloudGate LTE WW Rev 4 (CG0124) ..................3 1.1. Main Board ......................... 5 1.2. Front and Back View ......................6 1.3. LED Indicators ........................8 1.4. Ethernet Interface ......................10 1.5. Power Requirements ......................12 1.6. Micro SIM Card Interface ....................

  • Page 3: Cloudgate Lte Ww Rev 4 (Cg0124)

    Model: CG0124 Last updated on 13/09/2019 The CloudGate LTE WW Rev 4 is a 4G multiband M2M gateway providing internet connectivity at LTE Cat 3 data rates. Customs code (used for shipping) for CloudGate LTE WW Rev 4 is 8517620090.
  • Page 4 A more detailed hardware description can be found in the corresponding subsections. A datasheet of the CloudGate LTE WW Rev 4 can be found here. The CloudGate LTE WW Rev 4 has two expansion card slots that allow to insert a variety of expansion cards.

  • Page 5: Main Board

    1.1.1. Main Board The CloudGate LTE WW Rev 4 is designed around a main board and a 4G WWAN module. The processor on the main board controls all the interfaces. The WWAN module provides the wireless connectivity to to the internet.

  • Page 6: Front And Back View

    1.2. Front and Back View The CloudGate Base Unit is assembled in the top half of the device. The bottom half is available to insert expansion cards. The front and back side of the CloudGate housing are closed by means of metal panels that are secured with Torx T10 screws.
  • Page 7 Expension Card slot Front Card Back View Power connector 9-33 VDC Micro-Fit 3.0, dual row, 4 circuits Reset button The explanation on how to use the reset button is written down here Expansion Card Slot Back Card Behind the top back panel there is a socket for insertion of a SIM card. Please also refer to the section about the SIM Card Interface for more details.

  • Page 8: Led Indicators

    4G >= -104dbm & < -94dbm when connected to 3G Green: good signal strength (>= -94dbm) Special LED functions: During a software download from CloudGate Universe When the CloudGate is downloading new firmware from the CloudGate Universe the...
  • Page 9 Red: The download was not successful. During the bootup process When the CloudGate is booting up, the System State LED behaviour is different compared to normal behaviour. In this situation the System State LED flashes red and orange. This process is expected behavior and can take up to a minute.

  • Page 10: Ethernet Interface

    CloudGate CG0124 has two ethernet ports located on the front side. When looking at the device, the left port is WAN (DHCP) and the right port is LAN. Following specs are for both ports. Ethernet Interface RJ-45 receptacle tab on top...
  • Page 11 RX/TX- Not used Not used IMPORTANT: The auto-MDIX feature is always activated on the CloudGate. This feature automatically detects the required cable connection type (straight or crossed), and configures the connection appropriately, removing the need for crossover cables. In order for auto-MDIX to work correctly, auto-negotiation (auto speed and auto duplex) must be enabled on both sides of the link.

  • Page 12: Power Requirements

    Option recommends to use a power cable that has a wire thickness of 22 AWG! SAFETY WARNING This CloudGate operates on DC power provided by a DC power supply or by an AC power adapter. Only use power supplies in the range 9-33V DC and make sure the product is installed near a power outlet that is easily accessible.
  • Page 13 Power Connector The power connector is a Micro-Fit connector from Molex (MX-43025-0400) Power Connector Drawing (PDF) Power Connector Datasheet (PDF) Pinout The following drawing shows the pinout of the power connector, seen from the terminal side. Pin # Function Input voltage Ignition sense input Not connected Ignition sense...
  • Page 14 CloudGate distributor. If the fifth digit of the serial number of the CloudGate is a "C", the CloudGate is an older model and susceptible to this remark. If the fifth digit is not a "C", the fuse of your...
  • Page 15 ISO7816 IC card standard. The 3GPP standard defines three operational voltages for the supply voltage of the SIM card: 1.8V, 3V and 5V. The CloudGate supports two voltages: 1.8V and 3V. The 5V-only SIM cards are rarely used and are not supported by the CloudGate.

  • Page 16: Micro Sim Card Interface 1.7. Environmental Specs

    Environmental Specifications Operating temperature: -30°C to 70° (*) see Safety Warning below Storage temperature: -40°C to 85°C Humidity operational: 5% - 95% non condensing Operating altitude: up to 2000m Operating temperature with Li-Ion battery: -20°C to +60°C (discharging) and 0°C to +45°C (charging) Safety Warning When the device is installed in a location where the environmental temperature can...
  • Page 17 Click here to download the RED EU Declaration of Conformity. EU Regulatory Compliance Information The CloudGate is constructed in such a way that it can be operated in the Member States of the EU without infringing applicable requirements on the use of the radio spectrum.
  • Page 18 The CloudGate 4.0 LTE WW carries the CE mark and can be used in Switzerland. Canada The CloudGate 4.0 LTE WW (CG0124) can be used in Canada and complies with the applicable Industry Canada regulations. The product completed PTCRB certification.
  • Page 19 To comply with Industry Canada regulations limiting both maximum RF output power and human exposure to RF radiation, maximum antenna gain must not exceed: GSM: 7.44 dBi in band 850 MHz 10.19 dBi in band 1900 MHz CDMA: 8 dBi in band 2 5 dBi in band 4 8.26 dBi in band 5 LTE:...
  • Page 20 20 cm minimum entre le corps de l’utilisateur et les antennes. United States The CloudGate 4.0 LTE WW (CG0124) can be used in the USA and complies with the applicable FCC rule parts. The product completed PTCRB certification and will be approved by the following...
  • Page 21 AT&T USCellular The CloudGate 4.0 LTE WW (CG0124) CANNOT be used in Class I Div 2 Hazardous Locations. Click here to download the FCC Declaration of Conformity. FCC REGULATIONS This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:...
  • Page 22 To comply with FCC regulations limiting both maximum RF output power and human exposure to RF radiation, maximum antenna gain must not exceed: GSM: 8.6 dBi in band 850 MHz 10.19 dBi in band 1900 MHz CDMA: 8 dBi in band 2 5 dBi in band 4 9.42 dBi in band 5 LTE:...

  • Page 23: Last Gasp Battery

    Last Gasp Battery CloudGate LTE 4.0 supports the possibillity to add a so called "last gasp" battery. This battery does not provide power to all interfaces and is only meant to track power loss and to shut down in a clean way.
  • Page 24 Part Description Compability Notes Card CG2102-11994 WLAN II expansion Card CG2111 Monnit applies to all Monit/Alta cards CG2123 LoRaWAN applies to all Lora cards...
