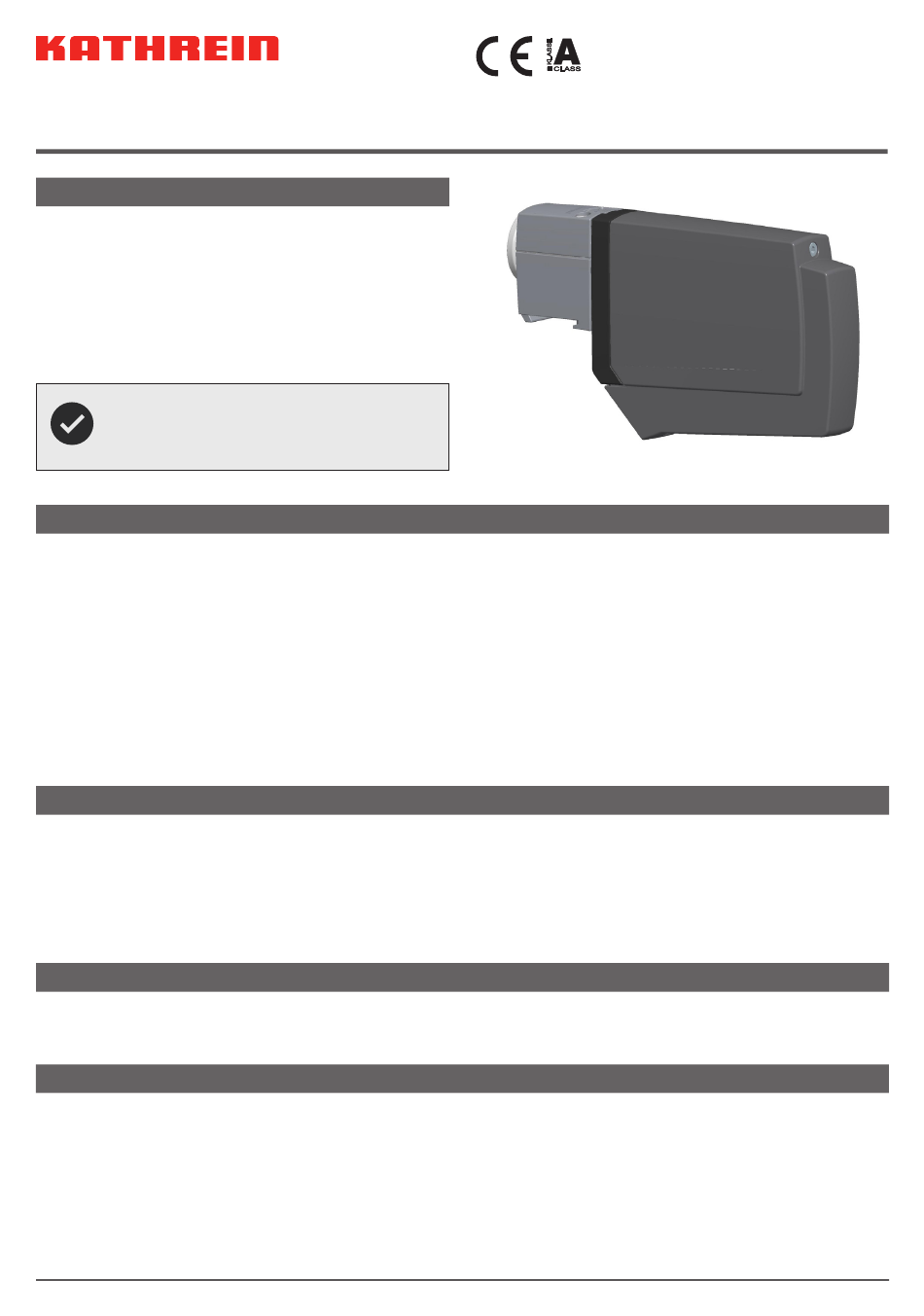

Kathrein UAS 582 Manual

Universal Wideband feed system 10,70-12,75 GHz
About this Guide
This document is part of the product.
► Read these instructions for use before the initial use of
the antenna set.
► Perform all operating steps described in the manuals
in the specified sequence.
For the most up-to-date version of this document, go to
www.kathrein.com.
Keep these instructions for future reference.
Pass them on to any new owners when
selling or transferring the unit.
Features
Universal Wideband feed system with 2 outputs
■
Suitable for Kathrein offset parabolic antennas, type CAS.. (60, 80, 90, 120 cm Ø)
■
For reception of satellites in the Ku band, such as ASTRA, EUTELSAT and TürkSat
■
50% less cable material required: To receive one satellite, only two cables from the LNB to the wideband multiswitch
■
are required, with Multifeed, two satellites can be received with just four cables
Energy saving - only max. 1,2 W power consumption
■
The feed system complies with ASTRA specifications for universal Wideband feed systems
■
Power supply via coax cable
■
■ Multifeed-suitable due to compact design
■ Full protection of LNB and cable connections in a ventilated housing, protection category IP 54
Scope of Delivery
UAS 582
■
2 x F-type plug
■
Allen wrench
■
■ Azimut-/elevations table
■ Instructions for use
Transport and Storage
► Transport and store the device in its original packaging.
► Make sure there is no water condensation build-up.
Intended Use
► The device described is designed solely for the installation of satellite receiver systems and may only be installed by
trained specialist personnel.
► The UAS 582 feed system may only be mounted to the listed Kathrein parabolic antennas.
► If it is used in any other way or if the provisions of this document are disregarded, the guarantee and warranty will
become void.
► The manufacturer is not liable for accidents caused by the user on the opened device.
► Unauthorized opening and repair attempts lead to the loss of the warranty claim.
1 / 8
UAS 582 20110032
